System expansions
30
A26361-K680-Z122-1-7619, Edition 1
Installing and removing a board
!
Please take note of the section "Information about boards".
The number, position and arrangement of the board slots on the mainboard can be found in the
technical manual for the mainboard. Boards may already be installed when the device is shipped.
You can fix boards in two ways:
● with
screws
●
with the clip

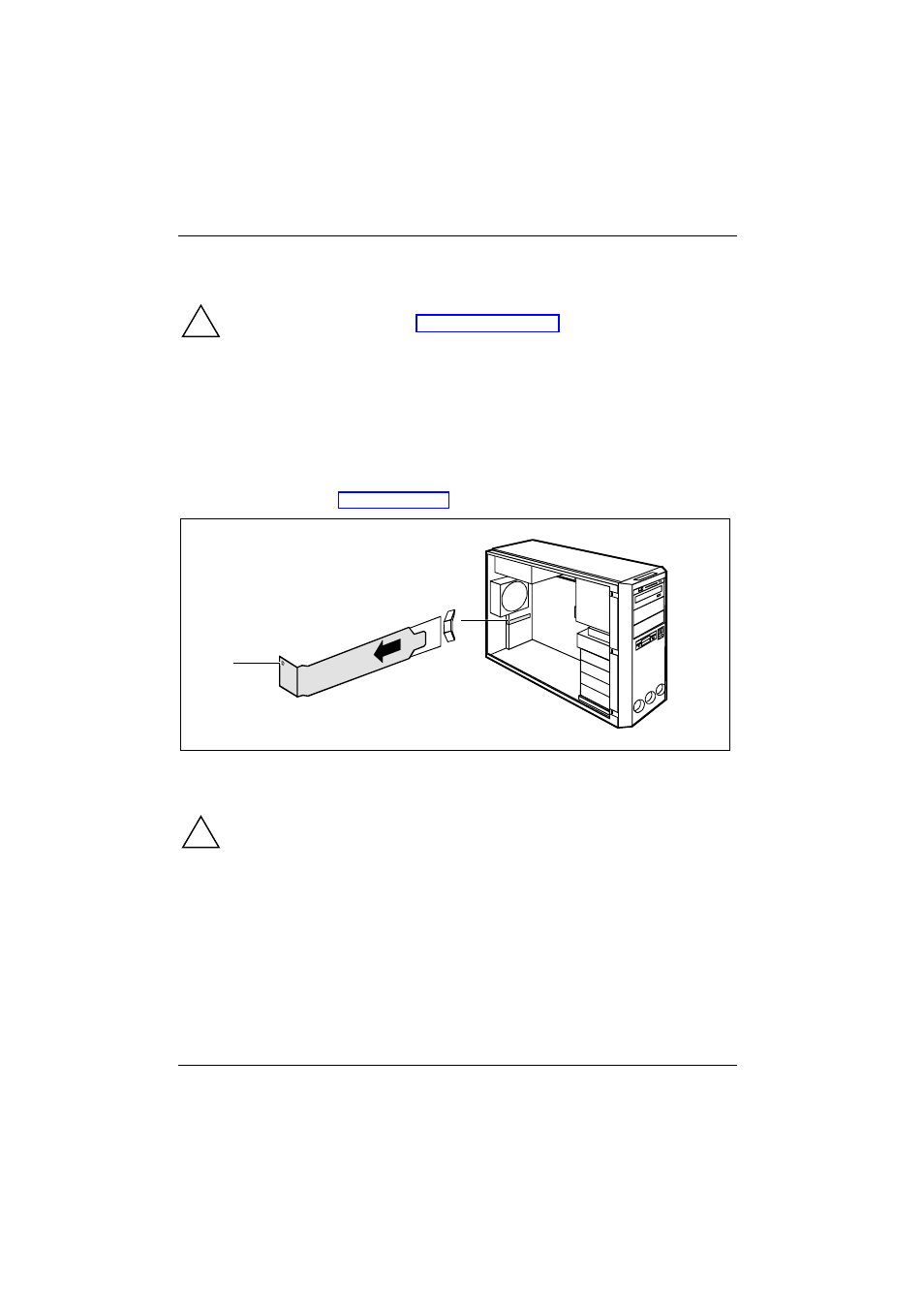

Installing board with screw
►
Open the casing (see "Opening the casing" chapter).
1
2
►
Loosen the screw (1).
►
Remove the rear slot cover plate from the slot (2).
!
Do not dispose of the cover plate. For cooling, protection against fire and in order to
comply with EMC regulations, you must refit the cover plate if you remove the board.
►
Make the required settings for the board.
