33
ENGLISH

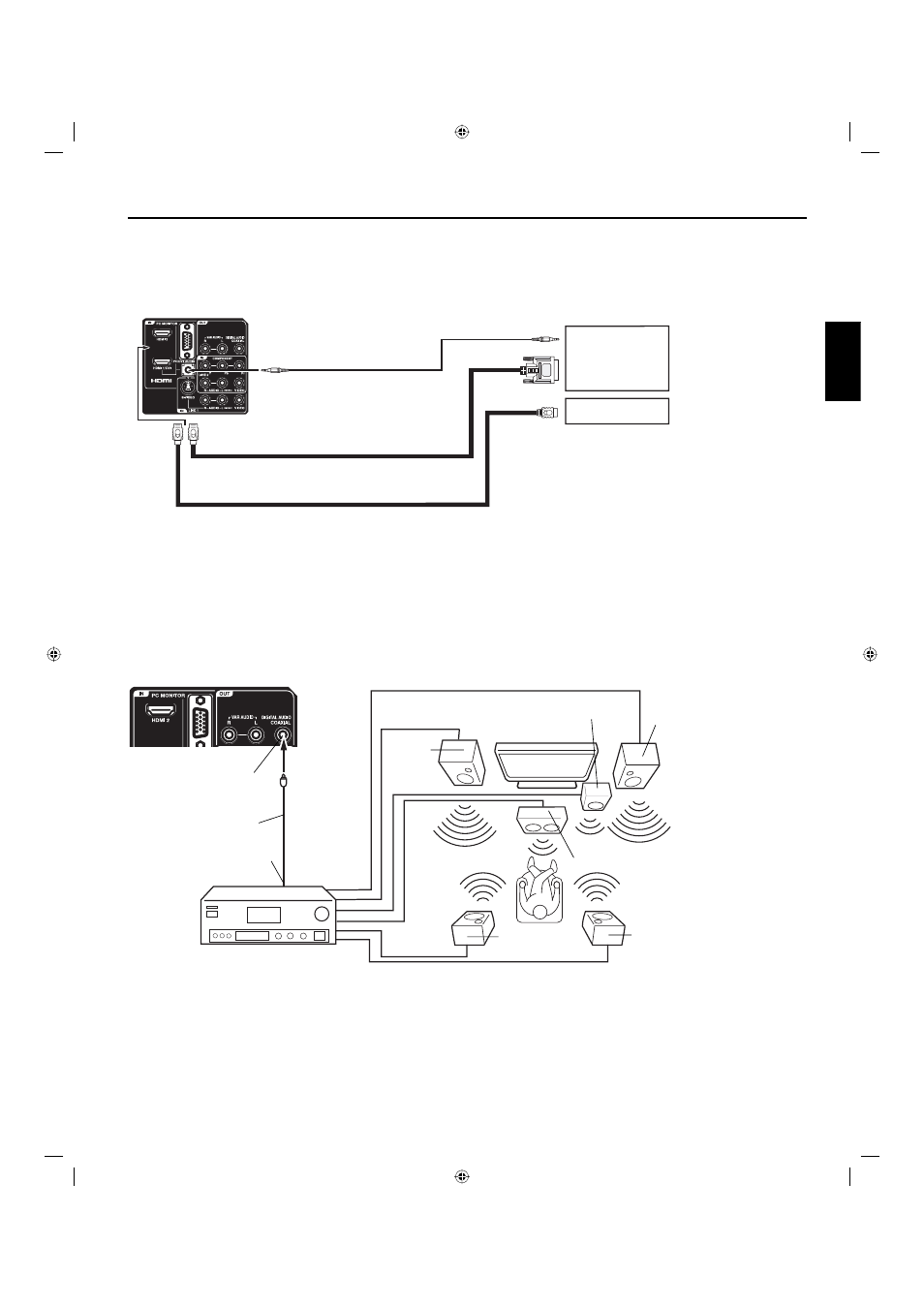

To connect a HDMI or a DVI device to the unit
The HDMI 1 input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cables are
required.
Connections to other equipment (continued)
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround
audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder etc. as shown below.
Rear of the unit
Coaxial digital cable
(not supplied)
AV Amplifier with built-in digital surround
decoder as listed above
Center Speaker
Digital Audio
Coaxial Output
To Coaxial
Digital Audio Input
Rear of the unit
Front
Speaker
(Left)
Front
Speaker
(Right)
Subwoofer
Surround
Speaker (Left)
Surround
Speaker
(Right)
TV/BD
NOTE:
When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio. There will be no sound output if
connected to an AV amplifier with a built-in DTS decoder.
•
HDMI - to - DVI adapter cable
(HDMI type A connector)
(not supplied)
Audio cable (not supplied)
HDMI cable (type A connector)
(not supplied)
To DVI output
To HDMI out
HDMI device
DVI device
To HDMI1/DVI
IN or HDMI2 IN
To PC/DVI
AUDIO IN
NOTE:
When using HDMI 1/DVI to connect your HDMI or DVI devices, you must select the corresponding audio input source
(HDMI or DVI) on the menu screen (see page 18). Otherwise you will only see the image with no sound.
•
or
To HDMI1/DVI IN
