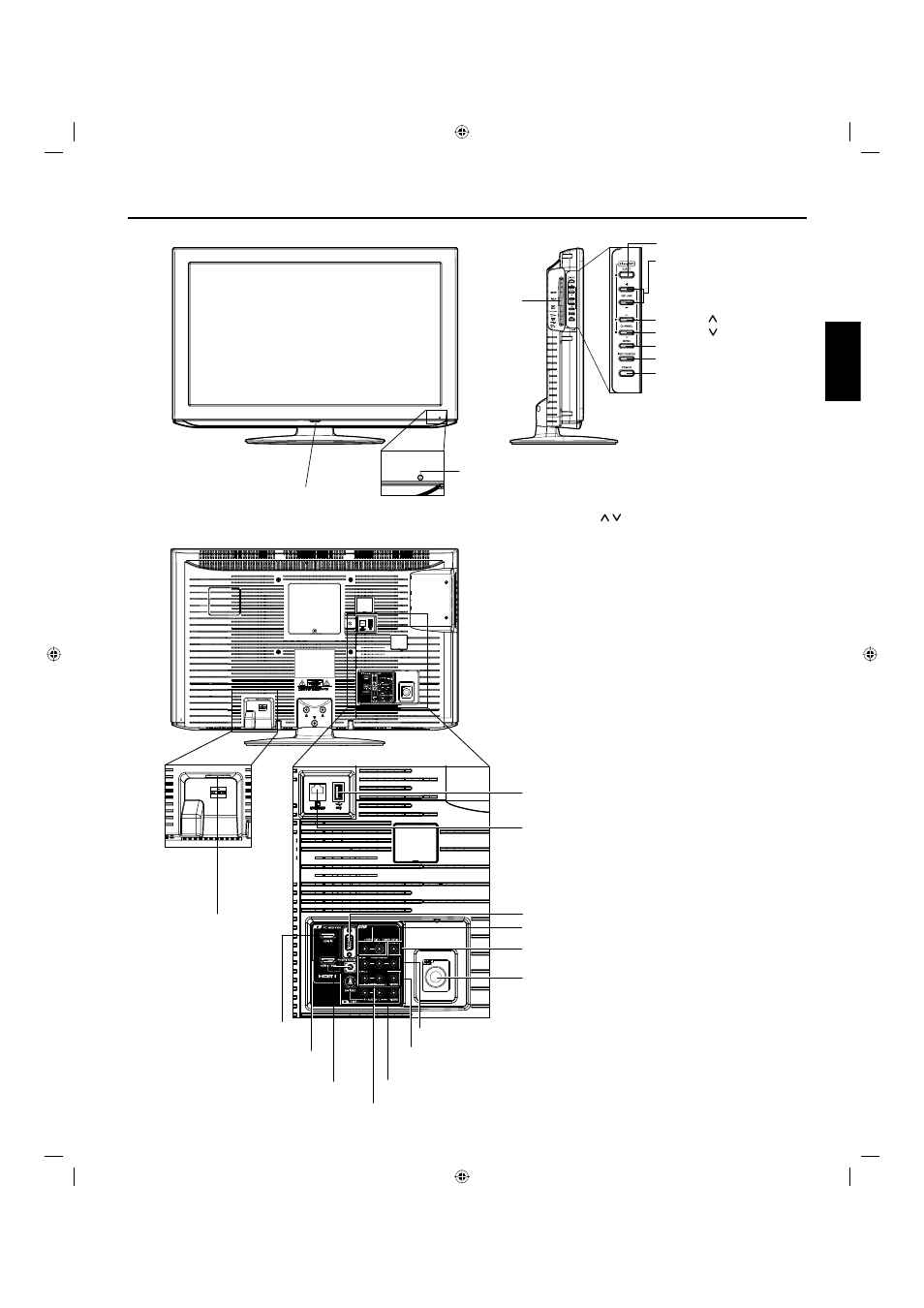

Location of controls
To display the menu screen.
Press the MENU button to display the menu screen.
CHANNEL / buttons, VOLUME +/– buttons and
INPUT/ENTER button can be used to select the
desired setting during the menu screen operations.
POWER button
INPUT/ENTER button
VOLUME +/– buttons
CHANNEL /1 (PLAY) button
MENU button
POWER indicator
Red : Standby
Blue : On
EJECT button
CHANNEL /3 (STOP) button
DISC slot
AC INPUT jack
HDMI 2 IN jack
HDMI 1/DVI IN jack
PC/DVI AUDIO IN jack
AUDIO (L (MONO)/R) jacks
(for COMPONENT IN and LINE2 VIDEO IN)
LINE 1 IN jacks (VIDEO/S-VIDEO/AUDIO (L (MONO)/R))
LINE 2 VIDEO IN jack
COMPONENT IN jacks
ANT. IN jack
DIGITAL AUDIO COAXIAL OUT jack
VAR (VARIABLE) AUDIO OUT jack
PC MONITOR IN jack
Remote sensor
Rear
Front
USB jack
ETHERNET jack
Left Side
