41 Heat & Glo • SL-550 / 750 / 950TV-D • 2053-985 Rev. J • 4/07
Reference Materials
16
Appliance Dimensions Table
A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.

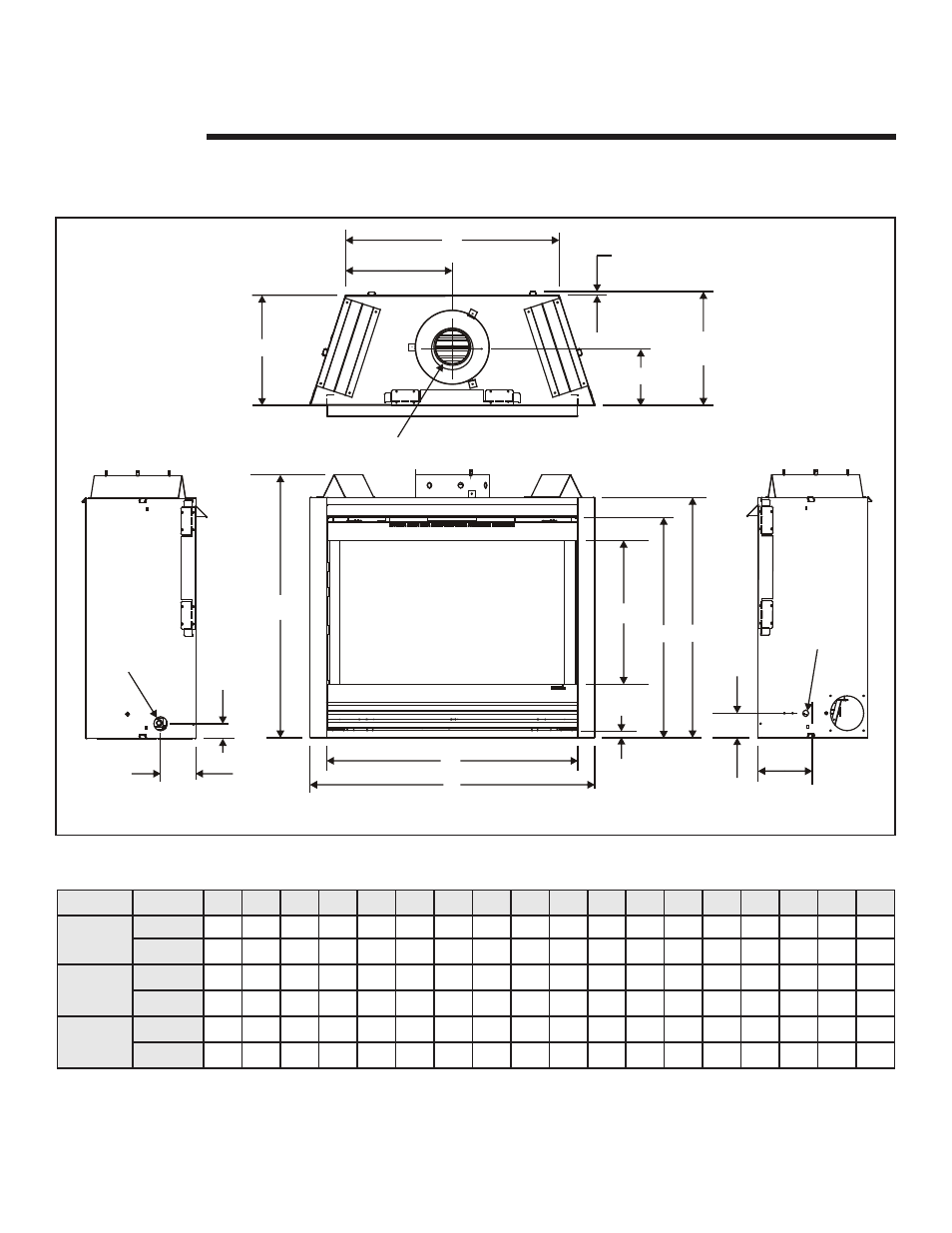

Figure 16.1 Appliance Dimensions
A B C D E F G H I J K L M N O P Q R
SL-550TV-D
Inches 36 31 32-1/2 17 28-1/2 31 8 15-3/4 25-3/4 1/2 1/2 8-1/8 16-1/4 5 5-1/16 2-1/4 1 28-1/2
Millimeters 913 790 827 438 723 789 198 402 327 653 14 206 415 127 129 55 25 726
SL-750TV-D
Inches 41 36 37-3/4 20-1/2 32 34-1/2 8 - 15-3/8 30-3/4 - - - 5 - - - 32
Millimeters 1040 917 960 526 810 878 198 - 390 780 - - - 127 - - - 815
SL-950TV-D
Inches 48 43 41-3/4 22 - 38-1/2 - - 18-7/8 37-3/4 - - - 6 6 - - 36
Millimeters 1218 1095 1062 559 - 979 - - 479 958 - - - 153 153 - - 917
GAS LINE
ACCESS
ELECTRICAL
ACCESS
O
A
B
G
K
M
H
J
I
L
P
D
E
C
F
N
R
Q
