Heat & Glo • SL-550 / 750 / 950TV-D • 2053-985 Rev. J • 4/07 24
A. Mantel Projections

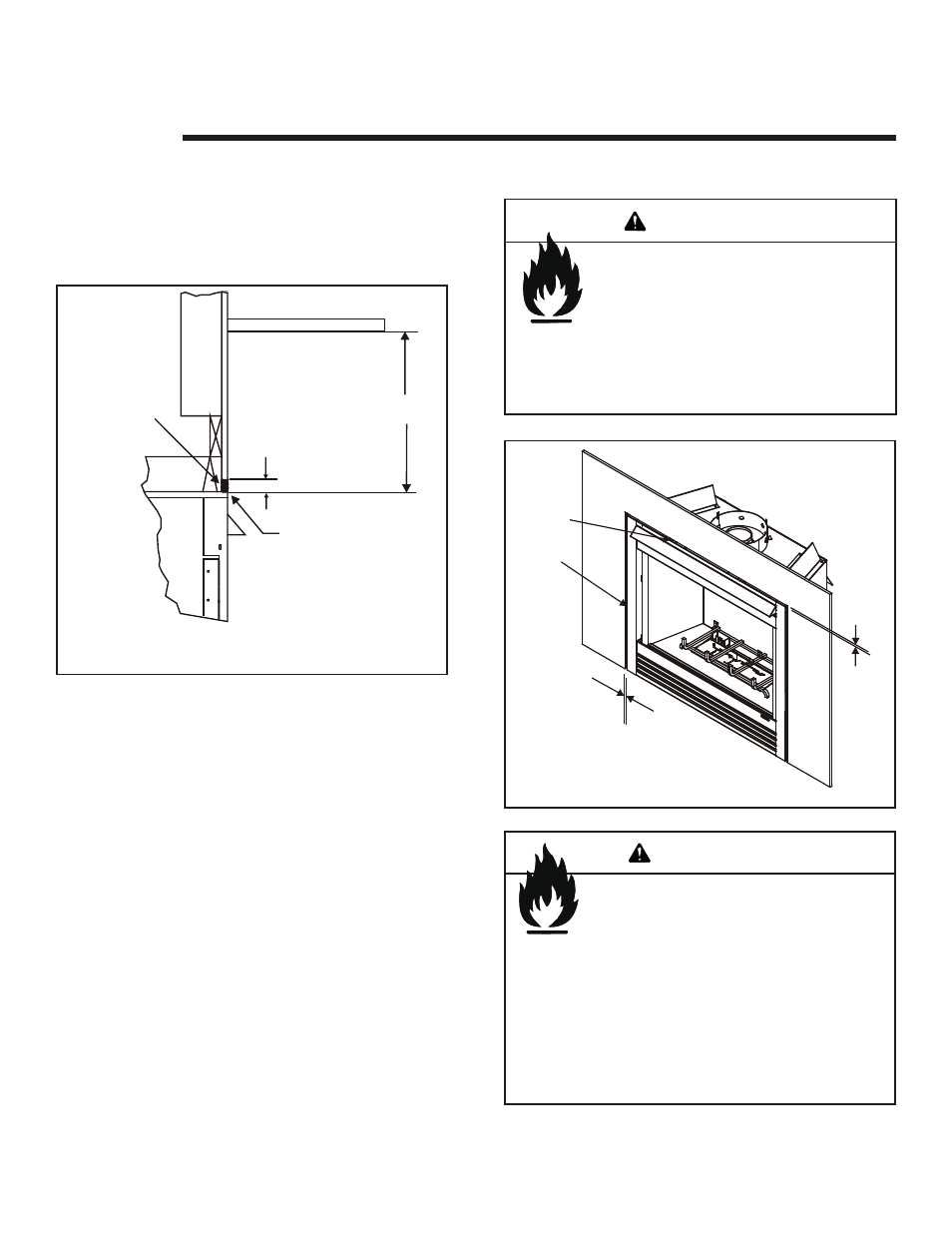

Figure 11.1 shows the minimum vertical and corresponding
maximum horizontal dimensions of appliance mantels or
other combustible projections above the top front edge of
the appliance.
Finishing
B. Facing Material
11
Figure 11.3 Noncombustible Facing Diagram
Fire Risk.
Do NOT obstruct air inlet or outlet grilles.
Do NOT modify grilles.
• Modifying or covering grilles could cause
temperature rise and fi re hazard.
Finishing materials must not interfere with:
• Air fl ow through grilles or louvers.
• Operation of louvers or doors.
• Access for service.
Fire Risk.
Finish all edges and fronts to clearances and
specifi cations listed in manual.
Figure 11.1 Clearances to Mantels or other
Combustibles
above Appliance
1/2 INCH
(13mm)
12 INCHES
(305mm)
TOP FRONT EDGE
OF FIREPLACE
12 INCHES
(305mm)
NON-COMBUSTIBLE
MATERIAL ONLY
SIDE SEAL
JOINT
1/2 INCH
(13mm)
1/2 INCH
(13mm)
FINISH WALL MATERIAL
MAY BE COMBUSTIBLE
- TOP AND SIDES
TOP SEAL
JOINT
• Black metal appliance front may be covered with non-
combustible material only.
• Do NOT overlap combustible materials onto appliance
front.
• Install combustible materials up to specifi ed clearances
on top front and side edges.
• Seal joints between the fi nished wall and appliance top
and sides using only a 300º F minimum sealant.
WARNING
WARNING
