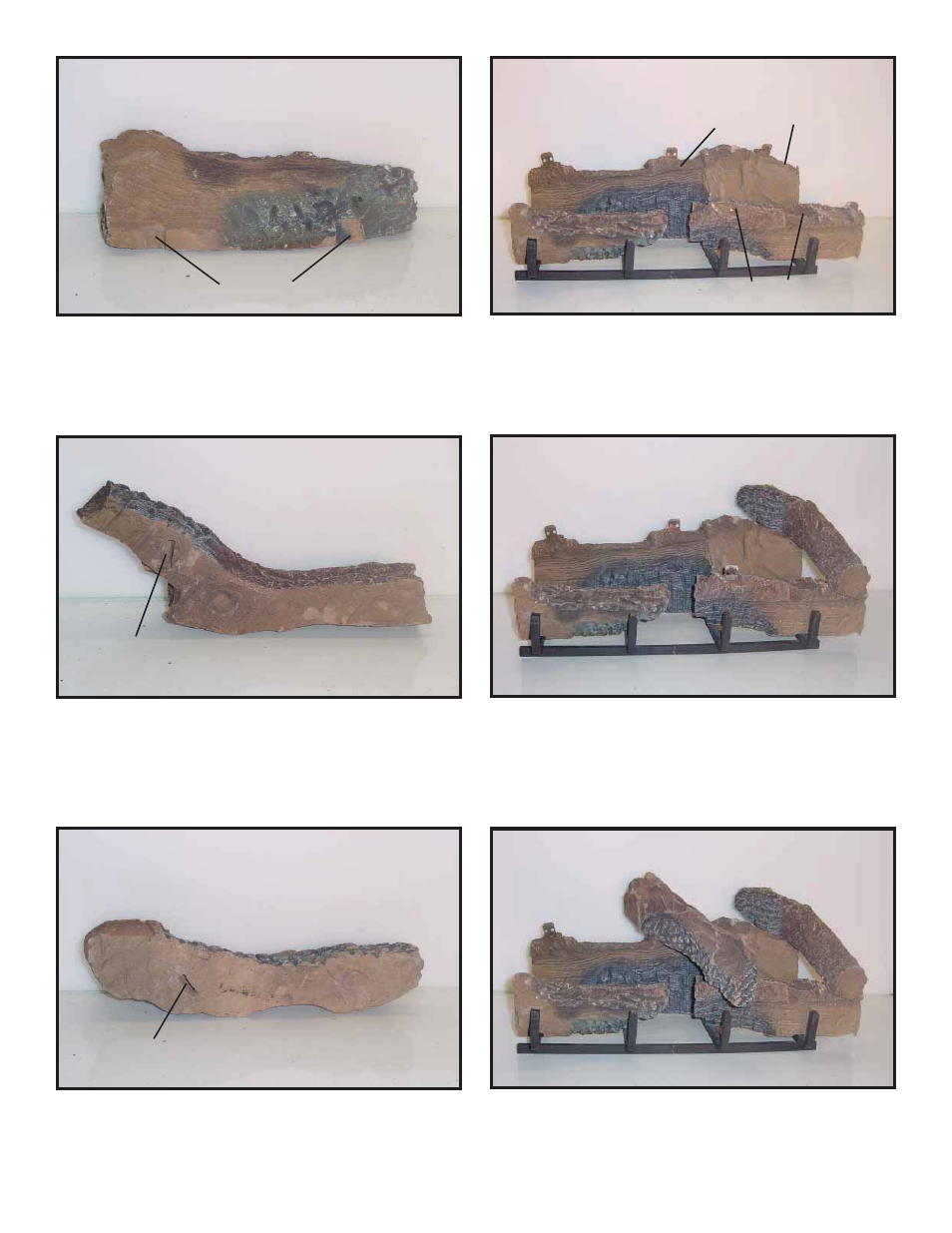

LOG #3 (SRV530-718): Place log #3 on the left two grate bars using the notches in the bottom of the log.
Position log parallel to log #1 and on the same line as log #2. Left edge of log should rest between grate bar and
second tab.
LOG #4 (SRV2045-703):
Place log #4 on top of log #1 and log #2 so that the cutouts on the bottom of log
#4 fi t on the tab on log #1 and will fi t in the fl at spot on log #2.
LOG #5 (SRV2045-702): Place log #5 on the tab on log #1 so that the cutouts on the bottom of log #5 fi t
onto the raised fl at spots on log #2.
NOTCHES
RAISED FLAT SPOTS
RAISED FLAT SPOTS
5
4
3
TAB LOCATOR
TAB LOCATOR
