31 Heat & Glo • SL-550 / 750 / 950TV-D • 2053-985 Rev. J • 4/07
A. Before Lighting Appliance
Before lighting this appliance determine if it has a Standing
Pilot or Intellifi re ignition system by opening the control
access panel to view wiring system and gas valve. If this
appliance has a red or black ignitor button (see Figure
10.1) this appliance has a Standing Pilot ignition system.
If there is no red or black ignitor button, this appliance has
an Intellifi re ignition system.
Operating Instructions
13
CAUTION
If installing Intellifi re ignition battery backup:
• Do not install batteries if the backup mode may not be used
for extended time.
• Batteries may leak.
• Install batteries only when needed for power outage.
Before operating this appliance have a qualified
technician:
• Remove all shipping materials from inside and/or
underneath the fi rebox.
• Review proper placement of logs, rockwool, lava rock,
and vermiculite.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensure that the glass is sealed and in the proper
position.
• Ensure that the fl ow of combustion and ventilation air is
not obstructed (front grilles and vent caps).
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot during
operation and cool down.
• Keep children away.
• CAREFULLY SUPERVISE children in
same room as appliance.
This appliance has been supplied with an integral barrier to
prevent direct contact with the fi xed glass panel. Do NOT
operate the appliance with the protective barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
Glass door must be in place when
appliance is operating. Risk of:
• Combustion Fumes
• Fire
Do NOT operate appliance with glass door removed.
• Open viewing glass for servicing only.
• Glass door MUST be in place and sealed before operating
appliance.
• Only use glass door certifi ed for use with appliance.
• Glass replacement should be done by qualified
technician.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer to
the owner’s information manual provided with this appliance.
For assistance or additional information consult a qualifi ed
installer, service agency or the gas supplier.
Do NOT use this appliance if any part has been under water.
Immediately call a qualifi ed service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
FLAME UP
- ACCEPTABLE -
FLAME IN
- GOOD -
FLAME OUT
- BAD -
DRAFT HOOD

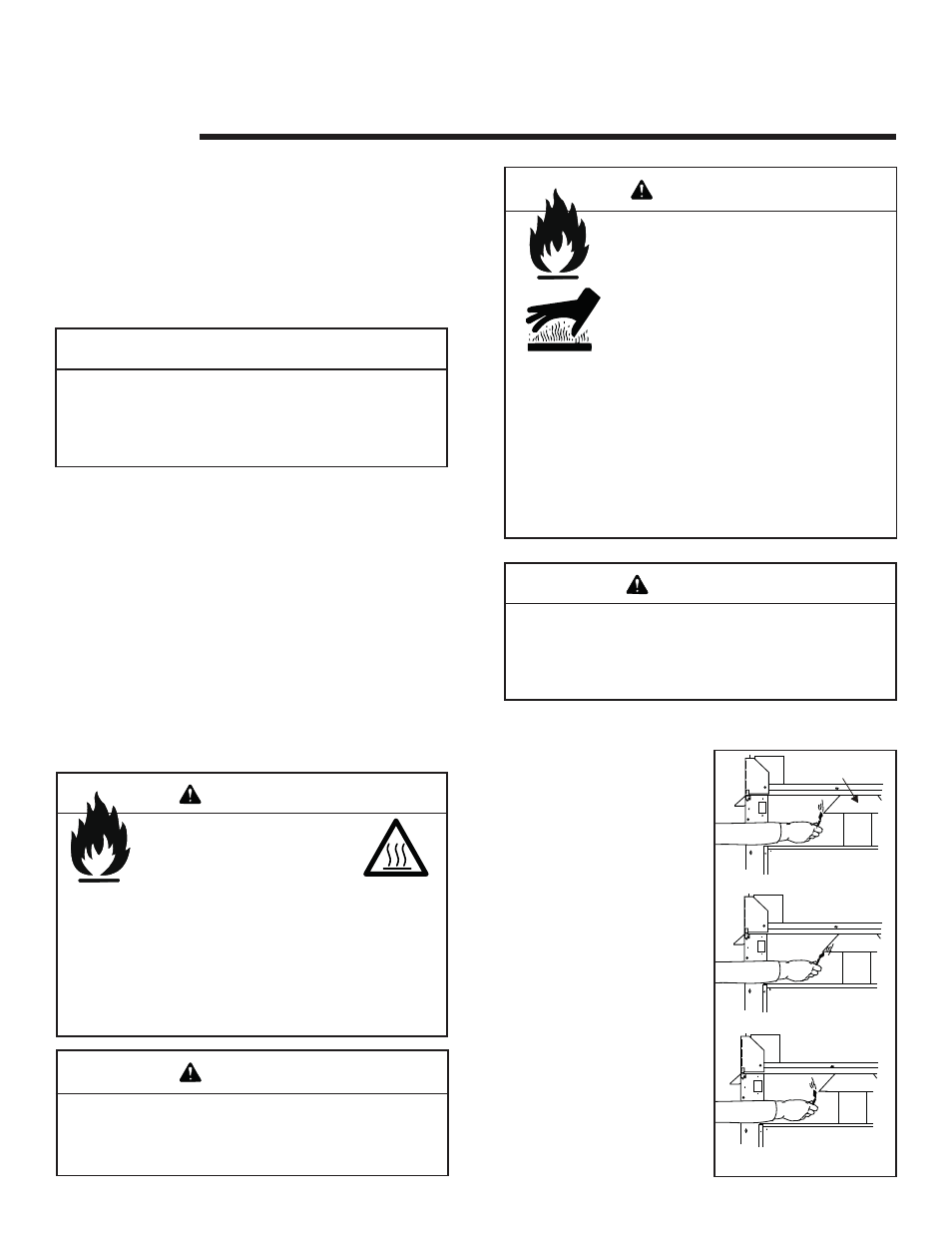

B. Check Appliance Draft
Figure 13.1
Check draft of appliance to
verify proper venting condi-
tions.
• Close all windows and
doors, turn on all exhaust
fans in home.
• Appliance is to be com-
pletely assembled to nor-
mal operating condition.
• Turn on appliance and al-
low to operate for at least
10 minutes.
• Check draft as shown in
Figure 13.1. This can be
done using a smoke or
fl ame producing match.
• Hold lit match at bottom
edge of draft hood opening
and observe fl ame/smoke
per the fi gure.
• Alert children and adults to hazards of high temperatures.
• Do NOT operate with protective barriers open or re-
moved.
• Keep clothing, furniture, draperies and other combustibles
away.
WARNING
WARNING
WARNING
WARNING
