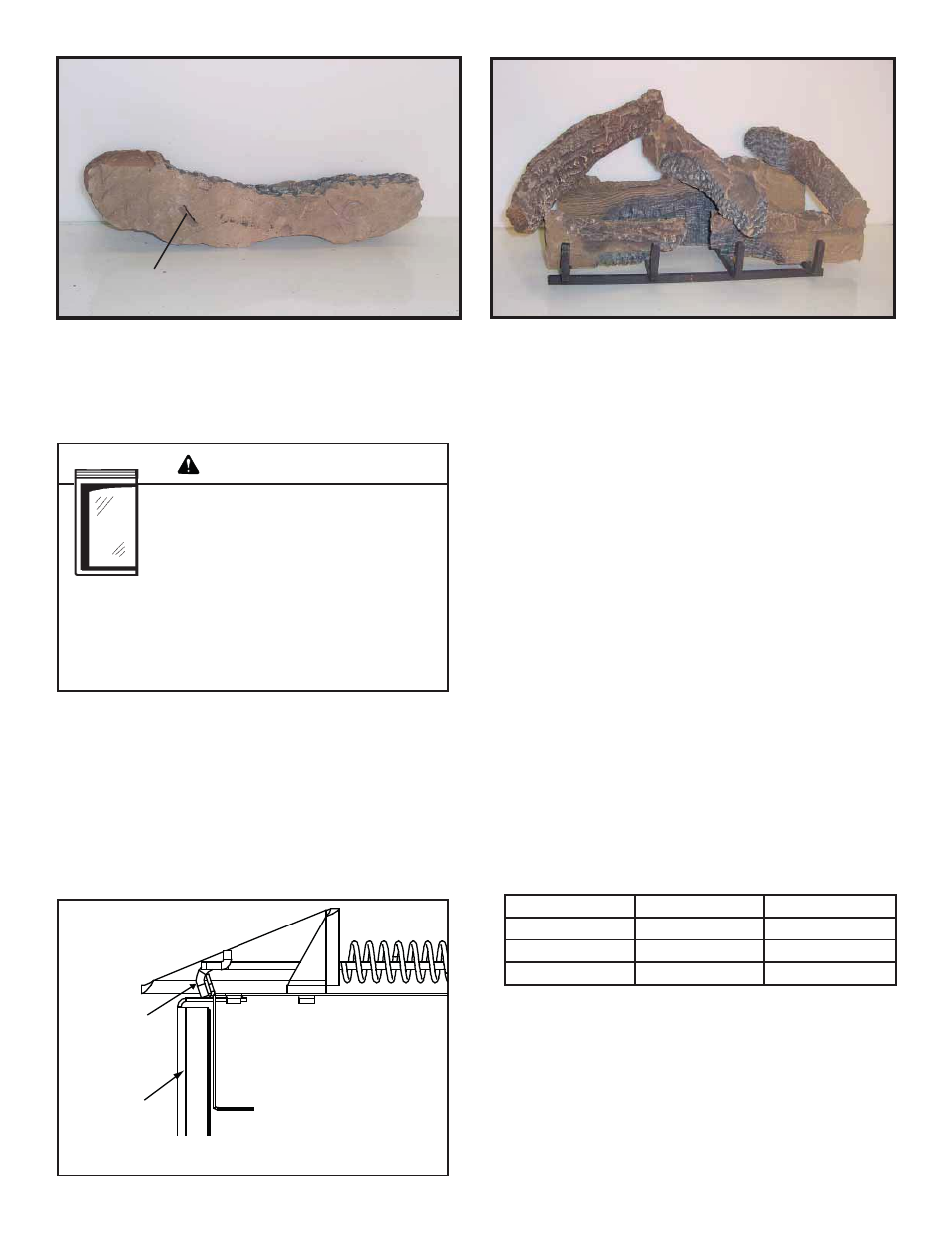

Figure 12.17 Glass Assembly
H. Glass Assembly
Removing Glass Assembly
Pull the four glass assembly latches out of the groove on
the glass frame. Remove glass door from the appliance
(see Figure 12.17).
Replacing Glass Assembly
Replace the glass door on the appliance. Pull out and
latch the four glass assembly latches into the groove on
the glass frame.
Handle glass doors with care.
• Inspect the gasket to ensure it is
undamaged.
• Inspect the glass for cracks, chips or
scratches.
• Any scratch in glass, requires replacement.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass door removed,
cracked, broken or scratched.
• Replace glass door assembly as a complete appliance.
I. Screen Mesh
The screen mesh is a protective barrier and must be
attached.
J. Grilles and Trim
Install optional marble and brass trim surround kits as
desired. Marble, brass, brick, tile, or other non-combustible
materials can be used to cover up the gap between the
sheet rock and the appliance.
Do not obstruct or modify the air inlet/outlet grilles or hood.
When overlapping on both sides, leave enough space so
that the bottom grille can be lowered and the trim door
removed.
LATCHES
(BOTH BOTTOM
AND TOP)
GLASS
ASSEMBLY
K. Hood
Hood is included with the front and required in all
installations.
L. Shutter Settings
WARNING
LOG #6 (SRV2045-701): Place log #6 so that the right edge fi ts into the notch on log #5, the middle goes
into the tab on log #1, and the left edge rests on log #3.
6
TAB LOCATOR
Models NG LP
SL-550TV-D 1/4 in. 3/8 in.
SL-750TV-D 1/4 in. 3/8 in.
SL-950TV-D 3/8 in. Full open
