SL500 (M852x) Tape Library Installation and User’s Guide — 541531-006

A- 1

Specifications

The next pages provide tape library, tape drive, and cartridge specifications.

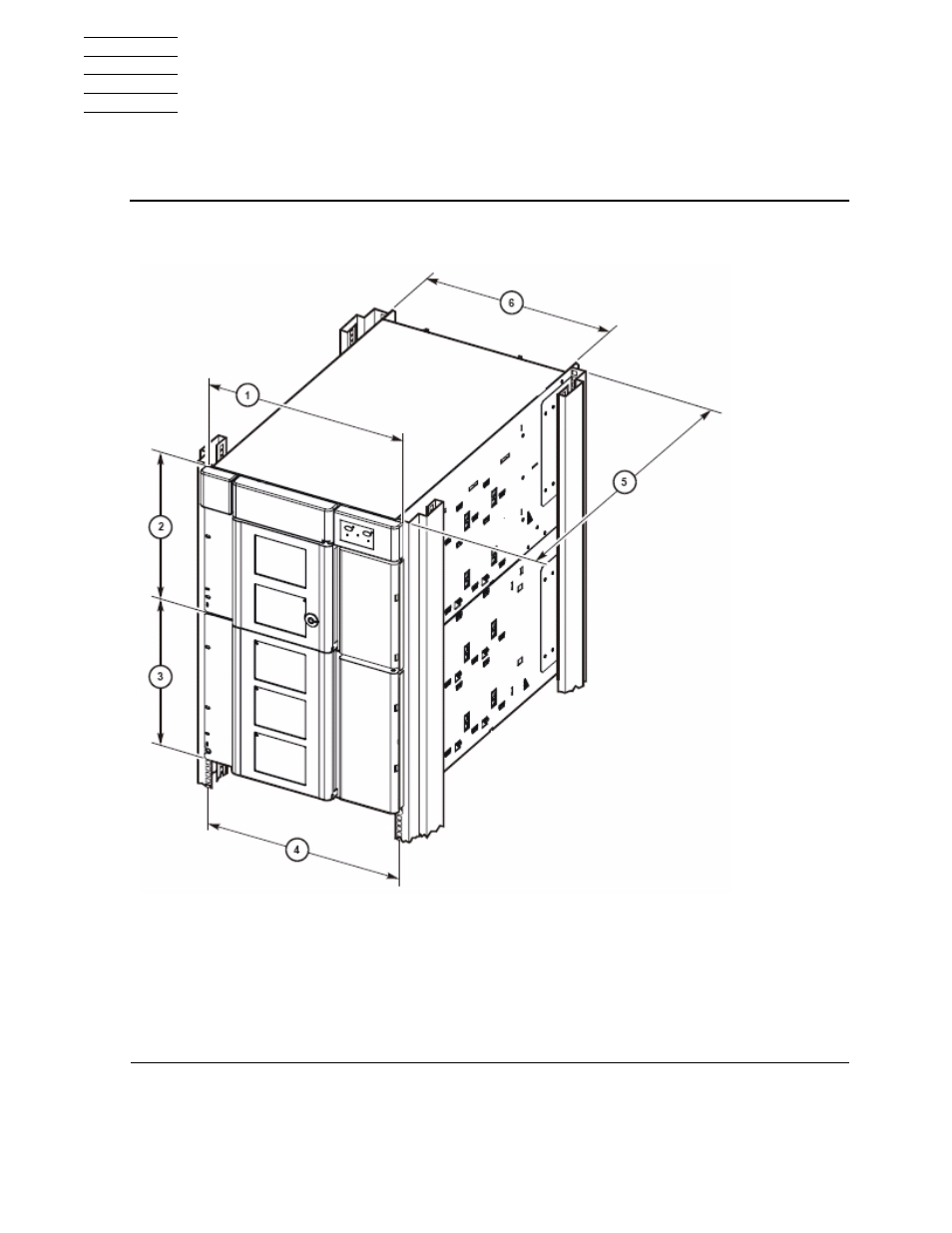

Figure A-1. Library and Rack Dimensions

1. 48.3 cm (19.0 in.) width of front of base module with flange
2. 35.6 cm (14.0 in.) height of base module
3. 35.6 cm (14.0 in.) height of expansion module
4. 46.5 cm (18.3 in.) distance between rack holes
5. 60.9 cm (24.0 in.) to 86.4 cm (34.0 in.), optimally 74 cm (29 in.) front to
rear rack mounting distance
6. 44.5 cm (17.5 in.) width of back of base module
