Figure 1-7, Robotics components – HP SL500 (M852x) User Manual
Page 22
Overview of the Tape Library
SL500 (M852x) Tape Library Installation and User’s Guide — 541531-006
1-12
Robotics Unit

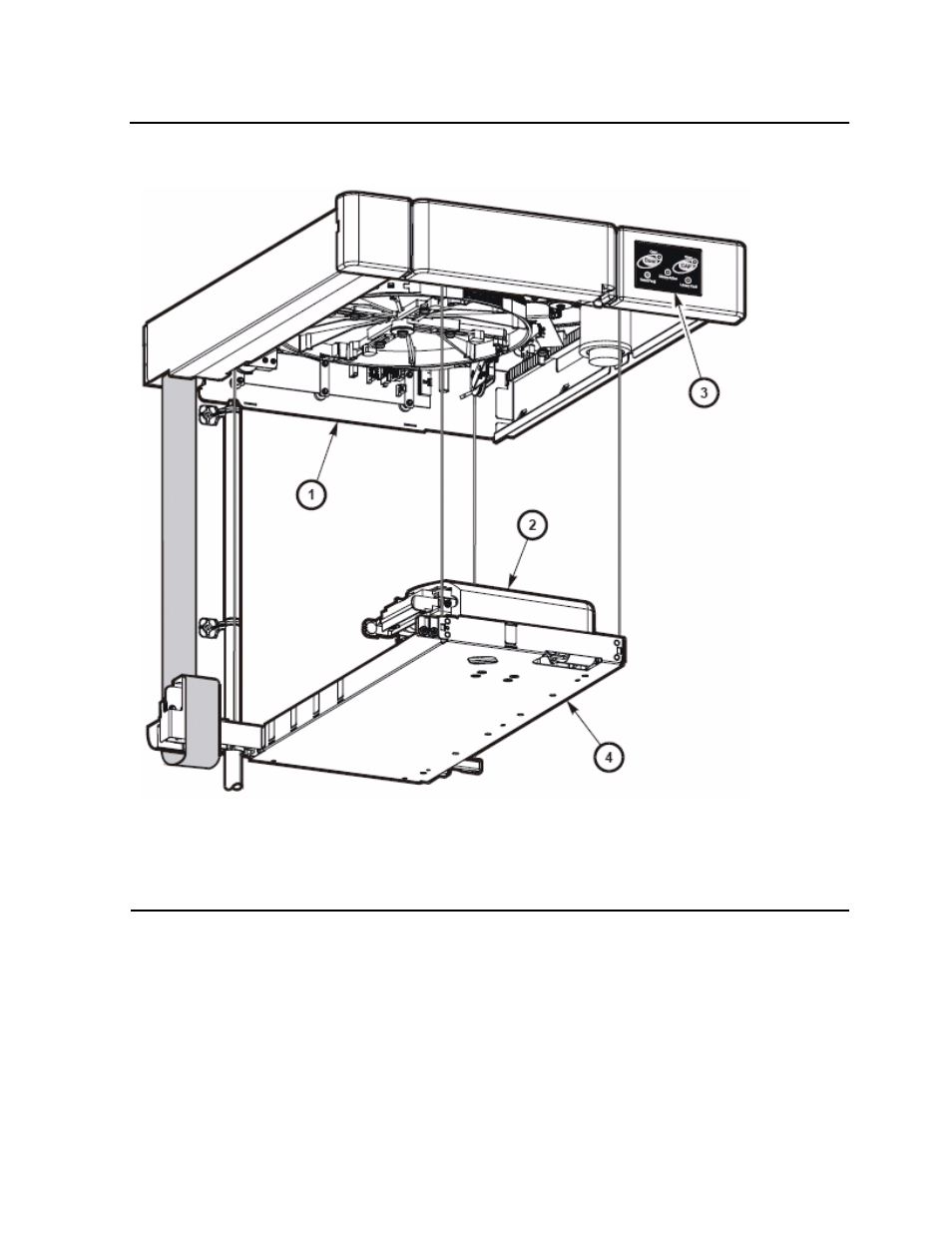

Figure 1-7. Robotics Components
1. Z drive assembly
2. Hand assembly
3. Keypad assembly
4. X table assembly
