Views and locations, Figure 1-1, Front view of tape library components – HP SL500 (M852x) User Manual
Page 12
Overview of the Tape Library
SL500 (M852x) Tape Library Installation and User’s Guide — 541531-006
1 -2
Views and Locations
Views and Locations
show the tape library views and the locations of its
components.

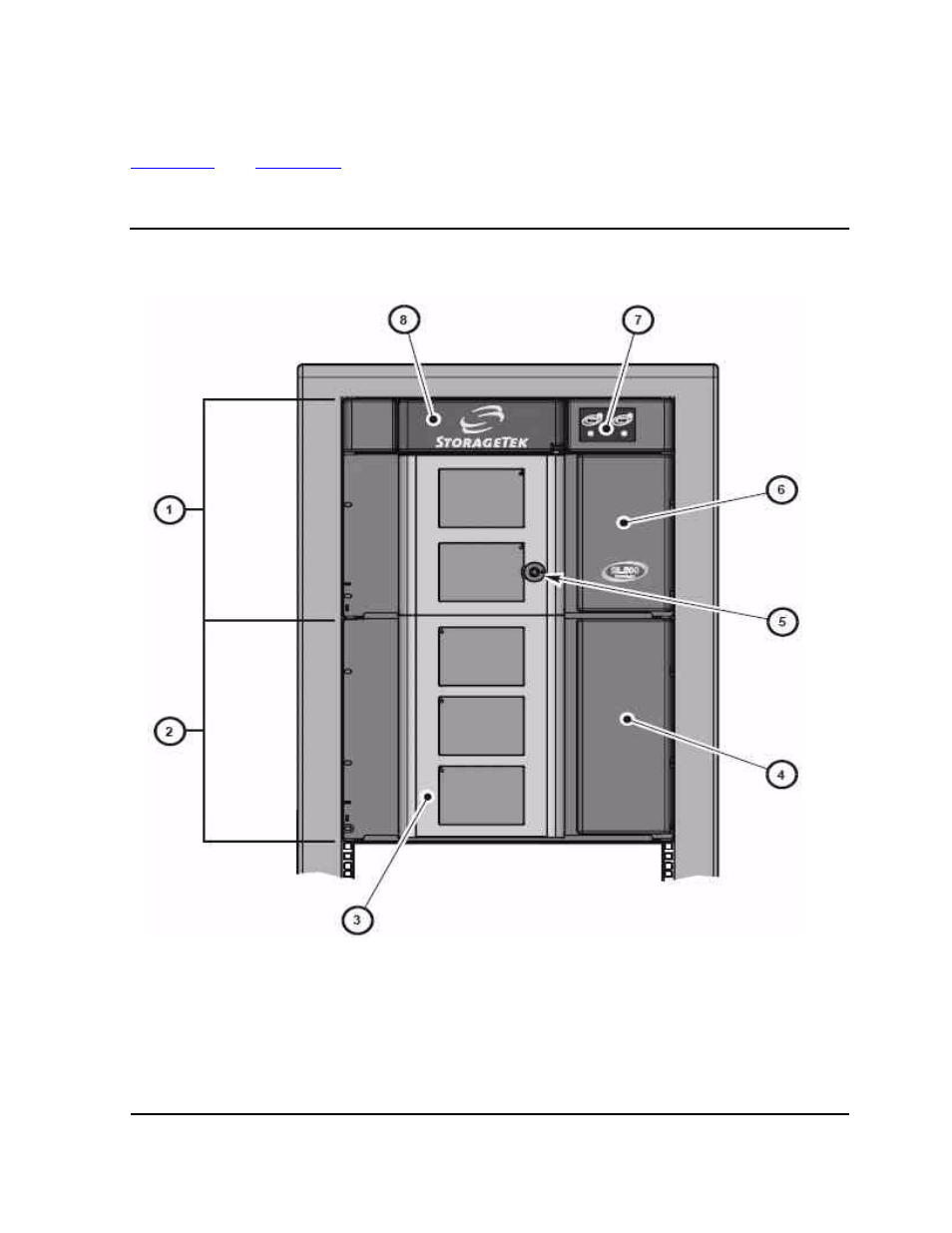

Figure 1-1. Front View of Tape Library Components
1. Base module
2. Drive expansion module
3. Library door
4. Drive expansion module cartridge access port (CAP)
5. Library door lock
6. Base unit cartridge access port (CAP)
7. Keypad assembly
8. Robotics unit
