Hustler Turf Diesel Z - Manual (Page 128)

10-14 109706 10/08
Maintenance

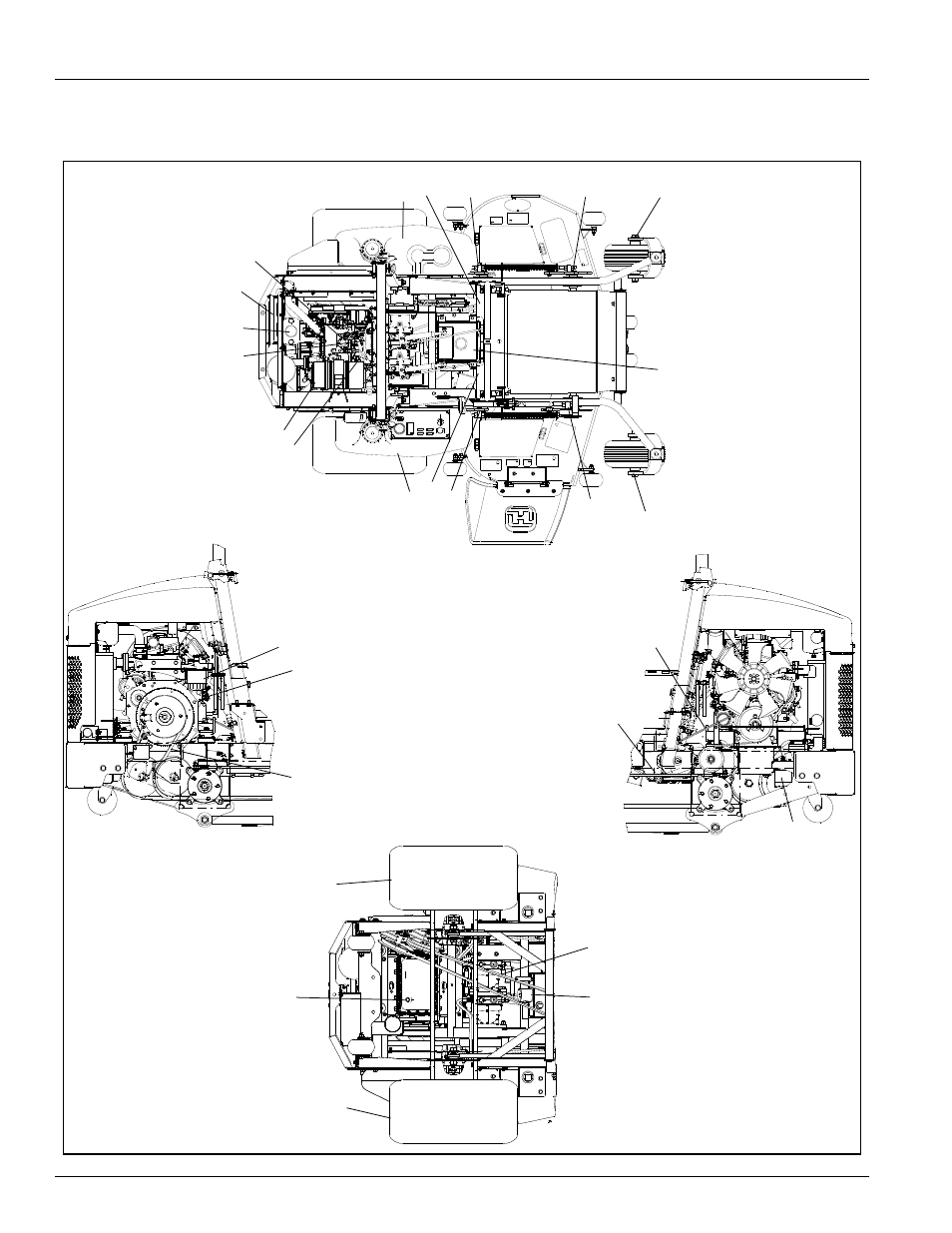

FIG. 26
11 Viewed from top of unit 11 12
11
11
12
9
7
9
6
6
18
5
17
19
3
1
2
1
16
13
13
16
8 4
Viewed from bottom of unit
1. Engine Oil Dipstick
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Hydraulic Oil Reservoir
8. Hydraulic Oil Filter
9. Gauge Wheel Bearing Zerks (2)
10. Engine Oil Filter
11. Deck Height Pivot Zerks (4)
12. Park Brake Switch (2)
13. Drive Tire
14. Pump Idler Zerk (1)
15. Pump Belt
16. Deck Drive Belt
17. Engine Coolant Fill
18. Engine Oil Fill
19. Hydraulic Oil Heat Exchanger
Maintenance Locator Chart
15
10
14
Viewed from right
side of unit Viewed from left
side of unit
