Page 118

10-4

109706 10/08

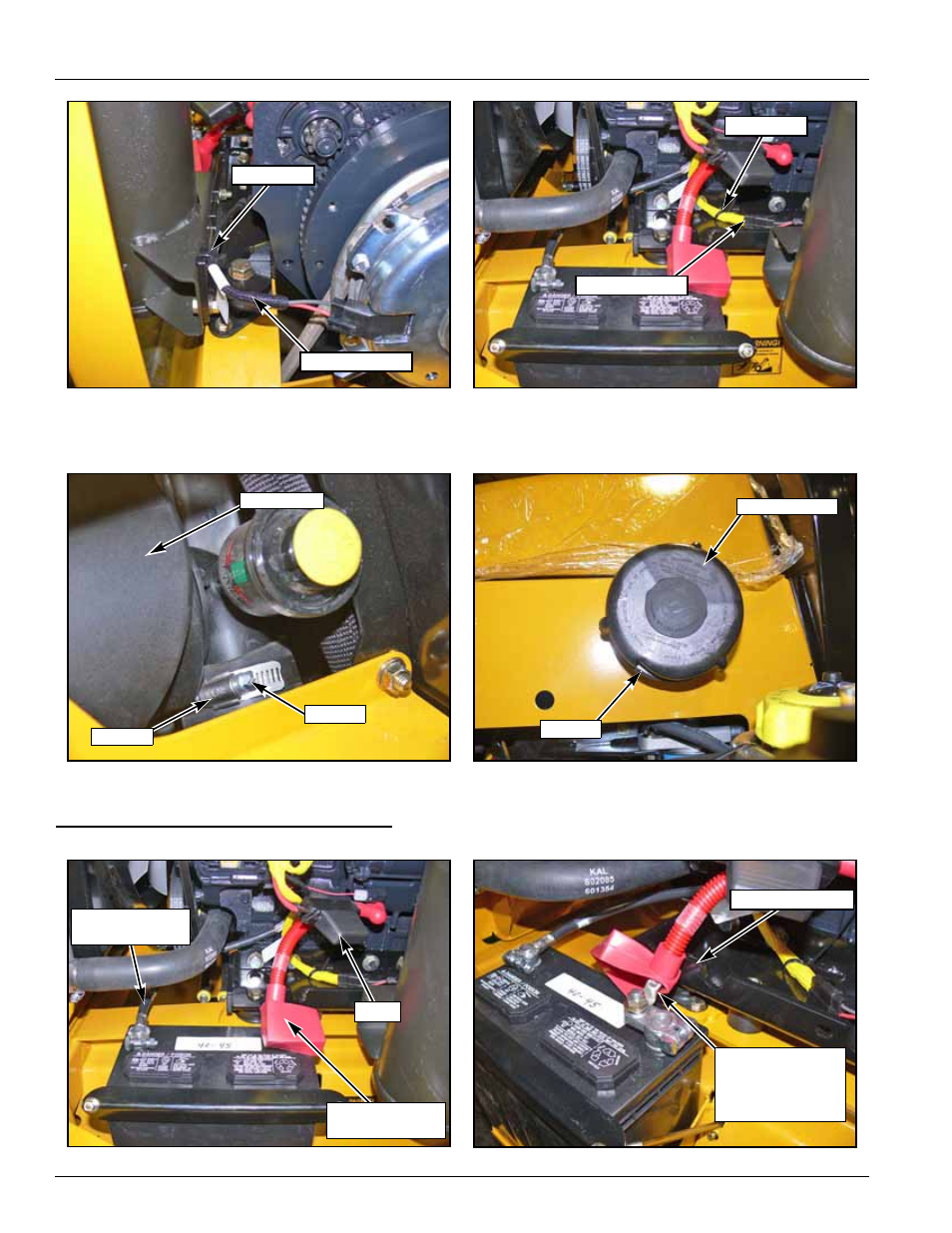

PTO clutch wire routing (FIG. 2 & FIG. 3)

Orient the hose clamp on the air filter to engine hose so that it is accessible for maintenance (FIG. 4). Orient the pre-

cleaner cap with the vent notch facing downward and away from the operator (FIG. 5).

Wire harness and cable routings

Battery cable connections (FIG. 6 & FIG. 7).

FIG. 2

FIG. 3

FIG. 4

FIG. 5

FIG. 6

FIG. 7

TIE STRAP

CLUTCH WIRE

TIE STRAP

CLUTCH WIRE

SCREW

CLAMP

AIR FILTER

PRECLEANER

NOTCH

NEG. BATTERY
CABLE

POS. BATTERY
CABLE

FUSE

BEND TERMINAL
SO THAT CABLE
CLEARS THE
ENGINE MOUNT

ENGINE MOUNT
