Havis-Shields C-TCB-24 User Manual
Install instructions c-tcb-24
INSTALL INSTRUCTIONS C-TCB-24
1999-2006 FORD EXCURSION &
1999-2008 F-250/F-350/F-450/F-550 PICKUP
TOOLS REQUIRED:
Torx Bit Set (T-55)
3/16” Allen wrench
3/8” Standard Socket Set
3/8” Metric Socket Set
3/8” Ratcheting Wrench
Powered drill
3/16” & 5/16” Drill bits
Open-end wrench set

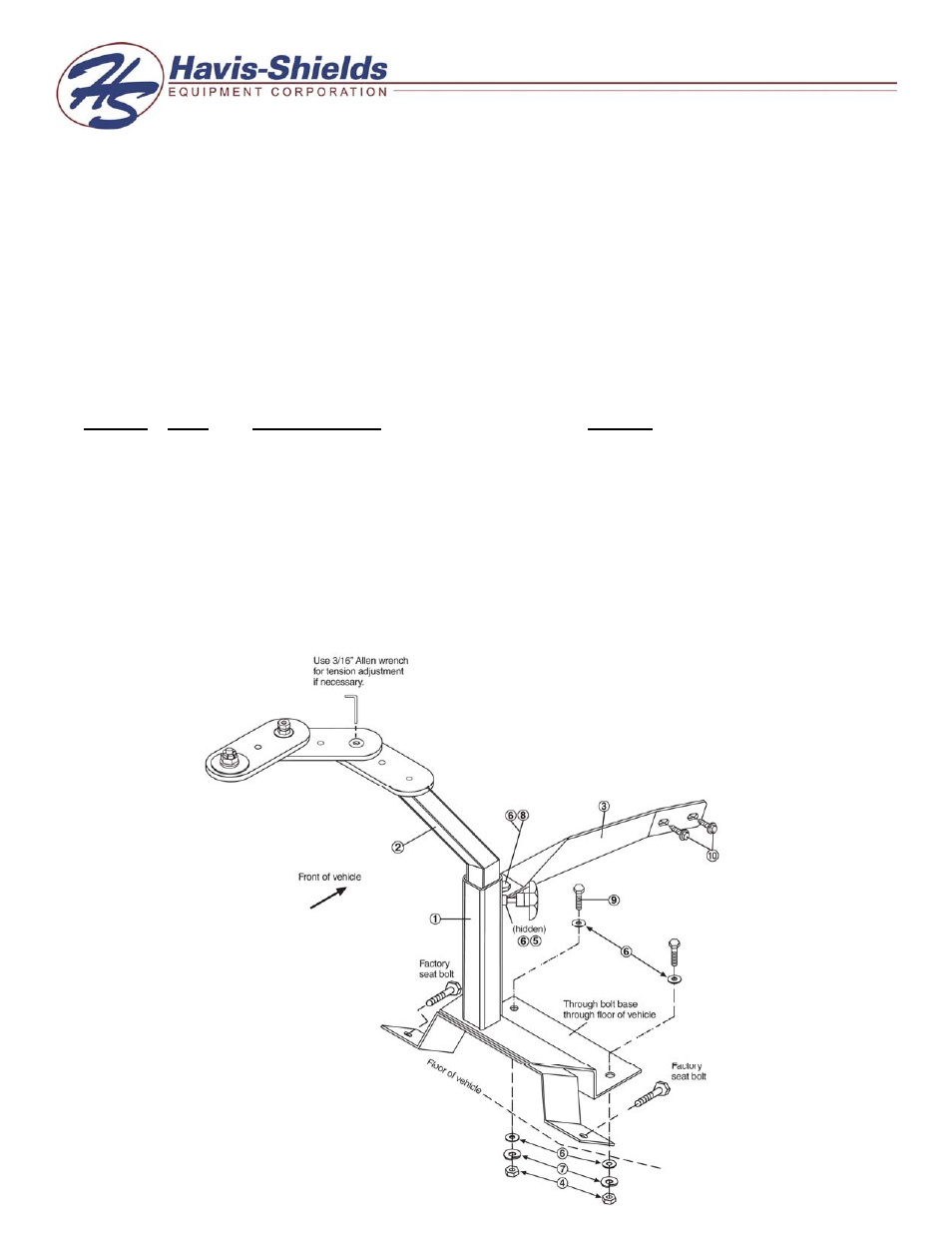

COMPONENTS & HARDWARE:
ITEM # QTY
DESCRIPTION
PART #
1 1 Pole
Support
Assembly
CM93071-24
2 1 Telescoping
Pole
Assembly
CM93072-3
3 1 Lateral
Brace
Arm
CM93338
4 2 5/16”
Hex
nut
GSM30007
5 1 5/16”
Nylock
Nut
GSM30017
6 6 5/16”
Flat
Washer
GSM31006
7 2 5/16”
Lock
Washer
GSM31027
8
1
5/16-18 x 1” Hex Head Bolt
GSM33012
9
2
5/16-18 x 1 ¼” Hex Head Bolt
GSM33013
10
2
¼” x ¾” Hex head lag bolt
GSM33060-1
C-TCB-24_INST_9-08
