C U E M I X F X
97
View menu
The View menu (Figure 9-37) lets you choose how
you wish to display the audio channel(s) being
displayed.
Display options
The Axes control (Figure 9-37) sets the opacity of
the grid displayed in the graph, from 100% (fully
visible) down to 0% (fully hidden). The
Show Ruler
option toggles the measurement items (see
“Measurement information” on page 99).
Pausing the display
The Pause button in the upper right corner of the
View section (Figure 9-37) allows you to freeze the
display at any time. To resume, click the button
again. The level meters will remain active while the
display is paused.
Horizontal controls (time axis)
The Horizontal controls (Figure 9-38) configure
the value range of the x-axis (time). Click and drag
the values up or down to set them, or double-click
to return to the default value.
There are two modes for the controls: Zoom/Offset
and Min/Max . To change the mode, use the
Horizontal control menu (Figure 9-38).

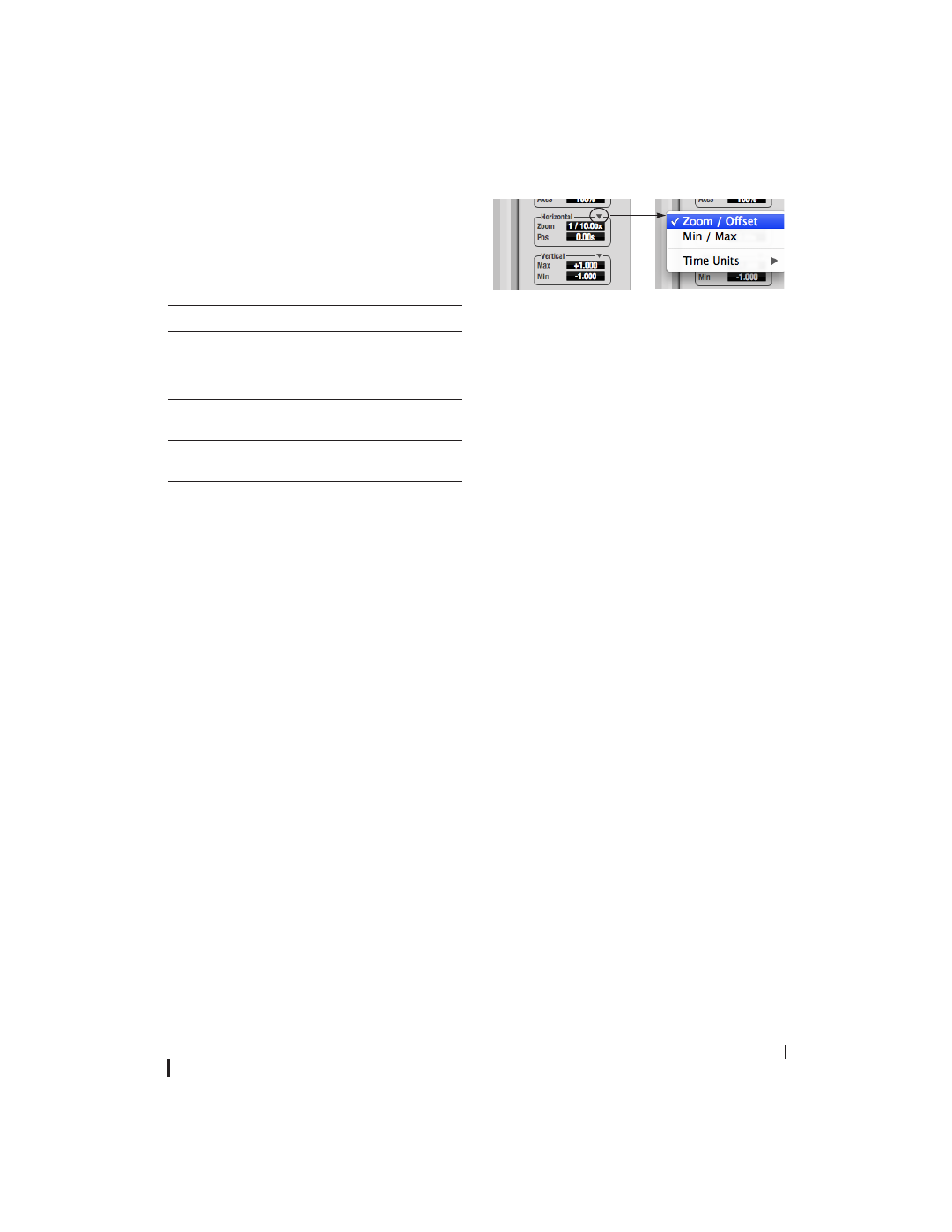

Figure 9-38: Horizontal control menu
In Zoom/Offset mode, Zoom sets the display zoom
from 1/1000x to 10x, where the number represents
the number of pixels per sample. For example,
when the horizontal zoom value is 10x, 10 samples
are displayed in 100 pixels; when the horizontal
zoom value is 1/10x, 100 samples are displayed in
10 pixels.
Pos moves the line marking time equals
zero left or right.
In Min/Max mode, Min and Max set the earliest
and most recent displayed time.
Time Units
The Time Units sub-menu (Figure 9-38) provides
the option to view the X axis in Seconds or
Samples.
Vertical controls (amplitude axis)
The Vertical controls (Figure 9-38) operate
similarly to the Horizontal controls, except that
they configure the y-axis (amplitude).
In Zoom/Offset mode, Zoom sets the display zoom
from 1/2 to 100x, and Pos moves the line marking
amplitude equals zero line up or down.
In Min/Max mode, Min and Max set the smallest
and largest displayed amplitude.
Waveform Recognition
The Waveform Recognition option searches
through new audio data looking for a waveform
which most resembles that which was previously
displayed. The region where this takes place is a
small window around the line marking time equals
View menu settingWhat it displays
Left Left channel only
Right Right channel only
Split screen Left channel on top; right channel on the bot-
tom
Shared Left and right on top of each other; left is
green, right is red
Add Left and right channels’ amplitudes are added
together
Subtract L-R The right channel’s amplitude is subtracted
from the left channel’s amplitude
