6 Basic operation
6.1 Menu operation keys
Input and output settings:
1. Remove the front panel cover, and then you can see menu operation keys.
Unscrew
ON
OFF
DISTRIBUTION AMPLIFIER for HDMI
POWER

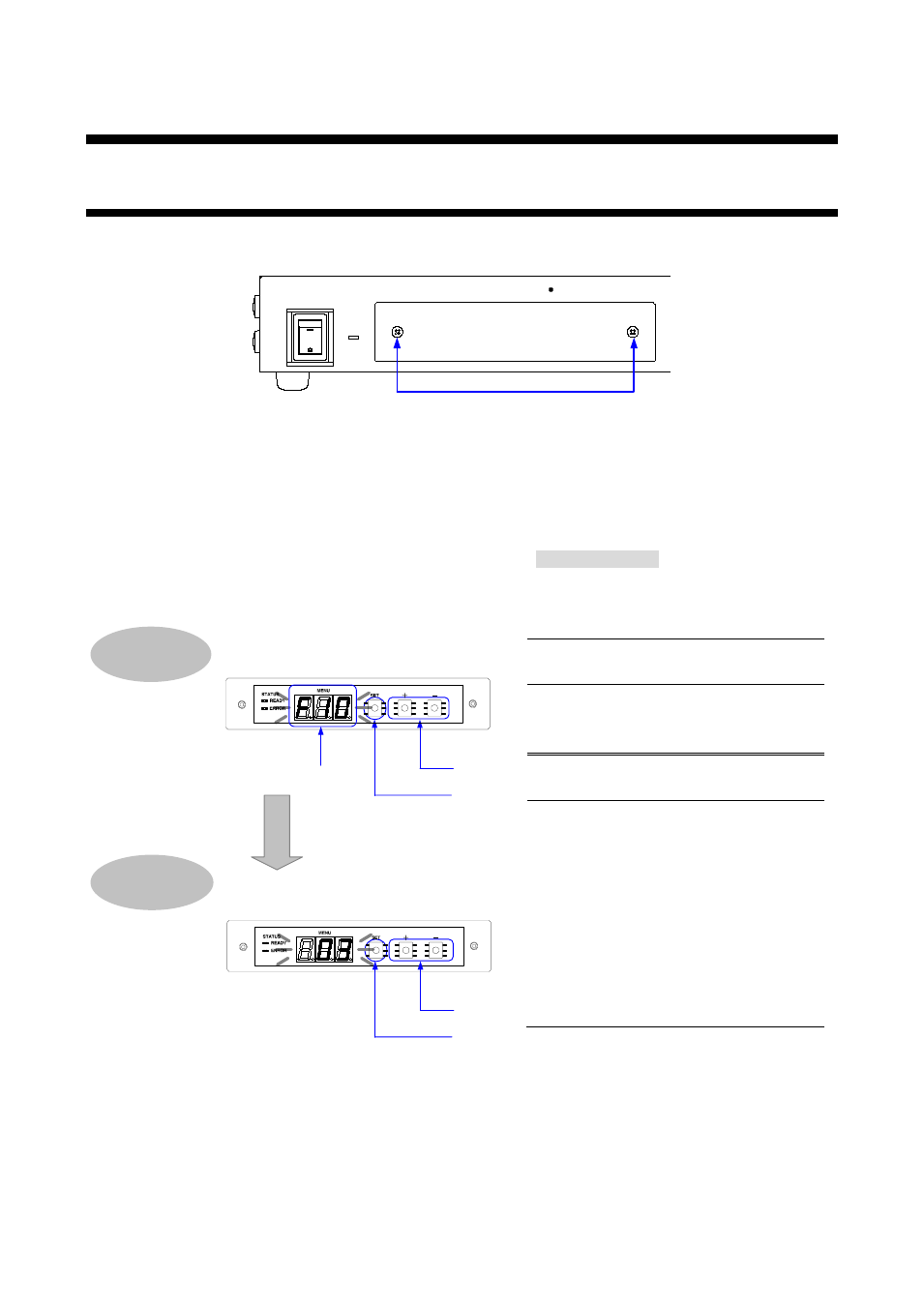

[Fig. 6.1] Removing cover
2. Select the menu number first and then select the setting number.
If you do not operate for 60 seconds in each step, the light of the segment display will be turned off.
Setting procedure
1
Press the “SET” key. The segment
display lights.
2
Select the menu number using the
“+” and “-“ keys.
3
Press the “SET” key to apply the
menu number.
The set number is displayed.
4
Select the set number value using
the “+” and “-“ keys.
5
Press the “SET” key to apply the
setting. After that, the segment
display of Step 2 menu number
above is displayed.
If you do not press the “SET” key for
10 seconds, the number is not
applied and the segment display of
the step 2 is displayed. You have to
do the same operation from Step 2
again.
[Fig. 6.2] Setting procedure for input and output
1, 3
2
Selecting menu
number
Selecting set
number
3-digit segment display
5
4
