4.2 Rear panel
S/N
AC 100-240V 50/60Hz (FUSE T1.25A 250V)
UPDATE
FG OUT 5
OUT 10
OUT 4
OUT 9
OUT 3
OUT 8
OUT 2
OUT 7
OUT 1
OUT 6
ANALOG
AUDIO
R
L
IN
② ① ③ ④ ⑤ ⑥ ⑦

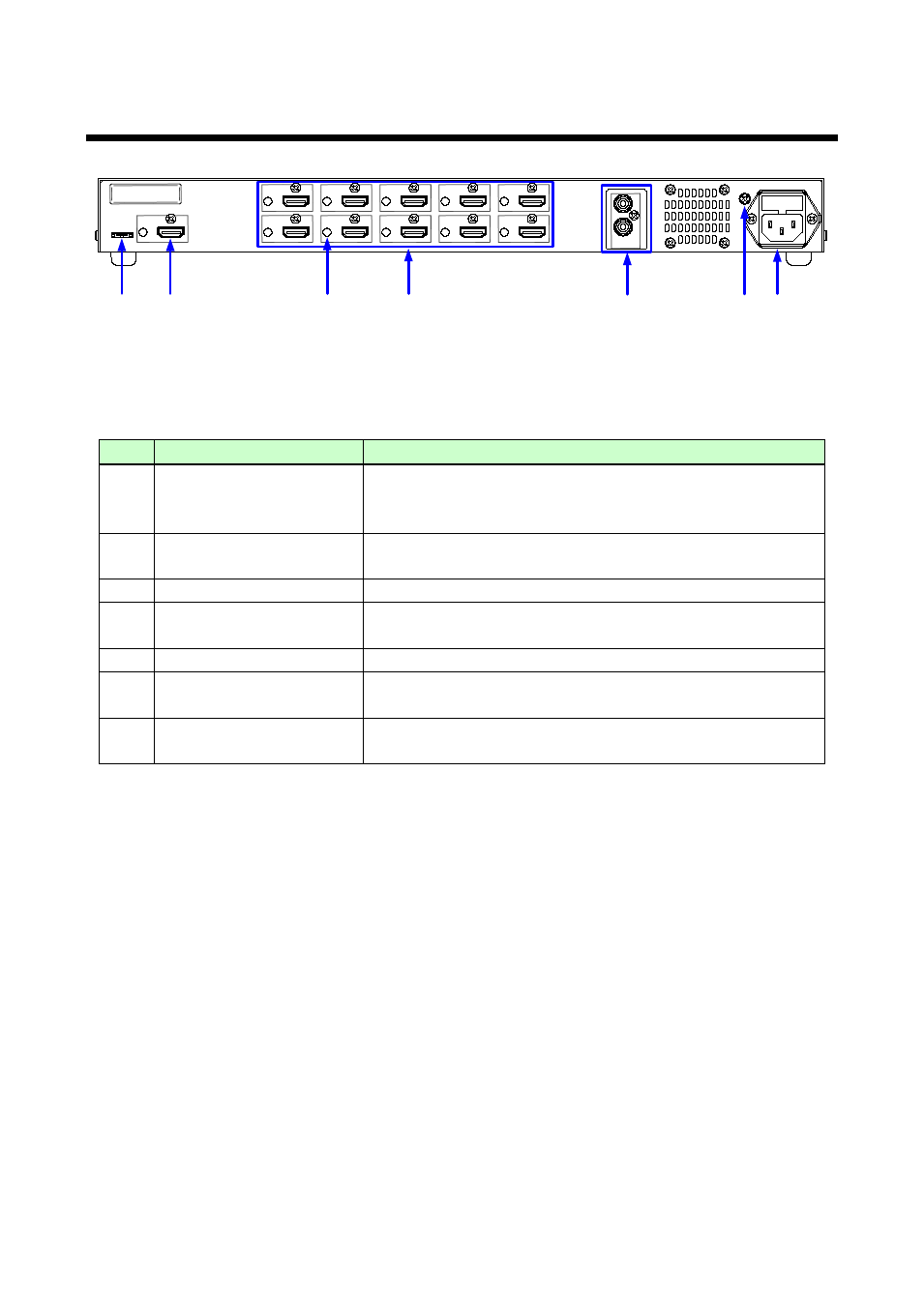

[Fig. 4.2] Panel drawing
[Table 4.2] Part names and descriptions
# Part name Description
① HDMI input connector Input connector for HDMI signals.
Connector for a source device such as a DVD/Blu-ray disc
player.
② HDMI output connector Output connector for HDMI signals.
Connector for sink devices such as LCD monitors and projectors.
③ HDMI cable fixing hole Holes for the supplied cable clamps to fix the HDMI cables.
④ Audio output connector Analog output for audio of HDMI input signals.
Connector for an amplifier, speaker, mixer, or the like.
⑤ AC adapter connector Connector for the supplied AC adapter.
⑥ Frame ground An M3 screw is used.
Ground for indoor ground terminal.
⑦ Connector for maintenance Not used. Please do not connect anything; this connector is for
maintenance only.
