VAC-1000HD User’s Guide
14
5 Connecting external devices
5.1 Preparation
Prepare the following cables before connecting external devices such as source and sink devices.
● HDMI cable (Type A (19-pin) plug, male)
● Stereo cable (RCA pin plug)
■ HDMI cable
[Conversion cable]
For DVI connector, please use one of the following cables.
Part number Length
CBL-DH-015A 1.5 m/4.9 feet
CBL-DH-03A 3 m/9.8 feet
CBL-DH-05A 5 m/16.4 feet

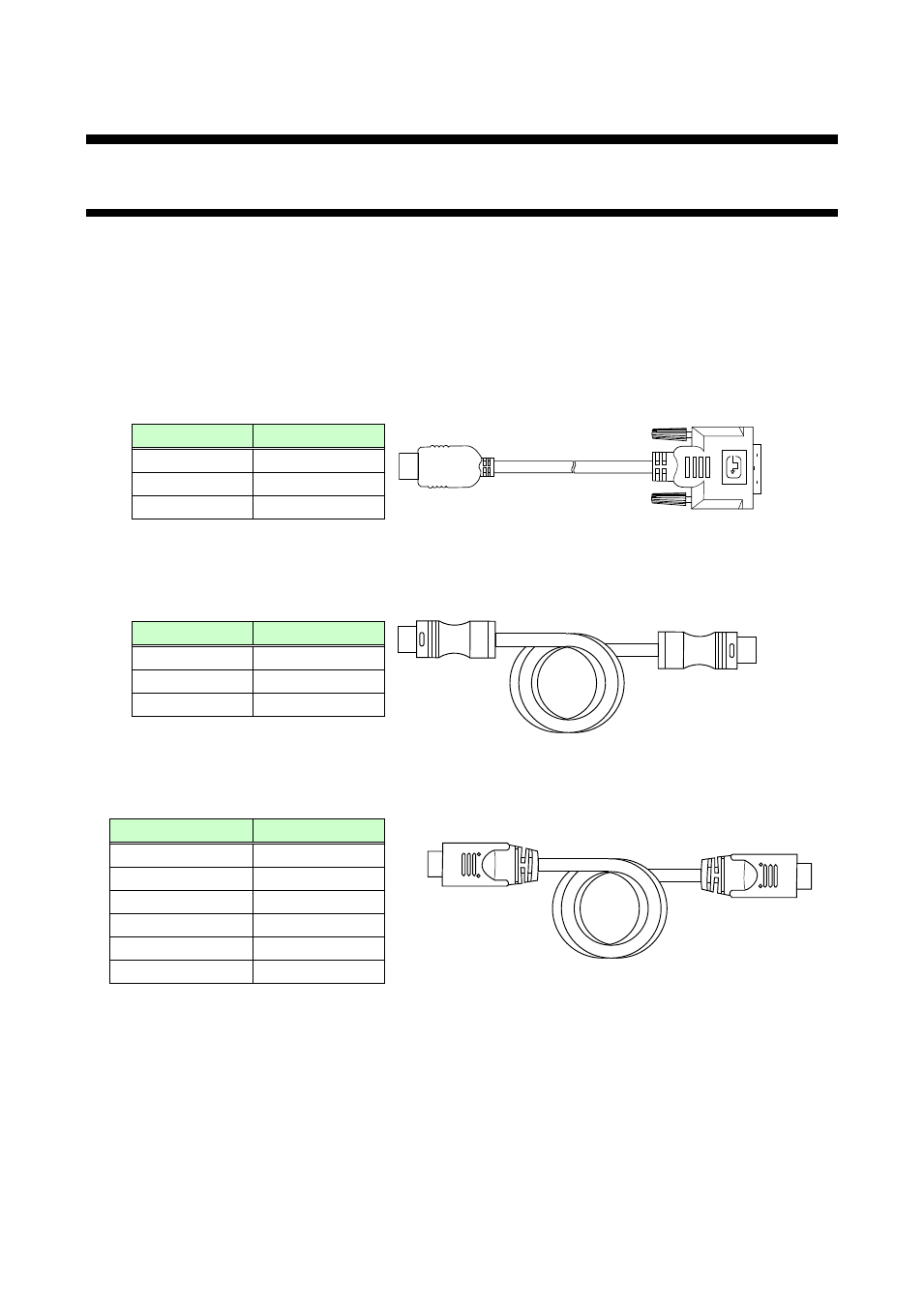

[Fig. 5.1] Conversion cable (HDMI-DVI conversion)
[Long cable]
If you use 5 m/16.4 feet or longer cable for input/output cable, please use one of the following cables.
Part number Length
HDSS-10 10 m/32.8 feet
HDSS-15 15 m/49.2 feet
HDSS-20 20 m/65.6 feet
[Fig. 5.2] HDMI long cable (Flexible model)
The following cables are also available.
Part number Length
HDMI/HDMI24-10 10 m/32.8 feet
HDMI/HDMI24-15 15 m/49.2 feet
HDMI/HDMI24-20 20 m/65.6 feet
HDMI/HDMI24-30 30 m/98.4 feet
HDMI/HDMI24-40 40 m/131.2 feet
HDMI/HDMI24-50 50 m/164 feet
[Fig. 5.3] HDMI long cable (Standard model)
