3

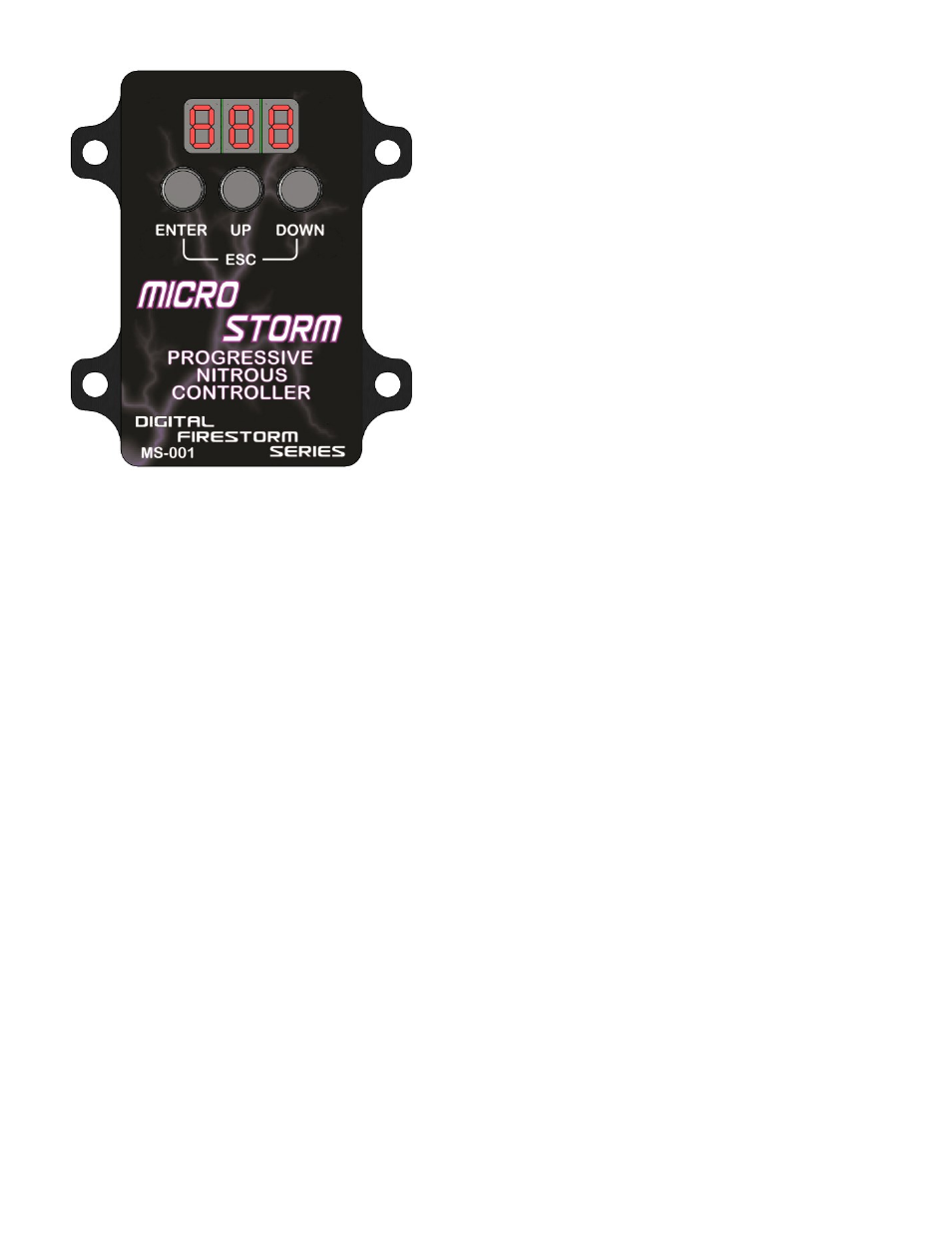

Programming button description.
ENTER—Accept and enter programming mode.
UP—Increment value up or change selection.
DOWN—Decrement value down or change selection.
ESC—Press “ENTER” + “DOWN” for ESC key.
COMBO—Press “UP” + “DOWN” for COMBO key.
Parameter list, (G) = global, (C) = current setup.
1—(G) Current active setup, 5 available
2—(C) Nitrous delay time, Stage1
3—(C) Nitrous start percent, Stage1
4—(C) Nitrous final percent1, Stage1
5—(C) Nitrous build time1, Stage1
6—(C) Nitrous delay time, Stage2
7—(C) Nitrous start percent, Stage2
8—(C) Nitrous final percent1, Stage2
9—(C) Nitrous build time2, Stage2
10—(G) Resume mode, Hold & Wait or Reset
(Reset = 0, Hold & Wait = 1)
11—(G) Main timer period, 20 to 300 seconds
12—(G) TPS enable, use TPS signal for activation
(Disable = 0, Enable = 1)
13—(G) TPS closed throttle volts, manual adjust
14—(G) TPS wide open throttle volts, manual adjust
15—(G) TPS percentage for activation, 70% to 100%
16—(G) Set TPS closed & WOT voltage with Live data
17—(G) Stage1 solenoid pulse frequency, 10 to 40 Hz
18—(G) Stage2 solenoid pulse frequency, 10 to 40 Hz
19—(G) Tach signal input frequency
20—(G) Nitrous ON rpm
21—(G) Nitrous OFF rpm
22—(G) Timer/Shift Light Output Select
(Timer = 0, Shift Light = 1)
23—(G) Timer delay or Shift RPM
24—(G) Turn dual ramp option ON/OFF
(OFF = 0, ON = 1)
Dual ramp optional parameters
25—(C) Nitrous final percent2, Stage1
26—(C) Nitrous build time2, Stage1
27—(C) Nitrous final percent2, Stage2
28—(C) Nitrous build time2, Stage2
