Page 6.

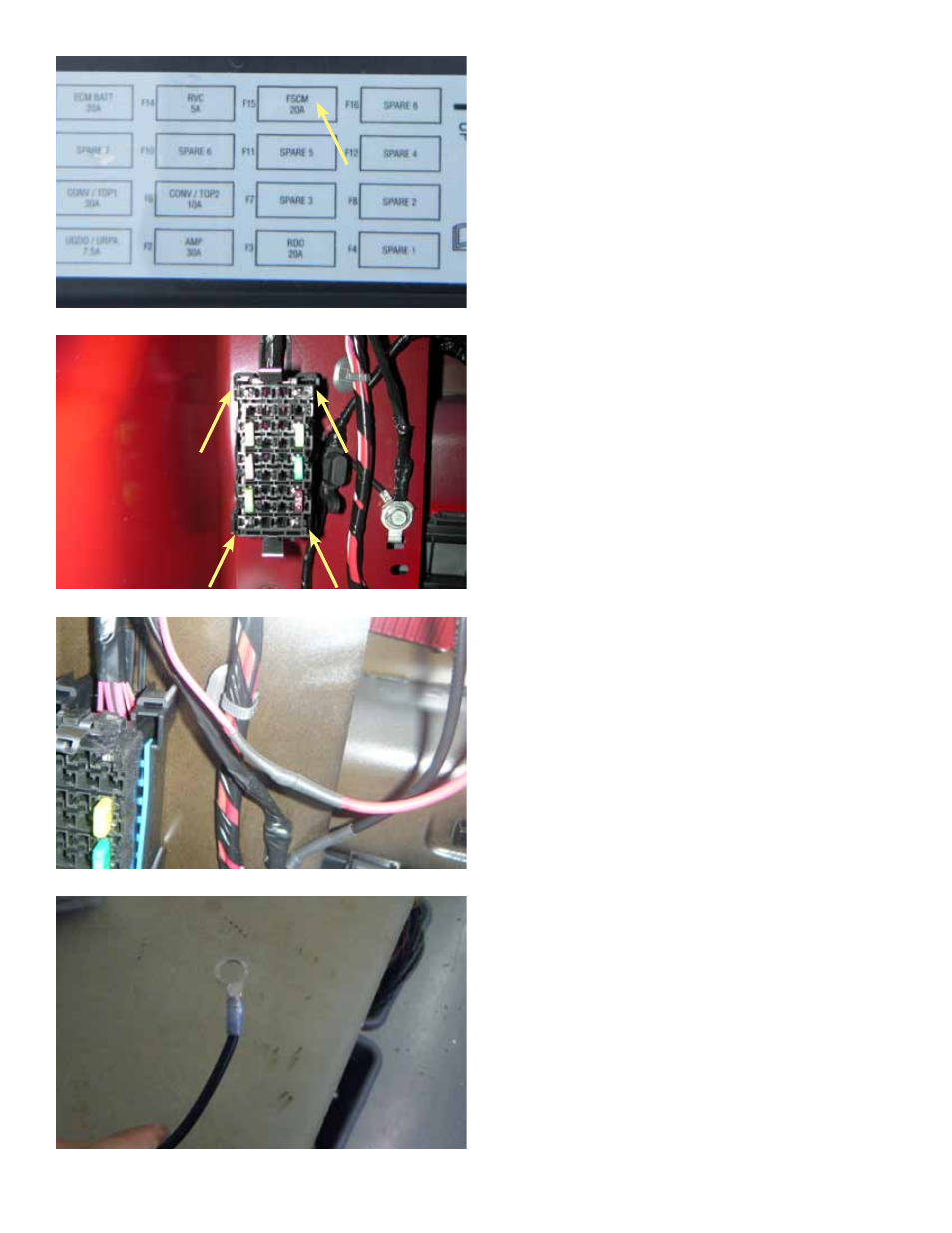

13. In the passenger side trunk of the car,
remove the fuse box cover and locate the
FSCM fuse on the fuse box cover and remove
that fuse from the fuse box.
14. Using a small screwdriver, pop the fuse
box out of it’s base and, using a pin tool
remove the RD/WH FSCM wire from pin
location D6. cut the terminal off and strip the
end of the wire.
16. Install the insulated ring terminal to the
ground wire on the Boost-A-Pump (BAP)
module.
15. Locate the red output wire from the BAP
module (not the battery feed wire). Cut to
length, splice, solder and heat shrink it to the
RD/WH FSCM wire.
