Page 9.

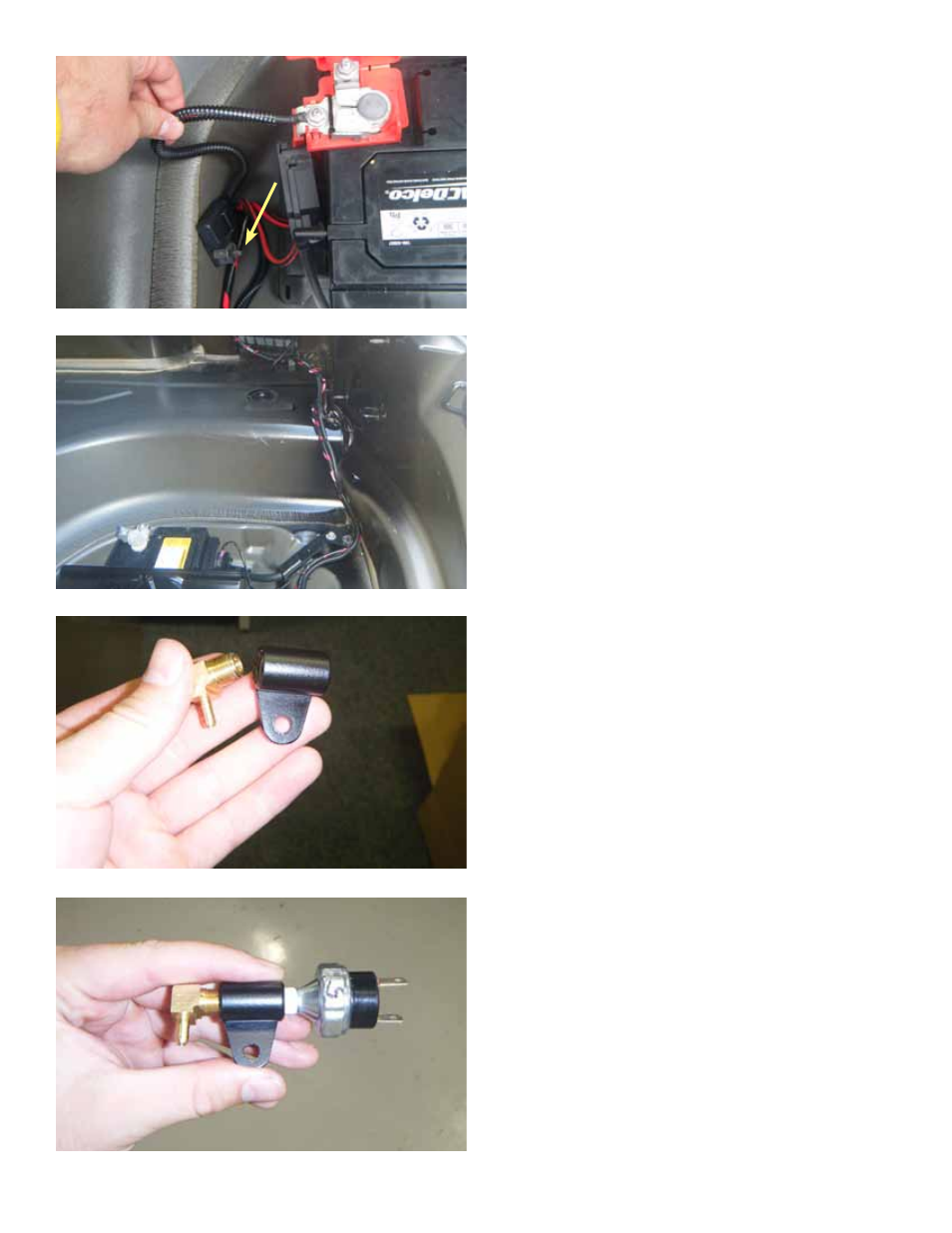

27. Install the 90 degree 1/8” pipe nipple into
the BAP pressure switch bracket and face
the nipple down as shown. Be sure to install
thread sealant on the pipe threads.
28. If you are installing the BAP into a boosted
application, install the supplied pressure
switch into the other side of the BAP pressure
switch bracket.
If you are installing the BAP on a naturally
aspirated application, install the vacuum
switch (part # MAM-LF20-V-211110-S) onto
the bracket in the same way. The vacuum
switch does not come with the BAP kit and
must be purchased separately from LPE.
See the optional parts list on page 1.
25. Install the in-line fuse connector as shown
and connect the ring terminal from the power
wire to the battery.
26. Wrap the wire in the supplied high temp
black loom. Zip tie the power wire to factory
wiring harness to hold it into place,
