Page 11.

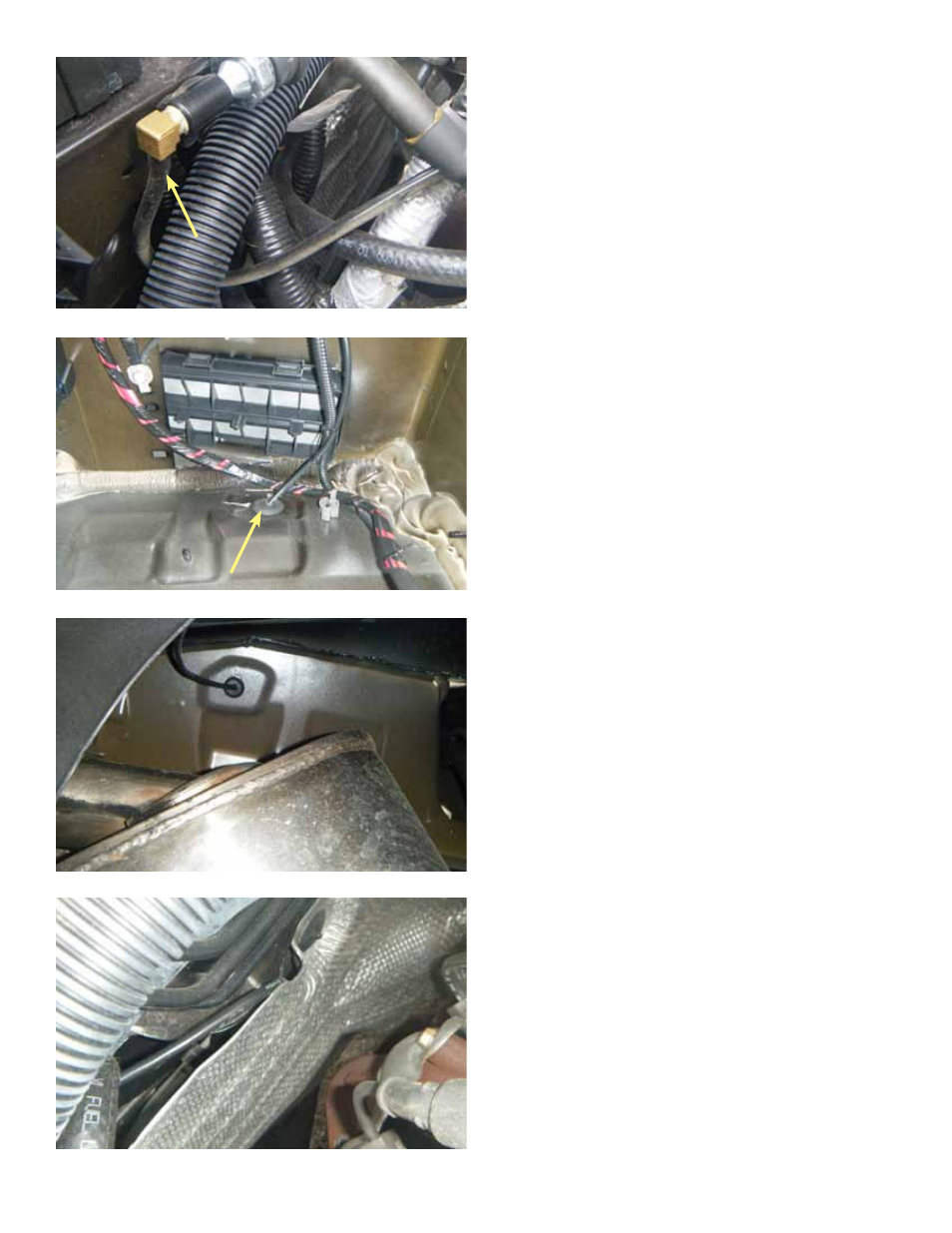

34. This is located over the muffler on the
passenger side underneath the vehicle.
35. route the wire up to the front of the
vehicle, tie wrapping it around the fuel lines
every 1-2 feet. Route the wire behind the
heat shield, as shown, to the pressure or
vaccuum switch.
33. Locate the rubber grommet in your trunk
located on the passenger side next to the
vent. Drill or cut out the center as shown.
Slide the end of the activation cable, with
red and black wires from the BAP module,
down through the drilled or cut hole in the
grommet.
32. Guide the vacuum hose under the fuel rail
and along the top of the cylinder head directly
under the wiring harness. Install the hose to
the 90 degree nipple.
NOTE: High boost applications should use a
Oetker hose clamp.
