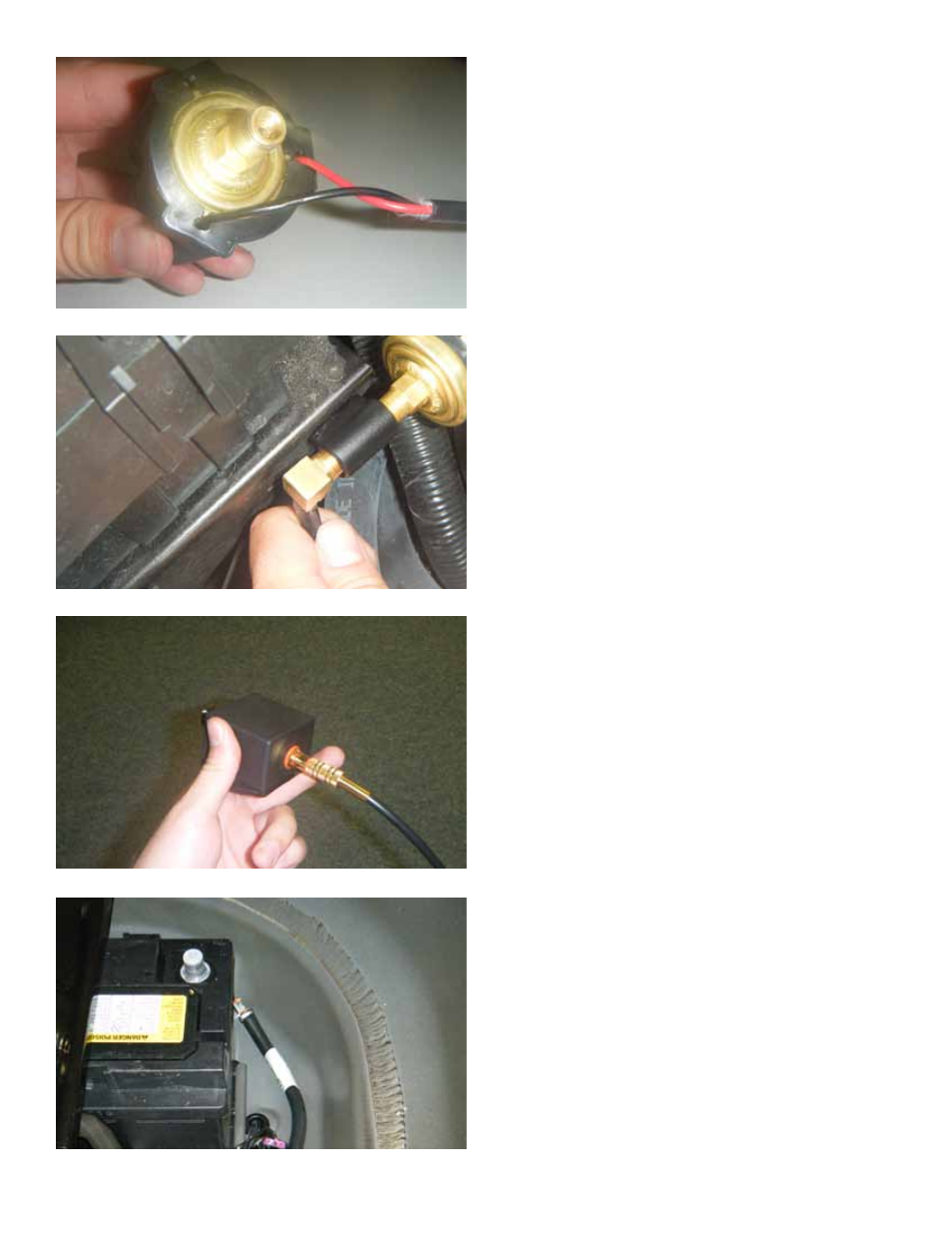

background image

Page 13.

42. NOTE: if you are installing the

variable voltage increase adjustment

knob shown to the left, simply connect

the RCA type connector to the back

of the adjustment module as shown,

and install it at any place inside of the

vehicle. Secure the adjustment module

with hook and loop tape or self tapping

screws in an easy to access location.

43. Re-install your negative battery terminal

to your battery and your interior in your trunk

Removed in step 1. Remove your jack and

jackstands and start your vehicle.

You have completed the installation process.

41. connect one end of the vacuum hose to

a manifold vaccuum source. Route the hose

safely away from heat and moving parts and

connect to the 90 degree 1/8 inch nipple. At

this point you should have the bracket and

vacuum line installed, wiring installed and the

cover on the end of the vacuum switch.

40. Install the vacuum switch cover (part #

720-32020A) onto the vacuum switch in the

position shown. Run the wires out of the

opening on the bottom of the cap.
