Page 4.

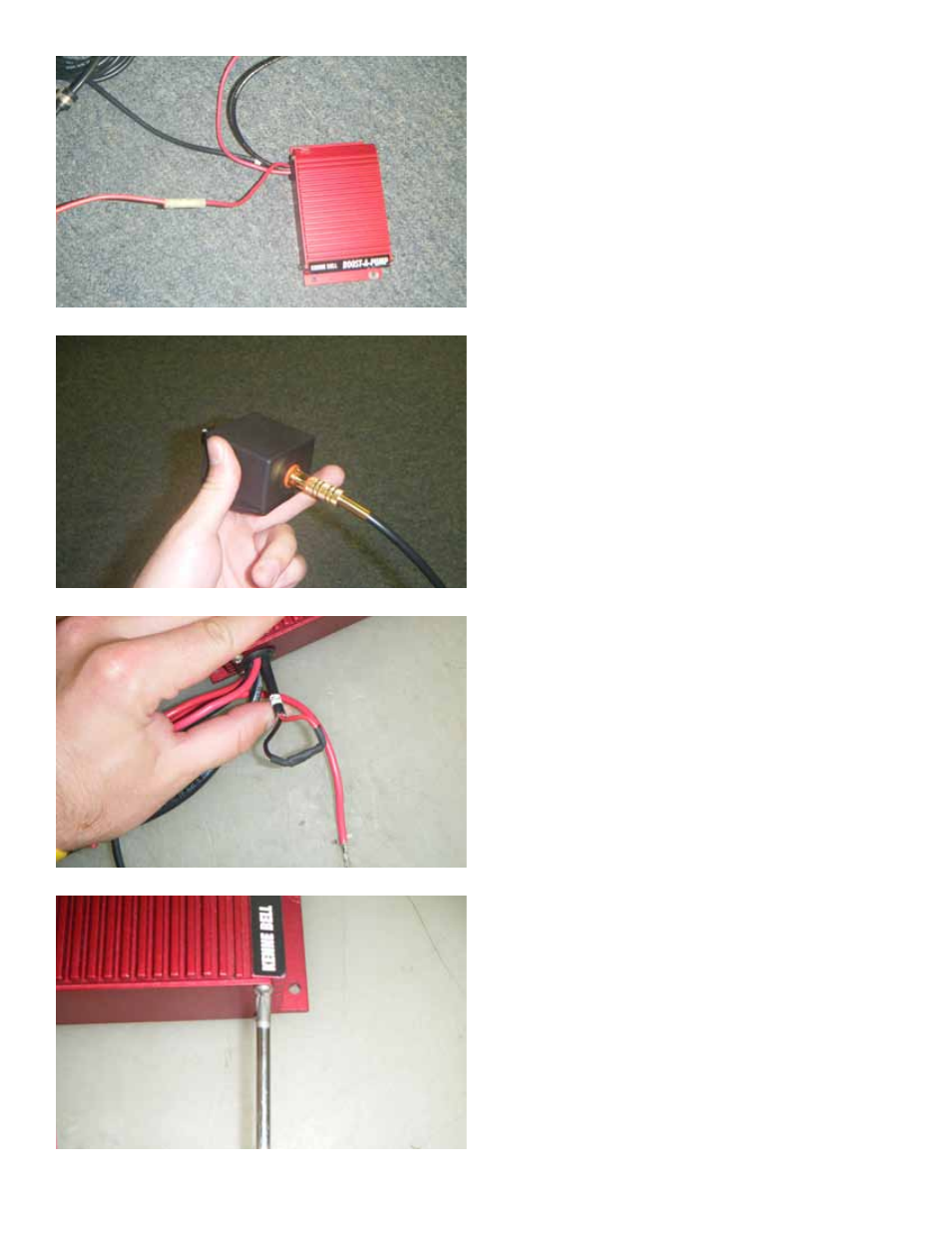

5. Using the supplied butt connector, splice
the end of the 7’ 12ga wire to the battery
feed wire. We will be installing a different fuse
holder on this wire later in the instructions.
6. Steps 7 through 10 are recomended,
if you want to have a consistant, fixed
voltage increase when voltage boosting
is activated.
Optionally, if you would like to be able
to adjust the voltage increase, using the
supplied knob, skip to step 11.
7. Cut the thick black cable, with the gold
RCA type connector, off about 2-3in from
the BAP. Solder and heat shrink the two (2)
smaller wires inside together as shown.
Optionally, solder a resistor between them
for a fixed voltage below the max of 17v. the
higher the resistance the lower the voltage
The LPE twin pump requires a 6.5k or higher
resistor or too much current will be drawn
through the BAP.
8. Using a screwdriver, remove the four (4)
screws from the side plate.
