Page 21.

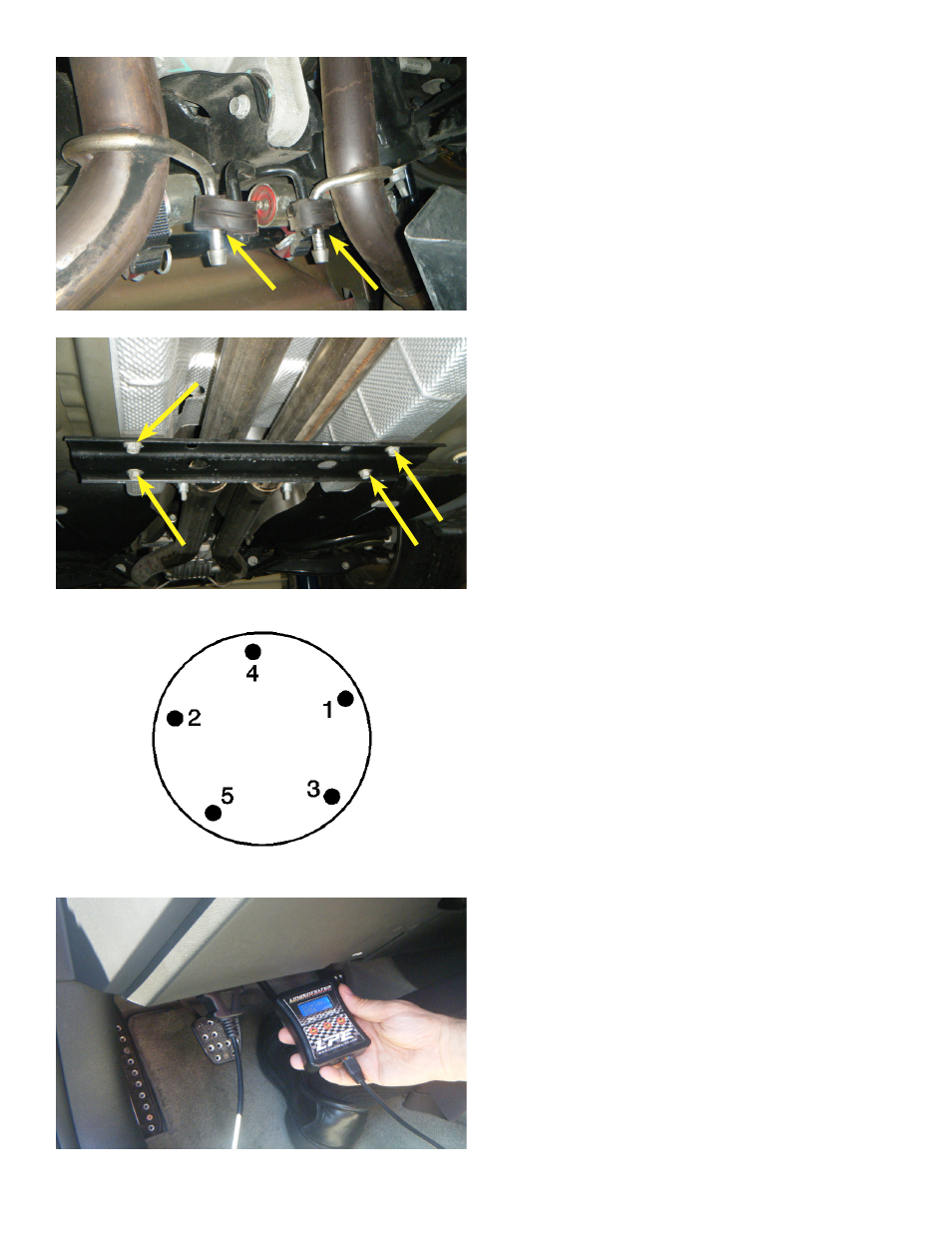

73. Re-install the chassis stiffening bracket by

re-installing the four (4) bolts shown. Torque the

bolts to 18 ft-lbs (for a Camaro coupe) or 43 ft-lbs

(for a Camaro convertible).

74. Re-install the rear wheels. Torque these

bolts to 122 ft-lbs in a 5 point star pattern.

75. On manual transmission equipped

vehicles, recalibration of the ECM is only needed

on ratios higher than 3.73:1. On automatic

transmission equipped vehicles recalibration of

the ECM and the TCM is required for all ring and

pinion ratio changes.

72. Re-install the rubber exhaust holders onto

the barbs as shown.
