Lingenfelter L380xx1410 Lingenfelter Camaro Cast 241 MM Aluminum Differential 2010-12 v1.9 User Manual
Page 18
Page

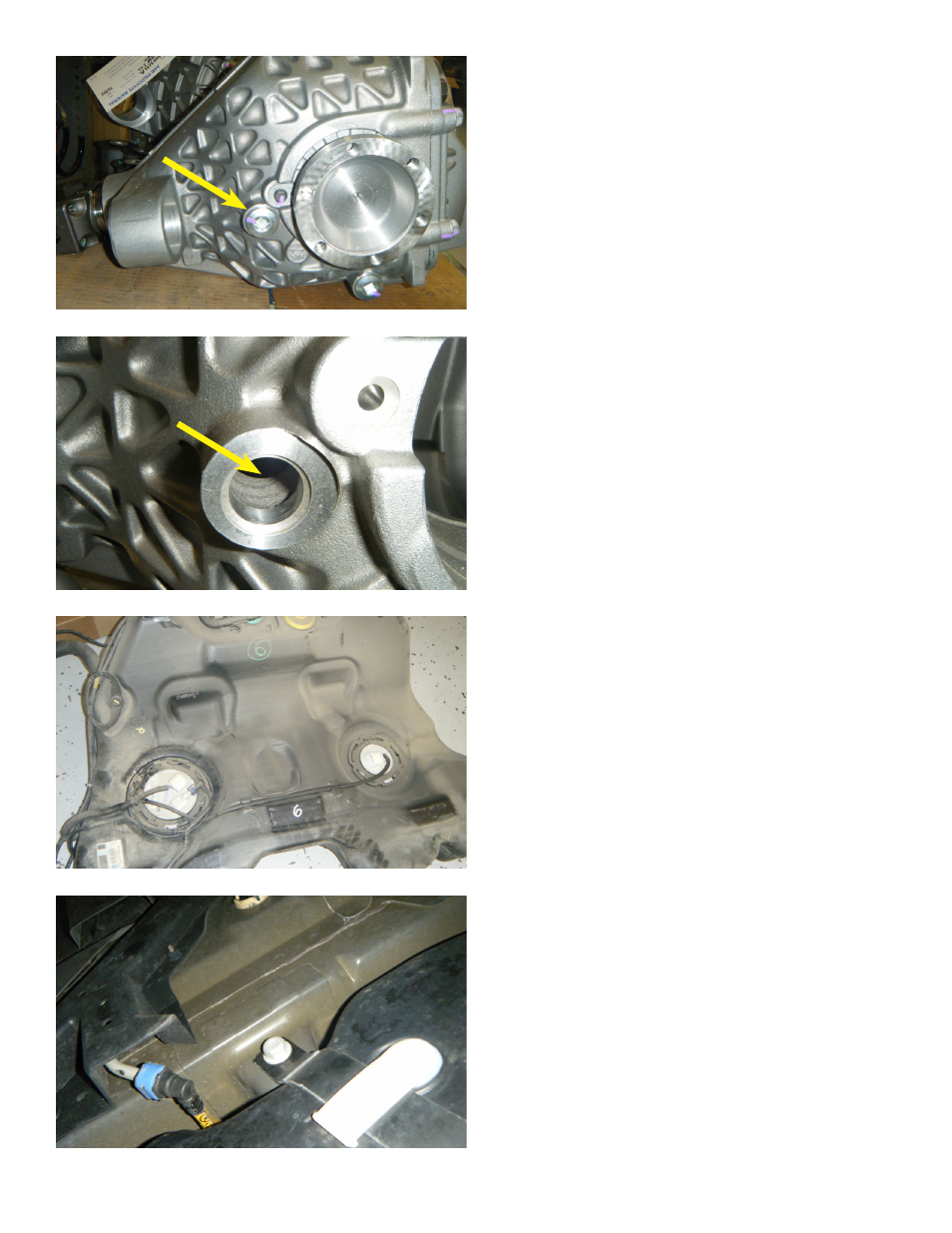

58. Install the tank back into its original
location. You will need someone to help you with
this step in order to hold the tank in the correct
position.
59. Re-install the OEM brackets around the
gas tank holding it in position. It is supported by
the four (4) 15mm gas tank strap bolts. Torque
the bolts to 37 ft-lbs.
17.
57. The differential oil should be filled to the
drain plug hole. When oil starts to come out of
this plug hole, the casing is full. Install the fill hole
plug bolt (PN: 40039752). This plug is torqued to
24 ft-lbs (33 N-m).
56. Fill the differential with differential oil.
Recommended fluid is the GM factory 75W90
synthetic differential fluid (PN: 9986226).
