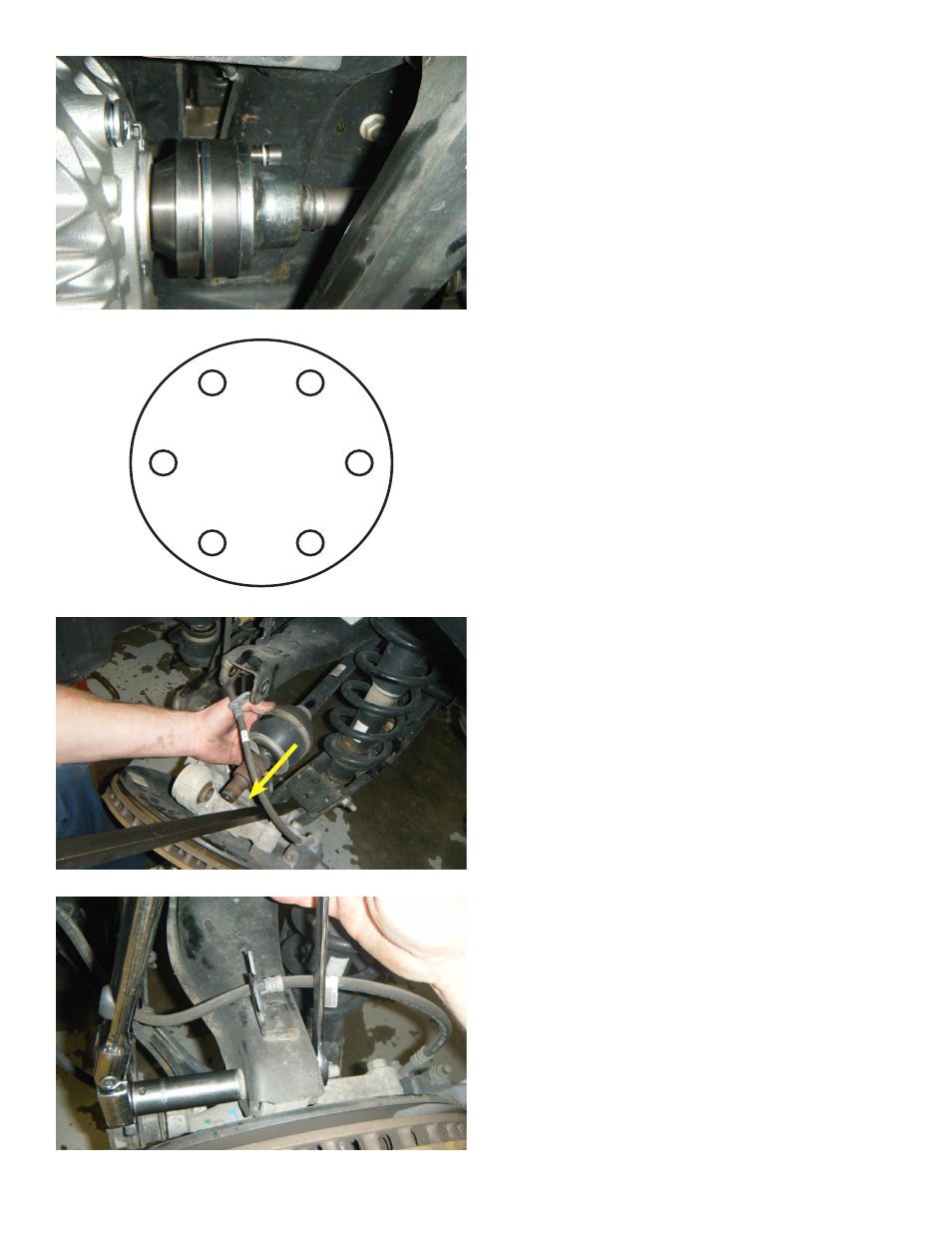

50. Re-install the axle shaft into the wheel hub
assembly.
51. Using a 18mm socket, ratchet, and
wrench, install the bolt to the upper control arm.
Torque the bolt to 44 ft-lbs and then rotate an
additional 90 degrees.
15.
49. Mount the axles to the differential output
flange and secure with the cap screw/lock
washer combination. Torque the six fasteners
per side to 55 lb-ft using the tightening pattern
shown in the adjacent illustration.
48. Lightly lubricate the threads of the
M10-1.5x55mm socket head cap screws
(PN:91290A534) with oil and then install the
Nord-Lock washers on the cap screws. Be sure
that you are installing a mated pair of the locking
washers as shown in step 47. Check to make
sure that there is sufficient thread engagement
between the axle and the differential.
1
6 5
4
3
2
