46. Install the new axles into position. It may

require the help of an assistant.

47. The supplied Nord-lock washers are a

special type of locking washer. This washer is

used on the axle bolts for its ability to keep bolts

tight and secure. The illustration shows how the

Nord-lock washers lock the bolts in place.

NOTE: The bolts and washers supplied in the

LPE kit are intended for use with the LPE half-

shafts. Other half-shafts may require different

bolt lengths.

14.

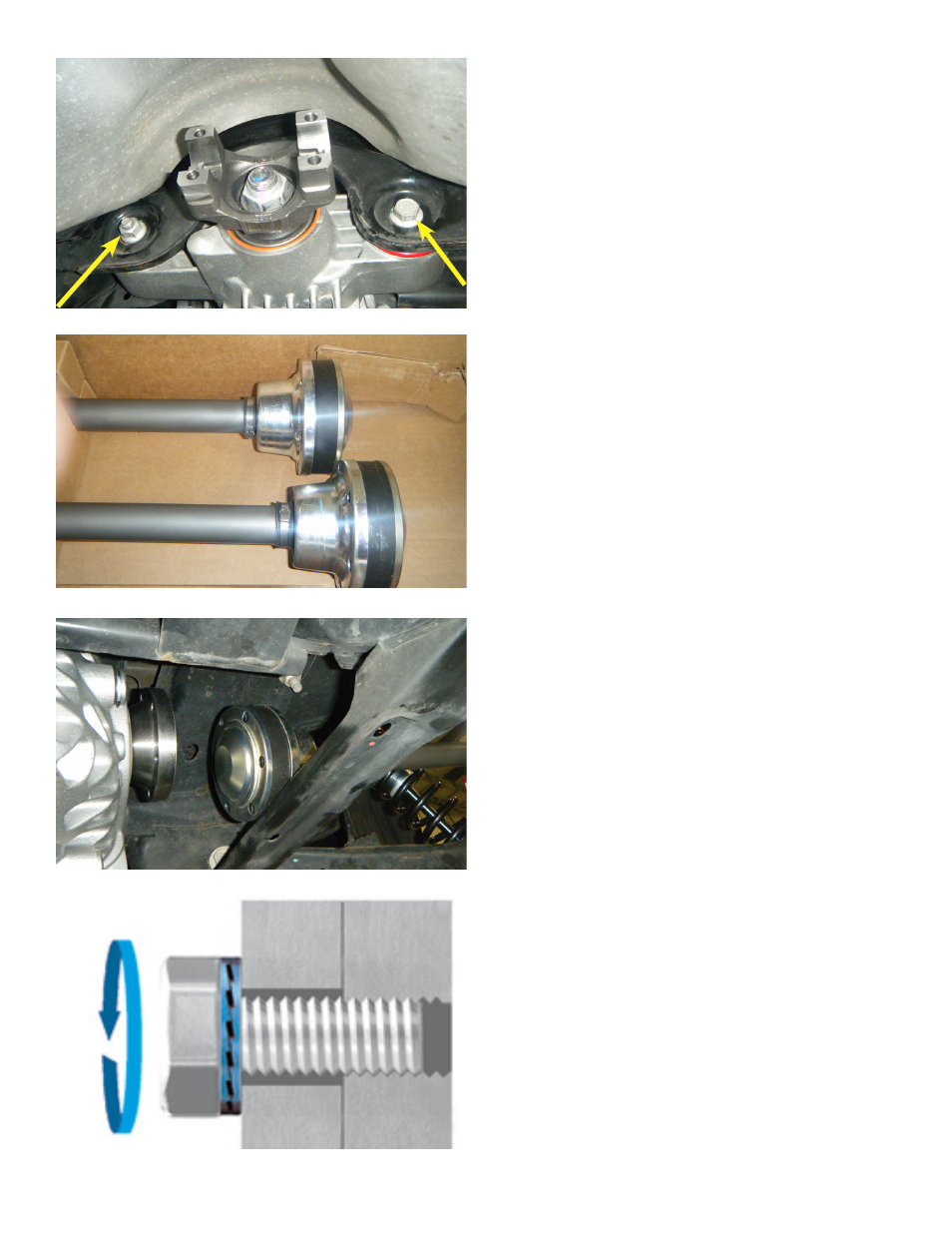

44. Once the differential is set in place, use an

18mm socket, wrench and ratchet to install the

three (3) mounting bolts and nuts (the two front

bolts shown by the arrows and the rear bolt not

pictured). Tighten these bolts to 59 ft-lbs.

45. The shorter axle is the passenger side

axle and the longer axle is for the driver side.
