Lingenfelter L320061410 Lingenfelter High Capacity Intercooler Heat Exchanger Camaro SS & ZL1 v1.1 User Manual
Page 9
Page

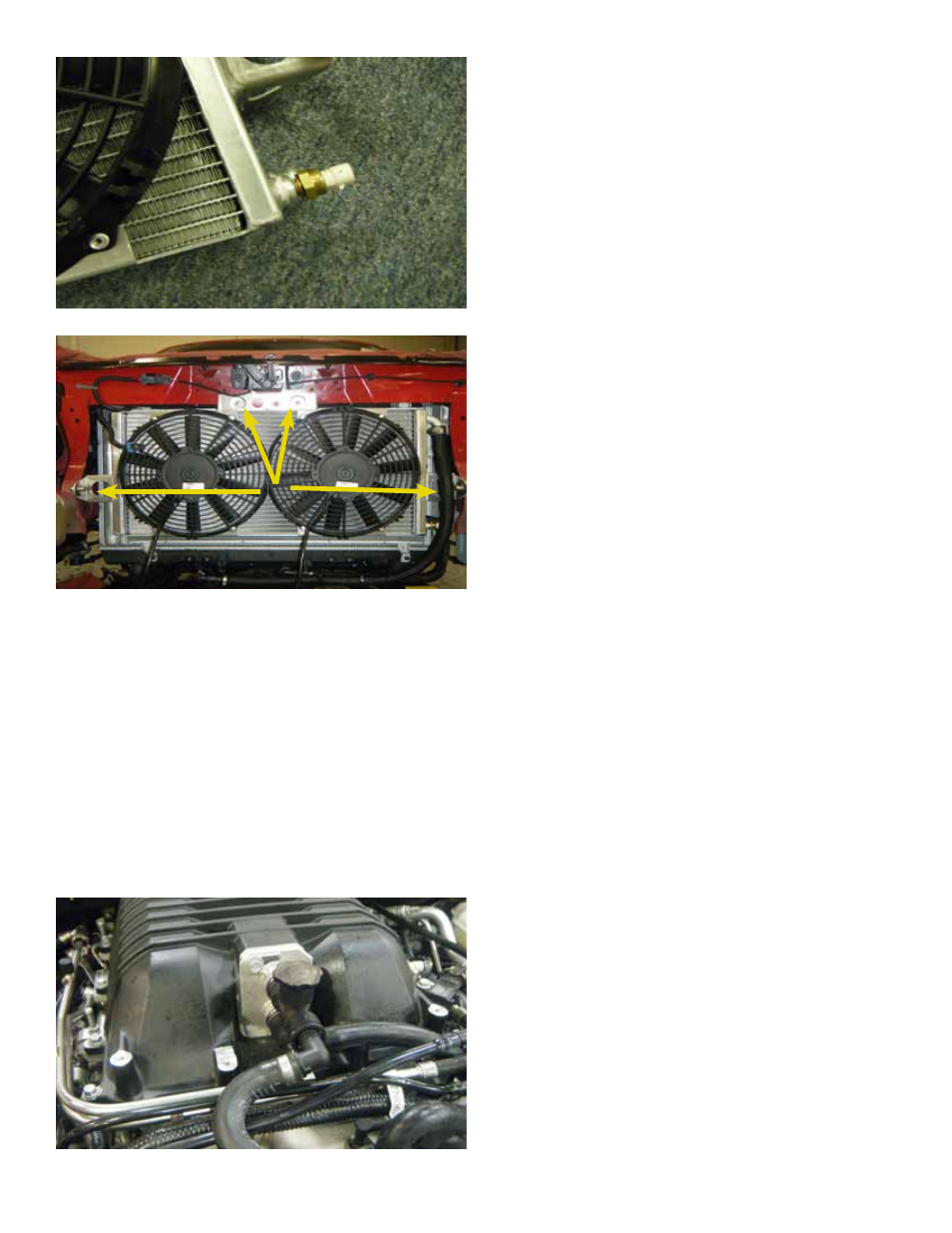

21. Install the supplied coolant temperature
sensor (PN:12608814) and tighten to 14 lb-ft
(20 Nm) using a 3/4” wrench or deep socket.
22. Install the supplied intercooler radiator
assembly (PN:XX05847-0002), place the
washers on the bolts and using a 6mm Allen
wrench, install the two top M8x1.25x20
stainless steel cap screw (PN:47543)
loosely. Then using a 13mm socket and
6mm Allen wrench install the two side
M8x1.25x25 stainless steel cap screws
and stainless steel Nylock (PN’s:47544
and 47214 respectively) loosely. Make sure
there is a washer between the bolt head and
rubber grommet.
23. Check the clearance to the AC condenser.
Use the provided washers to space out the
top as need. Do not tighten the bolts yet
however.
24. Connect the radiator outlet hose, bottom of
the intercooler radiator, to the top fitting of
the stock ZL1 supercharger.
8.
