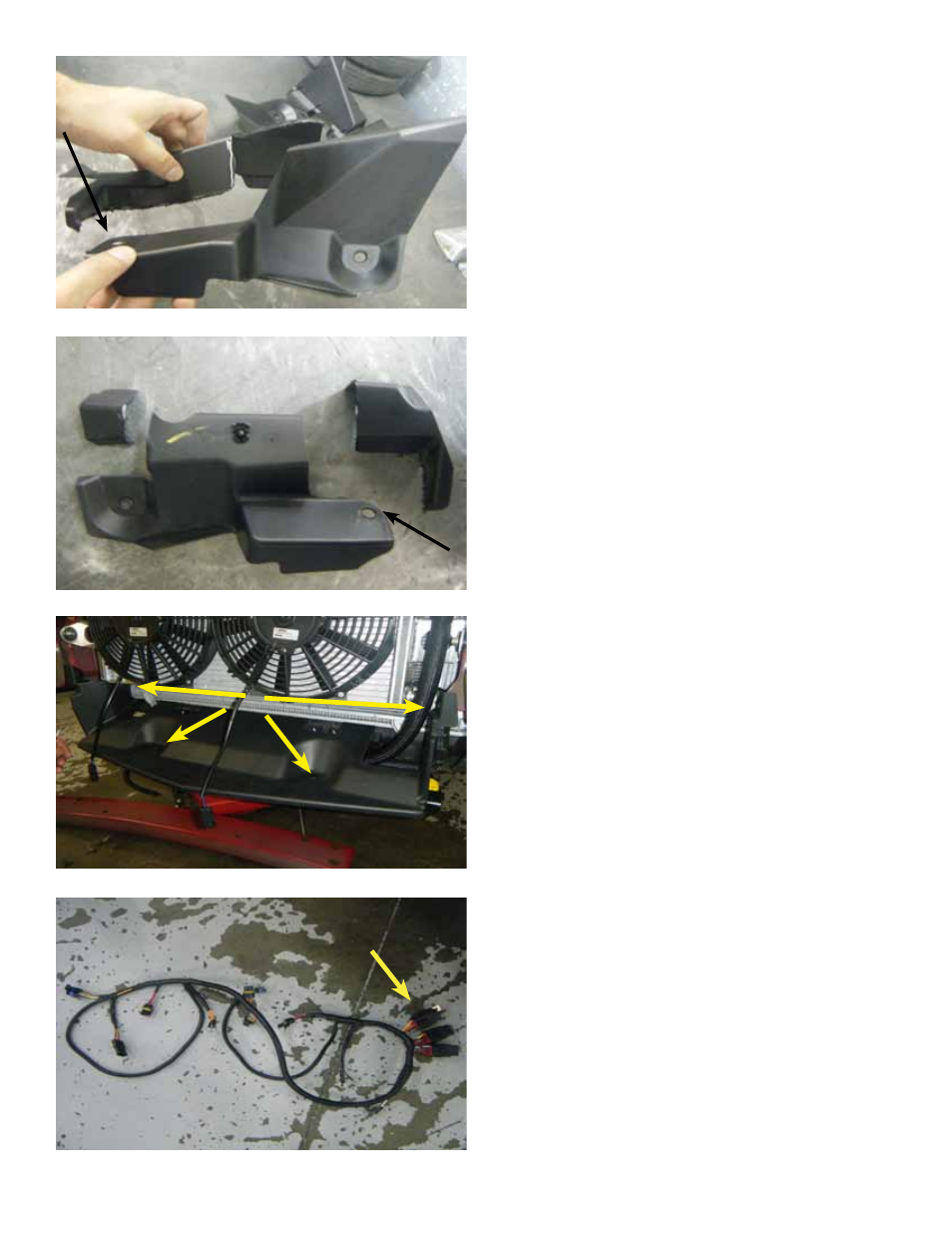

29. Next is cutting the passenger side shroud,

the one holding the air temperature sensor.

Cut the part as shown here.

Then sand the part to smooth out the edges,

and round the lower corner by the mounting

hole as shown by the arrow.

30. The cut the driver side shroud as shown.

Then sand the part to smooth out the edges,

and round the lower corner by the mounting

hole as shown by the arrow.

31. Install the bottom air dam as shown, and

push in the plastic retaining clips as marked.

32. Unwrap the wiring harness

(PN:XX05636-0002) and inspect it for

damage. Then rotate the three relays so

they are all aligned in the same direction.
