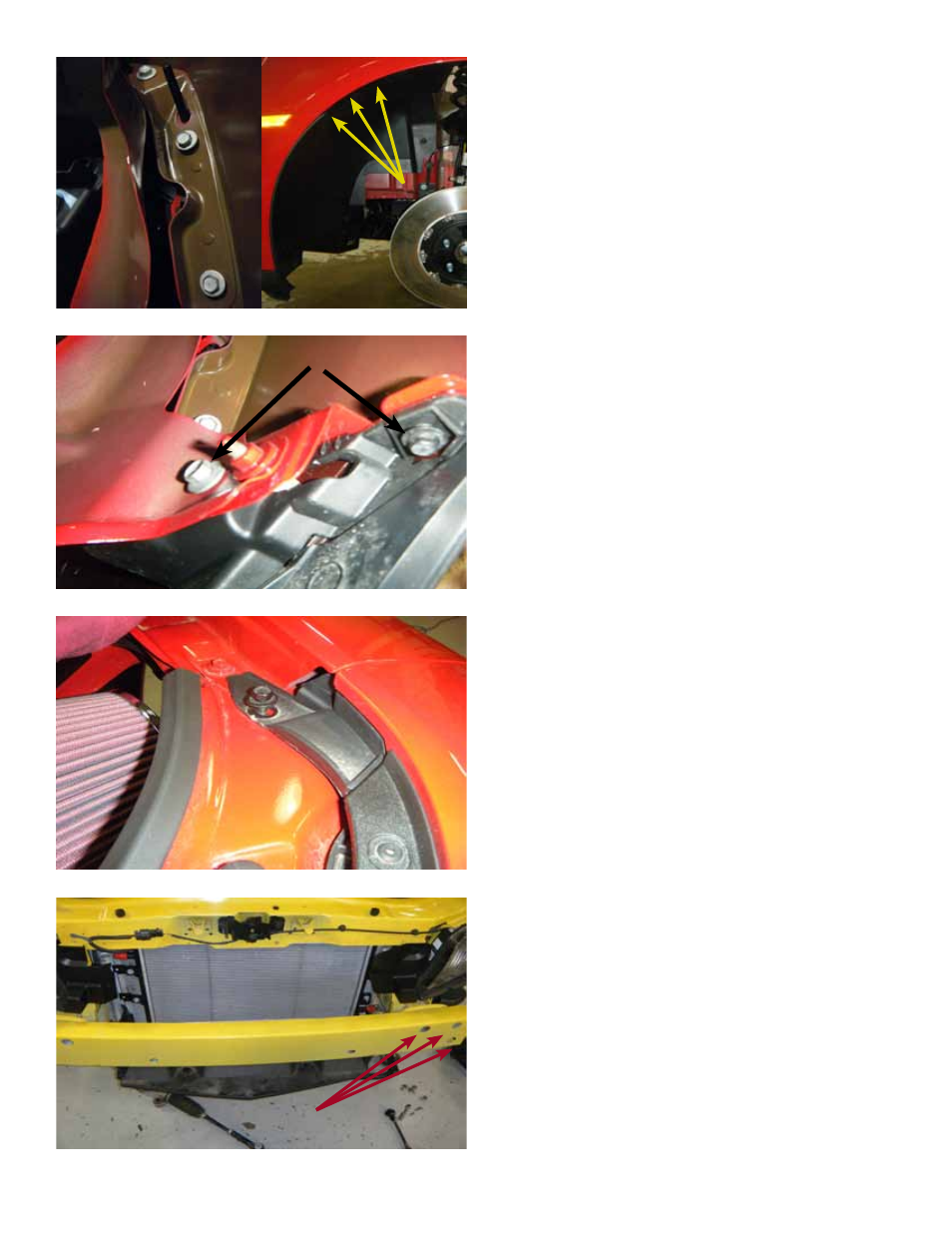

9. Using a 10 mm wrench remove the 3 bolts
on each side of the car that are in the top
front area of the fender well.
10. Using a 10 mm socket, remove the bolt and
screw on the side of the facia, accessed
from the wheel well. Repeat on the other
side of the car.
11. Finish Removing the corner screws on top
of the front facia, and then carefully remove
the front facia from the car and set it in a
secure area to prevent accidental damage
from occurring.
12. Using a 13mm socket remove the six bolts
holding on the front impact bar, three each
side. Then remove the front impact bar.
