33. Lay the harness out over the intercooler,
running the longer tail back into the engine
bay from the passenger side, and the
shorter end out over the intercooler to
the drivers side. The relays should be
positioned on the passenger side as close to
the hood latch as possible.

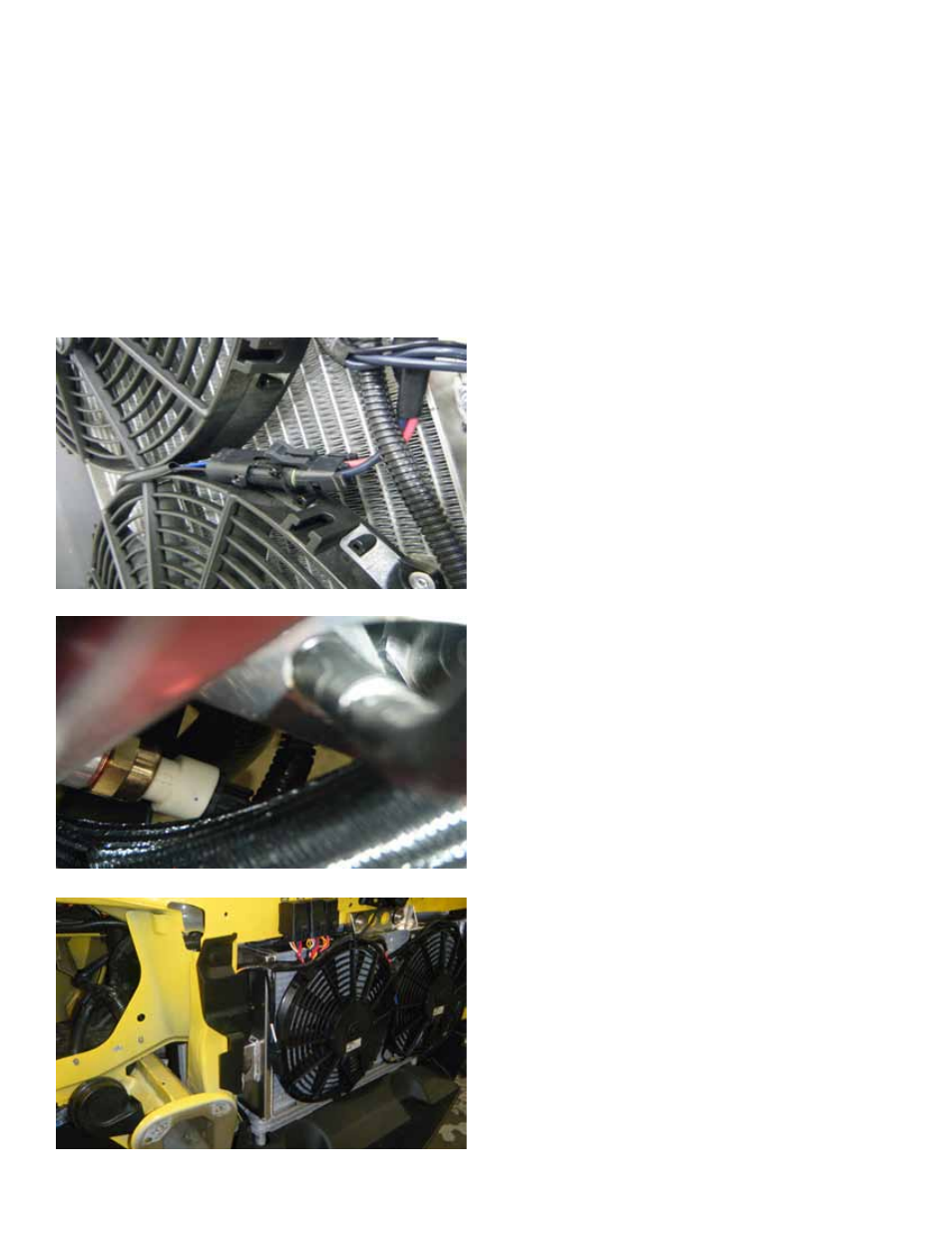

34. With the harness laid out, connect the two
fans to the harness.
35. Connect the intercooler coolant temperature
sensor.
36. Route the wires in a suitable manner. It
is recommended to try to keep the wires
as much out of the way of the intercooler,
such as around the intercooler, as possible,
this will help get more air flow through the
radiators.
