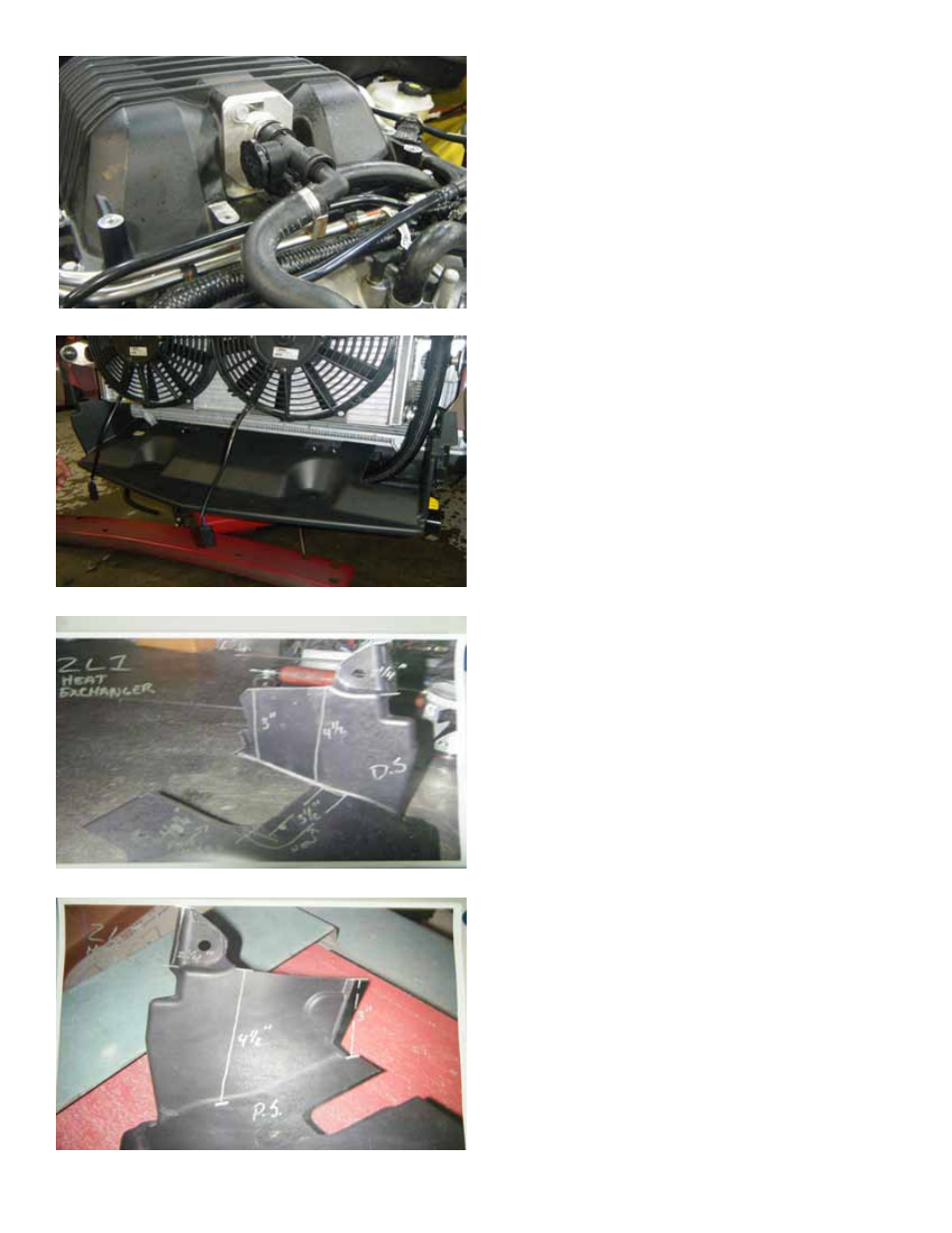

25. Turn the 90 degree fitting on the hose
from the supercharger 90 degrees. Then
connect the given section of hose. Route
in desired location, trim the hose to length,
and connect to the elbow at the top of the
intercooler.
26. The plastic shrouds that were surrounding
the stock intercooler must now be cut to fit
the new Lingenfelter intercooler radiator.
First start with the bottom air dam.
Note: It is not recommended to just throw
the plastic away. They are there for air
control to help keep the hot engine bay air
from recirculating through the radiator.
27. Cut the driver side of the air dam to look as
shown (or use the template provided at the
end of these instructions).
28. Cut the passenger side of the scoop to look
as shown (or use the template provided at
the end of these instructions).
