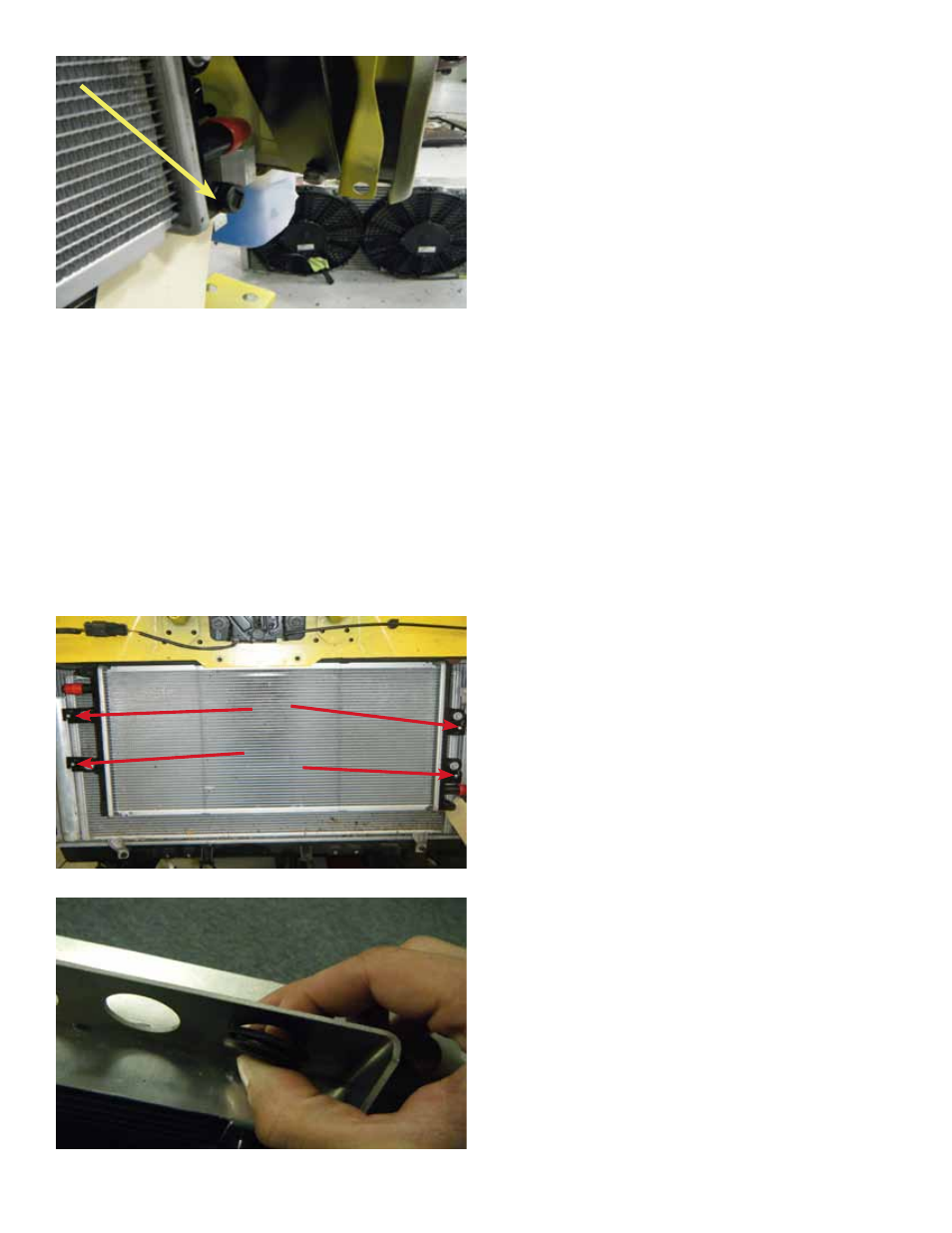

17. For Camaro SS please skip to step 20.

Drain the intercooler by unscrewing the

plug.

Clamp the hoses off before the fittings to

minimize mess and hassle. However, if

the system is due for a flush, drain the full

system by also unscrewing the cap that

is under the plastic manifold cover on the

supercharger.

18. Undo the hose clamps on the hoses that

enter and exit the intercooler, remove the

hoses from the intercooler and plug them

with a 3/4” plug.

19. Using a 10mm socket, remove the 4 bolts

holding the intercooler to the AC condenser

and remove the intercooler from the car.

20. Install the rubber grommets

(PN:9600K48) into the intercooler radiator

(PN:XX05847-0002) by pushing it into the

hole at an angle. Make sure the grove in the

grommet is properly seated in the hole of

the brackets.
