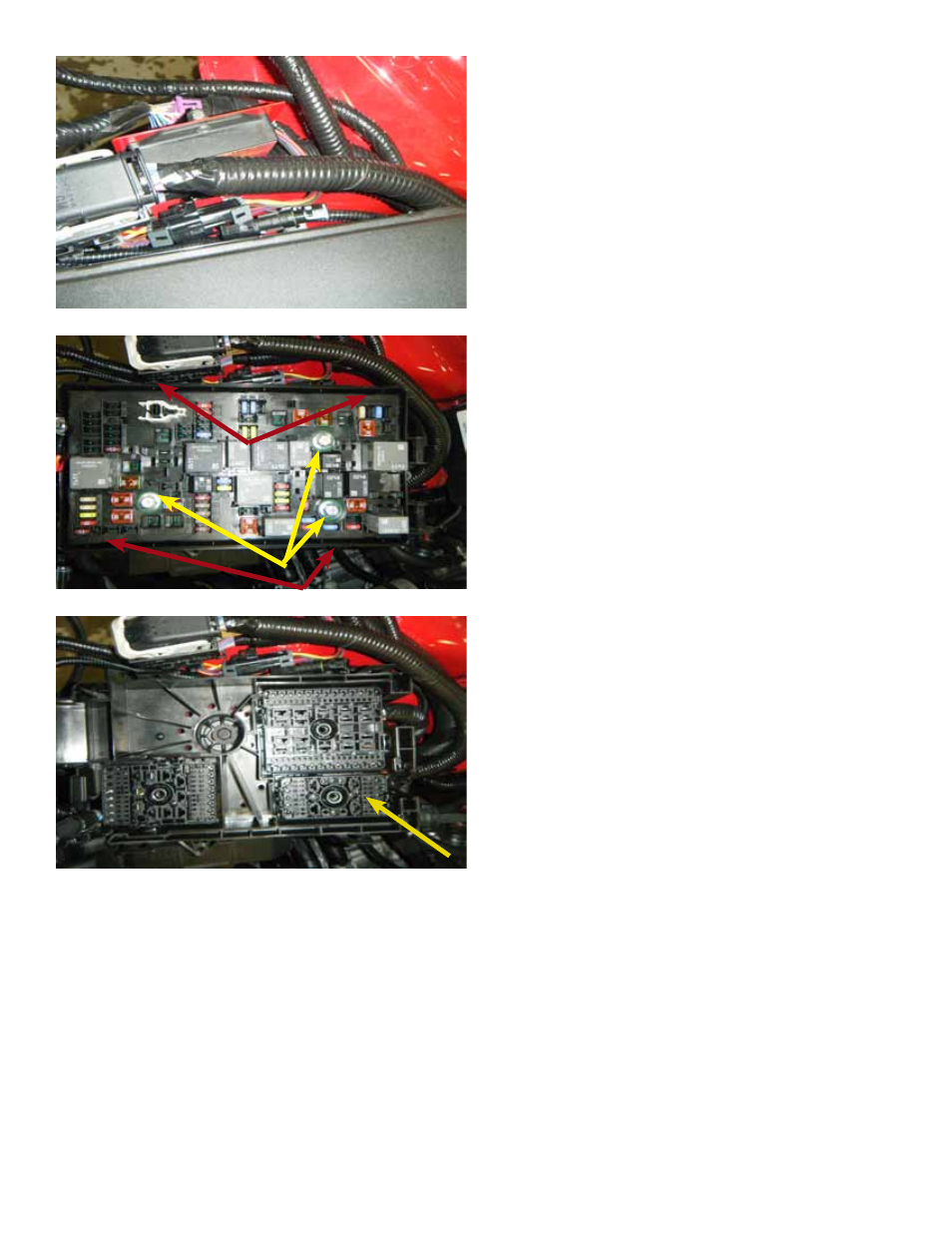

50. Fuse and relay center removal.
Remove the fuse and relay block from its
base by undoing the three bolts on the fuse
block plate and the four tabs, two on each
side. Then, using a socket, push down on
each bolt to release the mating connectors.
51. Strip the lone orange wire and crimp on the
terminal to it.
52. Take out fuse block X3 and turn it over.
15.
49. Stick one side of the hook and loop tape to
the TBRC-001 and the other to the desired
location on the car that was just cleaned.
Place the TBRC-001 there so the two pieces
of tape interlock. Attach the TBRC-001 using
the supplied self tapping screws. Connect
the TBRC-001 to the fan harness.
