Simon XT TableTop Control Panel User Manual

Note: Do not mount the alarm to the metal runners of suspended ceiling grids.
The metal runners can draw the magnet’s field away from the alarm’s reed switch
and cause a false tamper alarm.

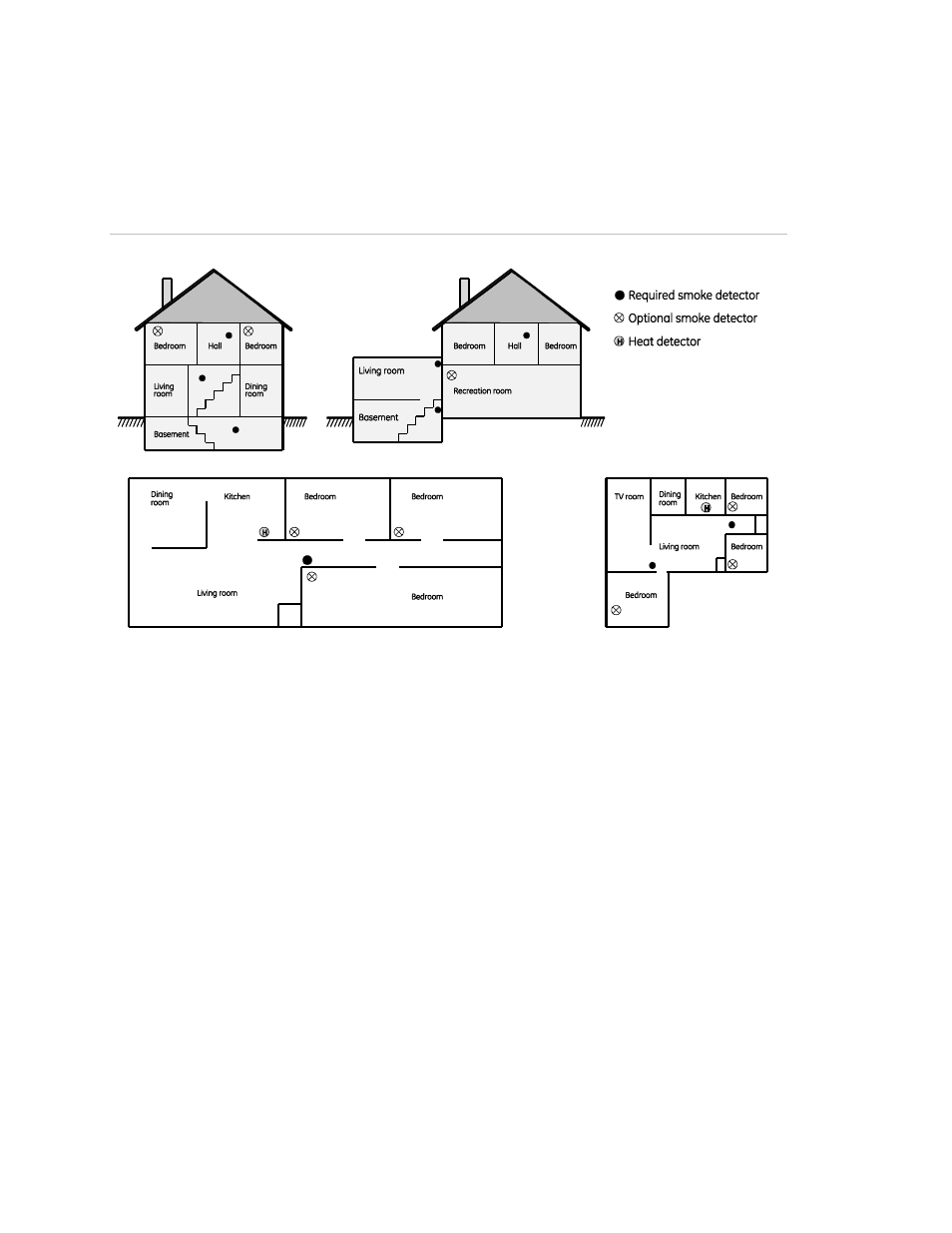

Figure 5: Smoke detector locations

Your floorplan

Use the following guidelines when drawing your floorplan:

• Show all building levels.
• Show exits from each room (two exits per room are recommended).
• Show the location of all security system components.
• Show the location of any fire extinguishers

Sensor and module locations

Use Table 13 on page 49 and Table 14 on page 50 to list your sensor and
module locations.
