Unequal concentrations of H
+
on either side of
the membrane cause the system to equalise
the number of positive ions on either side of the

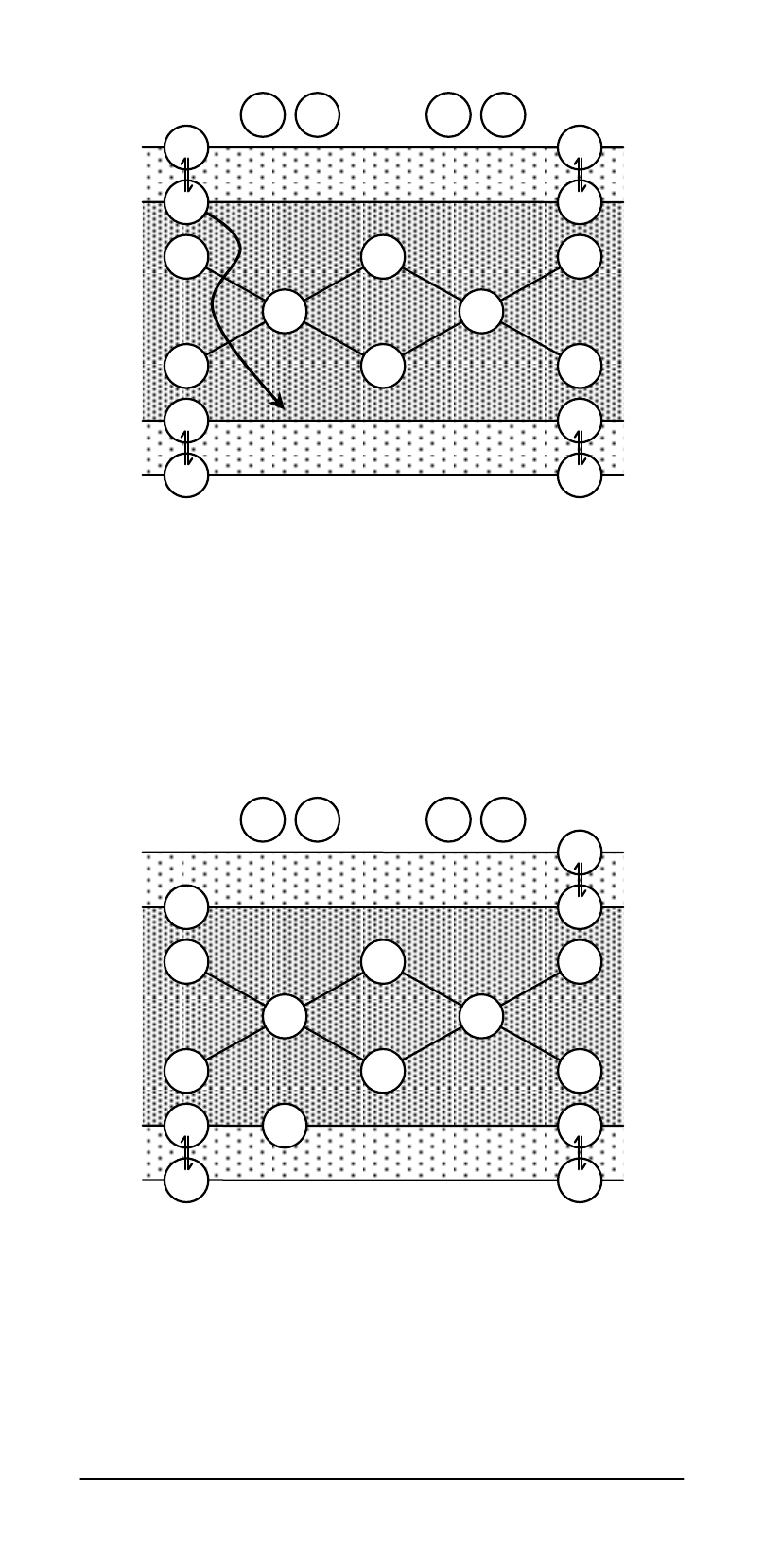

membrane. This causes migration of a lithium
ion through the membrane (see Figure 8).
As the negatively charged oxygen counter ions
are fixed in the glass structure, a potential
develops across the membrane (see Figure 9).
This builds until the charge developed opposes
further migration according to the Nernst
equation.
