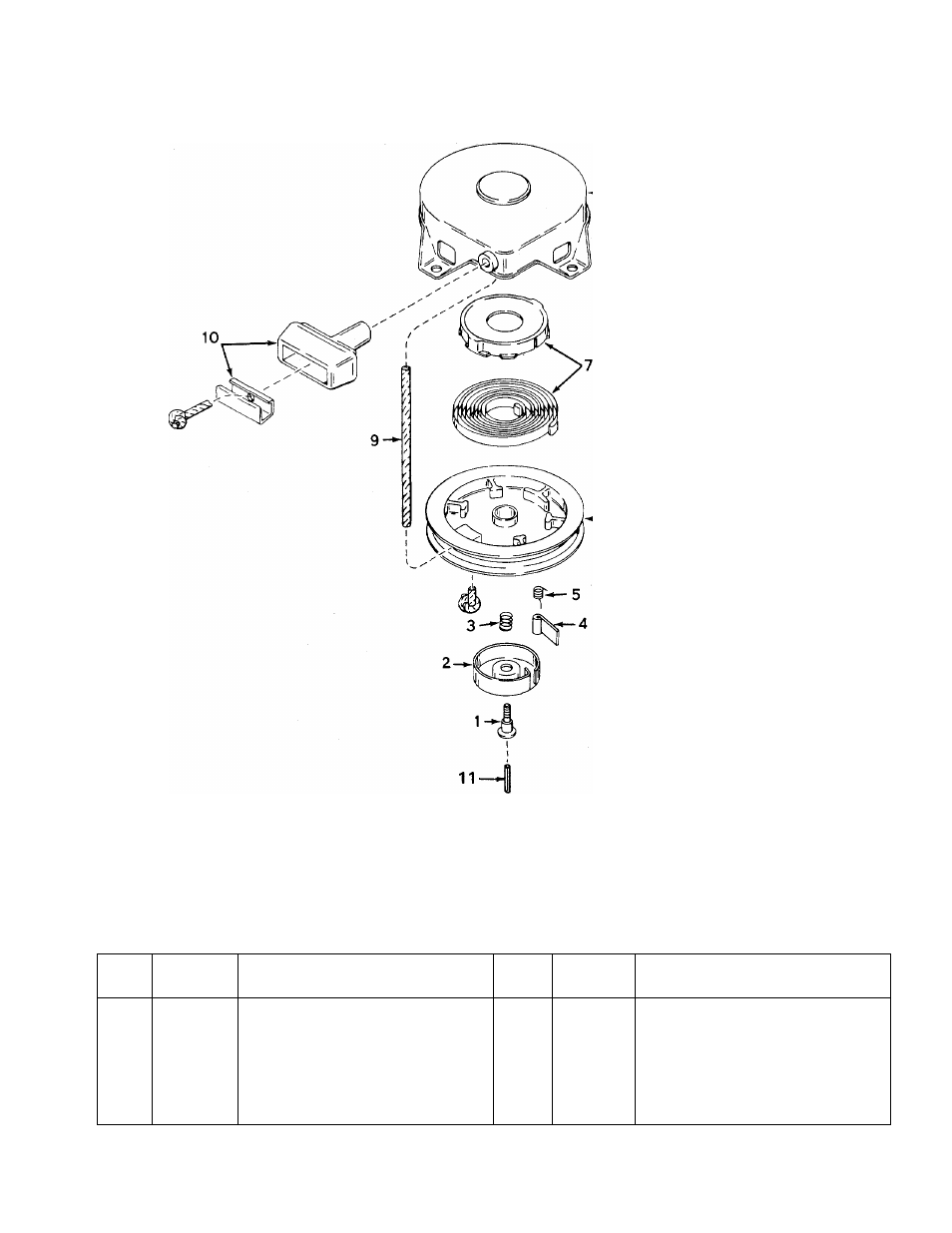

REWIND STARTER NO. 590420

Ref.
No.

Part

No.

Part Name

Ref.

No.

Part

No.

Part Name

590420

Starter, Rewind

7

590414

Spring & Keeper Assy.

1

590409

Screw, Retainer

8

590415

Housing Assy., Starter

2

590410

Retainer, R.H.

9

590386

Rope, Starter

3

590411

Spring, Brake

10

590387

Handle Assy., Starter

4

590148

Dog, Starter

11

590459

Pin, Centering

5

590412

Spring, R.H. dog

6

590413A

Pulley
