Craftsman 247.88110 - Manual (Page 34)

Ref.
No.
Part
No. Part Name
Ref.
No.
Part
No. Part Name

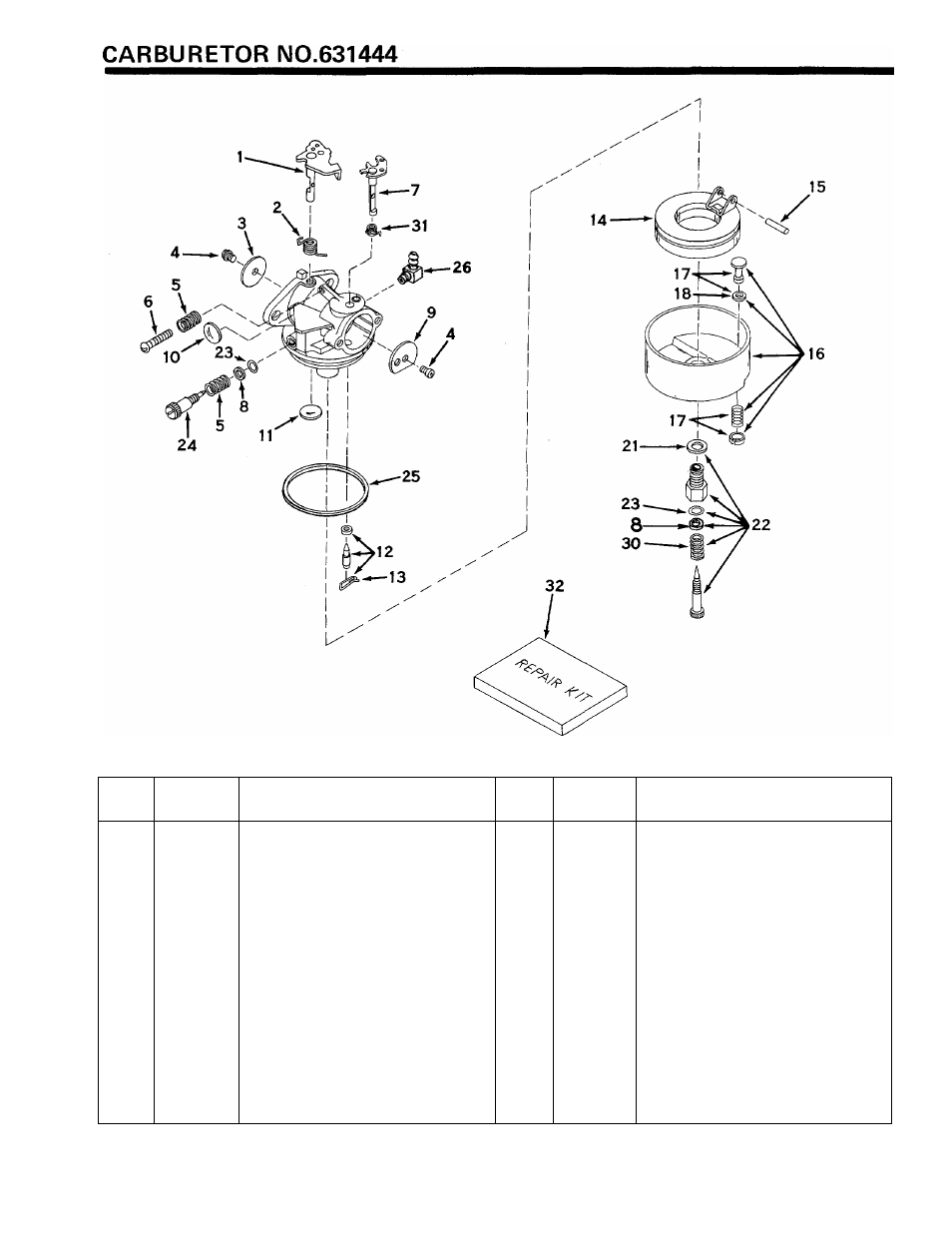

631444 Carbxiretor 16 631025 Bowl & Drain Assy., Float
1 31834 Shaft & Lever Assy., Throttle (Inch No. 17)
2 631279 Spring, Throttle return 17 27136A Plunger Assy., Drain (Inch No.
3 631036 Shutter, Throttle 18)
4 650506 Screw, 4-40 x 3/16 18 *27554 Gasket, Drain plunger
5 630766 Spring, Idle regulating screw 21 27110 Gasket, Bowl-to-body
6 650417 Screw, Idle regulating 22 *631026 Adjustment Screw Assy., Main
7 630973 Shaft & Lever Assy., Choke (Inch Nos. 8, 21, 23 & 30)
8 630739 Washer, Flat 23 *630740 “O” Ring, Adjustment screw
9 631037 Shutter, Choke 24 *631078 Screw, Idle adjustment
10 *630748 Plug, Welch 25 *631028 Gasket, Bowl-to-body
11 *631027 Plug, Welch 26 631445 Fitting, Fuel inlet
12 *631021 Inlet Needle, Seat & Clip Assy. 30 630738 Spring, Main adjustment screw
(Inch No. 13) 31 630821 Spring, Choke return
13 631022 Clip, Inlet needle 32 631029 Repair Kit (Incl. items
14 631023 Float, Carburetor marked*)
15 *631024 Shaft, Float
