W HEATHEART - P OST P OUNDER 3. A SSEMBLY
S2000 M ODEL 3.3. I NSTALLING THE PTO K IT
IM15 R1 29
3.3.1. I
NSTALLING THE
PTO K
IT
O
IL
F
ILTER
A
SSEMBLY
1. Connect the oil filter head to the oil filter bracket using two 5/16” x 1” bolts.
2. Secure the filter bracket and oil filter head to the frame assembly with a
U-bolt and two 1/2” nylock nuts (Figure 3.9 shows the mounting location of
the oil filter assembly).
3. Ensure a good seal between the oil filter and the oil filter head by rubbing a
small amount of clean hydraulic oil on the oil filter’s rubber seal. Install the
oil filter by carefully aligning the threads of each part together, and then
rotating the oil filter clock-wise until a tight seal is achieved.

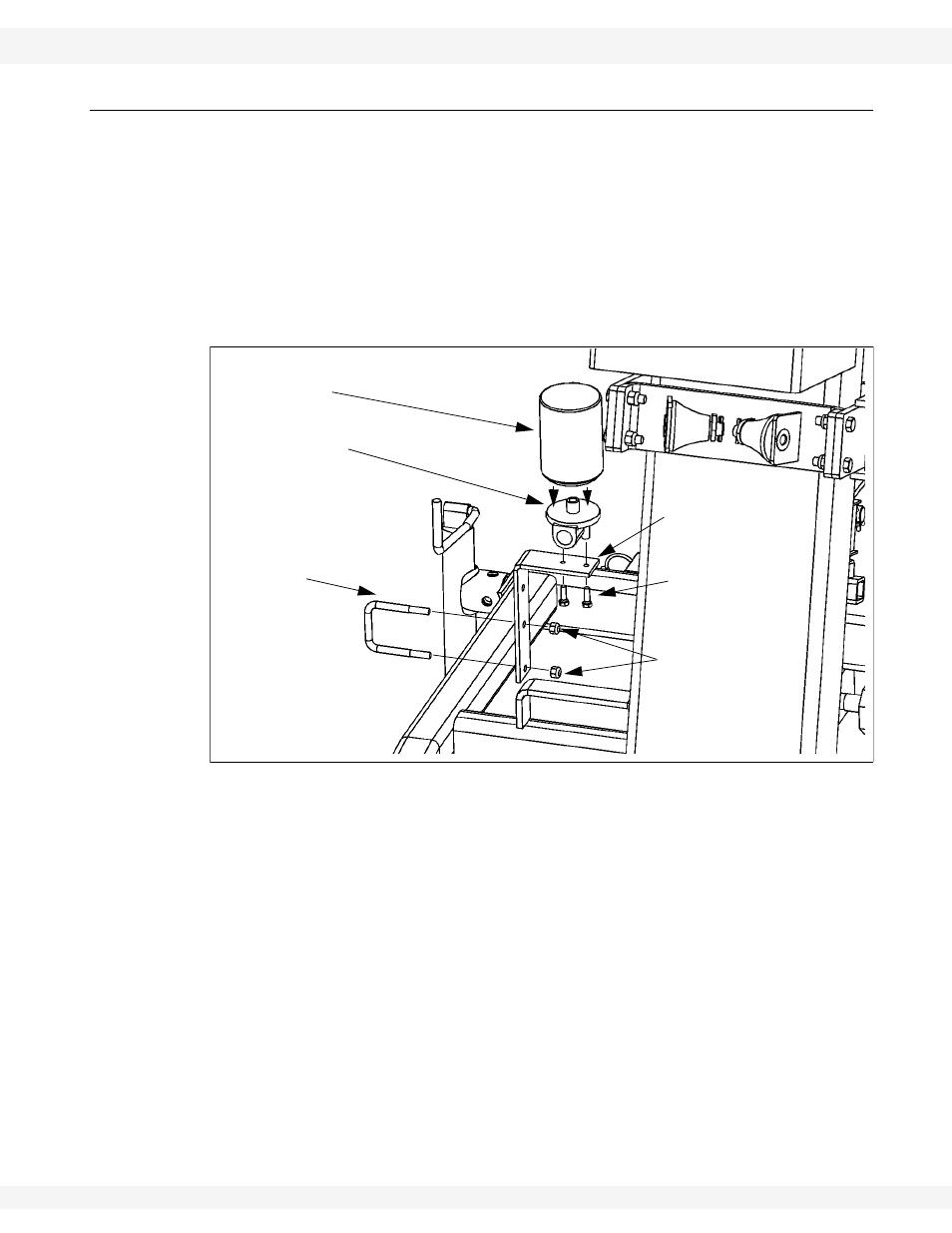

Figure 3.10 Installing the Oil Filter Assembly
OIL FILTER
OIL FILTER HEAD
5/16” X 1” BOLTS
1/2” NYLOCK NUTS
U-BOLT
OIL FILTER BRACKET
