3.3. INSTALLING THE PTO KIT
The optional PTO Kit provides the S2000 Post Pounder with a hydraulic system
that is powered by the tractor’s PTO.
To install the PTO Kit, perform the following procedures in the order that they are
listed:
• “Installing the PTO Kit Oil Filter Assembly” on page 29
• “Installing the PTO Kit Hydraulic Tank” on page 30
• “Installing the PTO Pump Support” on page 32
• “Connecting PTO Kit Hydraulic Hoses” on page 33
• “Filling the Hydraulic Tank” on page 34

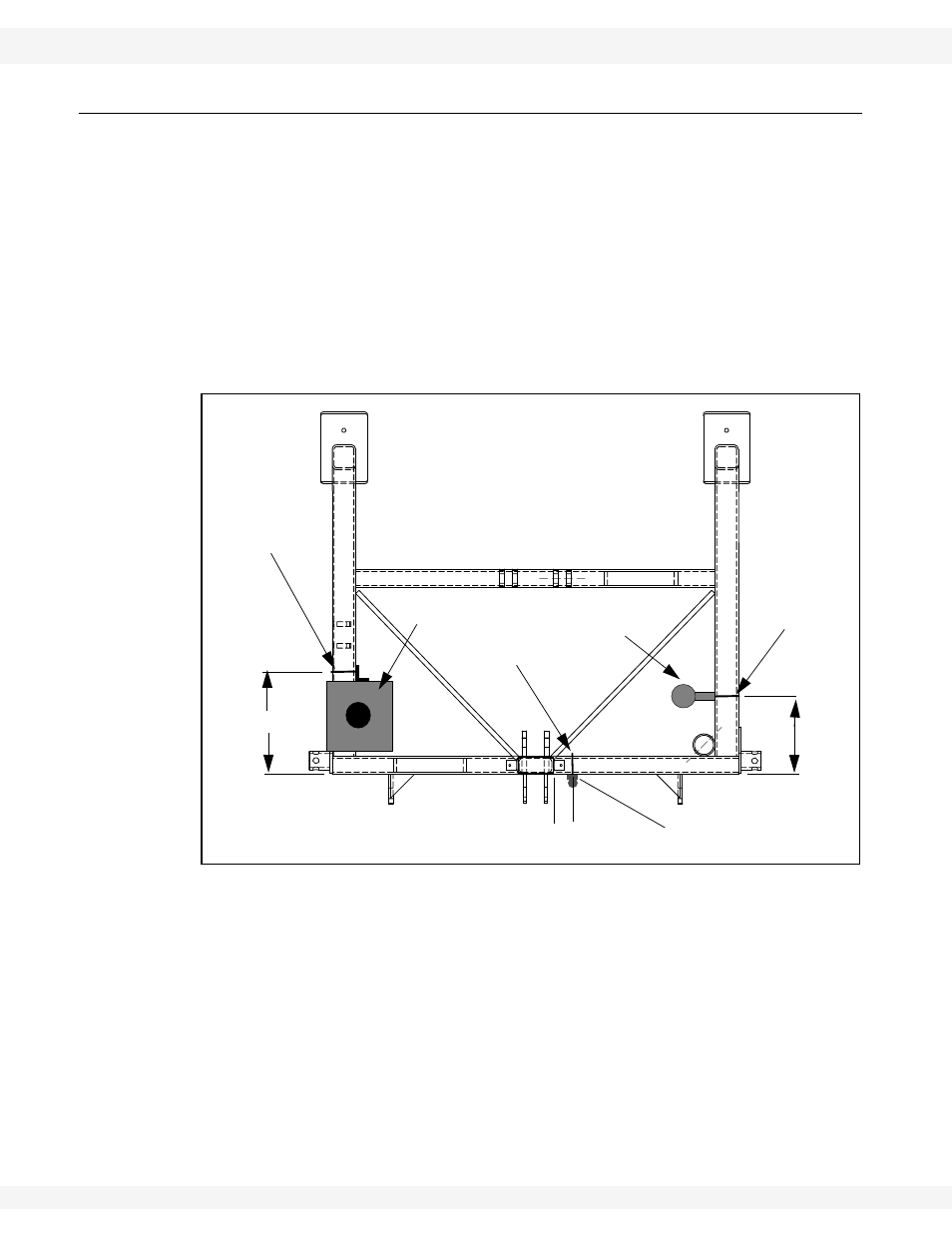

Figure 3.9 PTO Kit, Part Mounting Locations
12”
U-BOLT
9”
U-BOLT
3”
U-BOLT
PTO PUMP
SUPPORT POST
OIL FILTER
ASSEMBLY
HYDRAULIC
TANK
