3. A SSEMBLY W HEATHEART - P OST P OUNDER
3.2. A SSEMBLING THE S2000 P OST P OUNDER S2000 M ODEL
22 IM15 R1
3.2. ASSEMBLING THE S2000 POST POUNDER
Important: Always have two or more people assembling the equipment. Due to the weight of
the components, do not attempt assembly alone.
Important: Lock bars prevent front-back tilt and limit side-to-side tilt of the pounder mast
during transport and storage. Lock bars should also remain in place during
assembly.
To assemble the S2000 Post Pounder, perform the following procedures in the
order that they are listed:
• “Prepare the Frame Assembly” on page 22
• “Connect the Mast Assembly to the Frame Assembly” on page 23
• “Connect the Hugger Arm and Cylinder to The Mast Assembly” on page 25
• “Install Hammer Ballast” on page 26
3.2.1. P
REPARE THE
F
RAME
A
SSEMBLY
1. Temporarily support the frame assembly under the frame near the jack stand
locations.

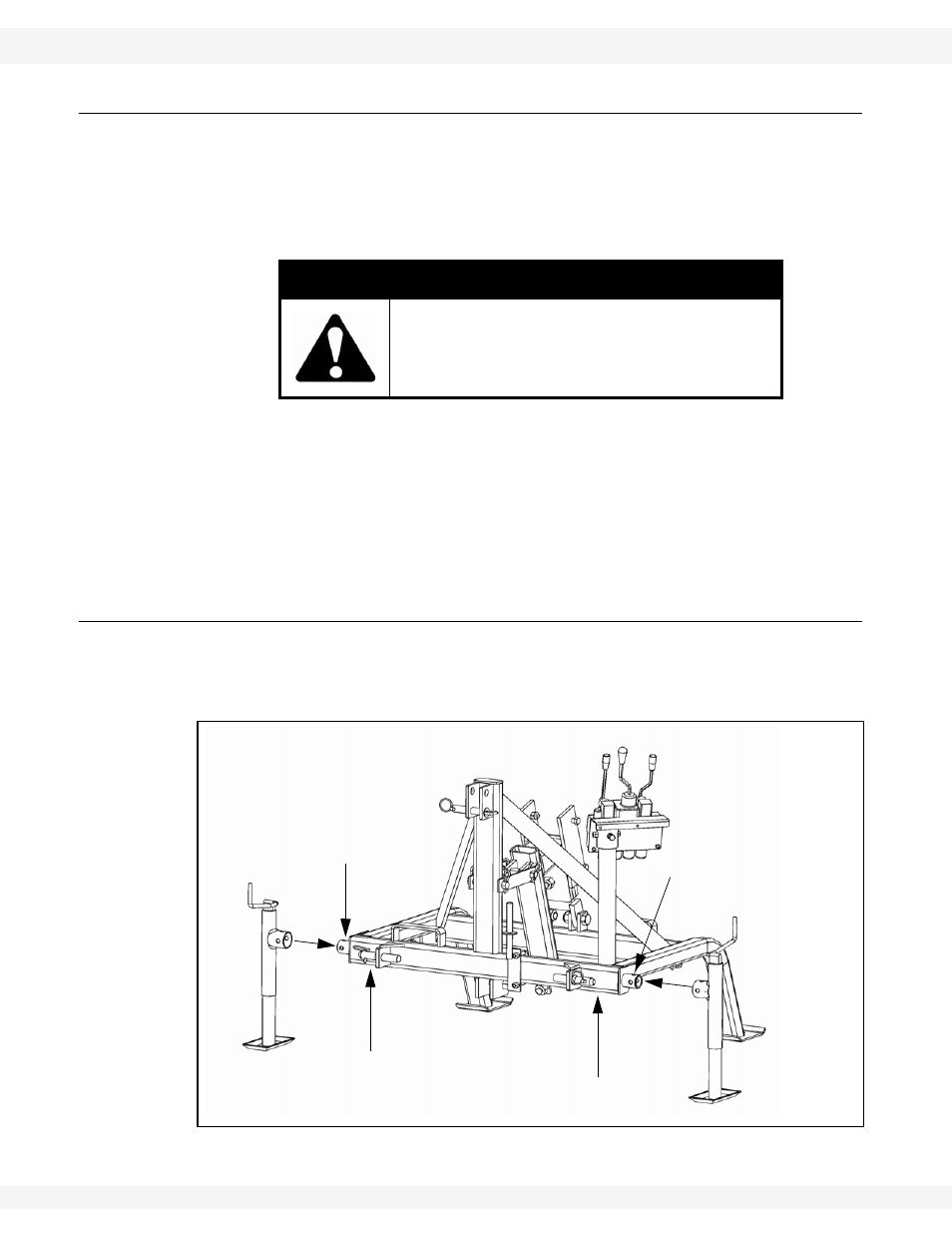

Figure 3.1 Preparing the Frame Assembly
WARNING
Do not attempt assembly without a lifting
device. Components are heavy and present a
crushing hazard which can cause serious
injury or death.
INSERT LOCK PIN
INSERT LOCK PIN
(TEMPORARY SUPPORT)
(TEMPORARY SUPPORT)
