Gradall 524D User Manual
Page 37
522D-524D
MATERIAL HANDLER
Item
Part No.
Qty.
Description Of Part
9108-5049
Ref
QUICK SWITCH OPTION ( includes 9108-
5091 plus items 9,10, &11)
9108-5091
1
QUICK SWITCH ASSY (includes items 1 thru
6, 15 & 16)
1
9108-6152
1
QUICK SWITCH WELDMENT
2
9108-6151
1
PLUNGER WELDMENT
3
9020-7902
1
QUICK RELEASE PIN
4
9103-3038
1
JACK CHAIN, 5" LONG, SIZE 12
5
8863-1509
1
ROLL PIN, 1/4"X2
6
8867-1008
1
LUBE FITTING, STRAIGHT, 1/4-28
7
Ref
SECOND BOOM SECTION (see page 3-2)
8
9103-1136
2
BUSHING
9
9112-1308
1
HEX HD CAPSCREW, 5/8-11X5, GR5
10
9104-1365
1
PIN
11
9112-1309
1
HEX NUT, 5/8-11
12
9116-6062
1
TILT CYLINDER PIN
13
8320-1123
2
HEX HD CAPSCREW, 1/2-13X1, GR8
14
8856-1111
2
WASHER, 1/2
15
8830-1193
1
ROUND HD MACHINE SCREW,
#10-32X1/2
16
8856-1105
1
FLAT WASHER, #10
17
9112-1310
2
WASHER, 5/8
JH
BOOM

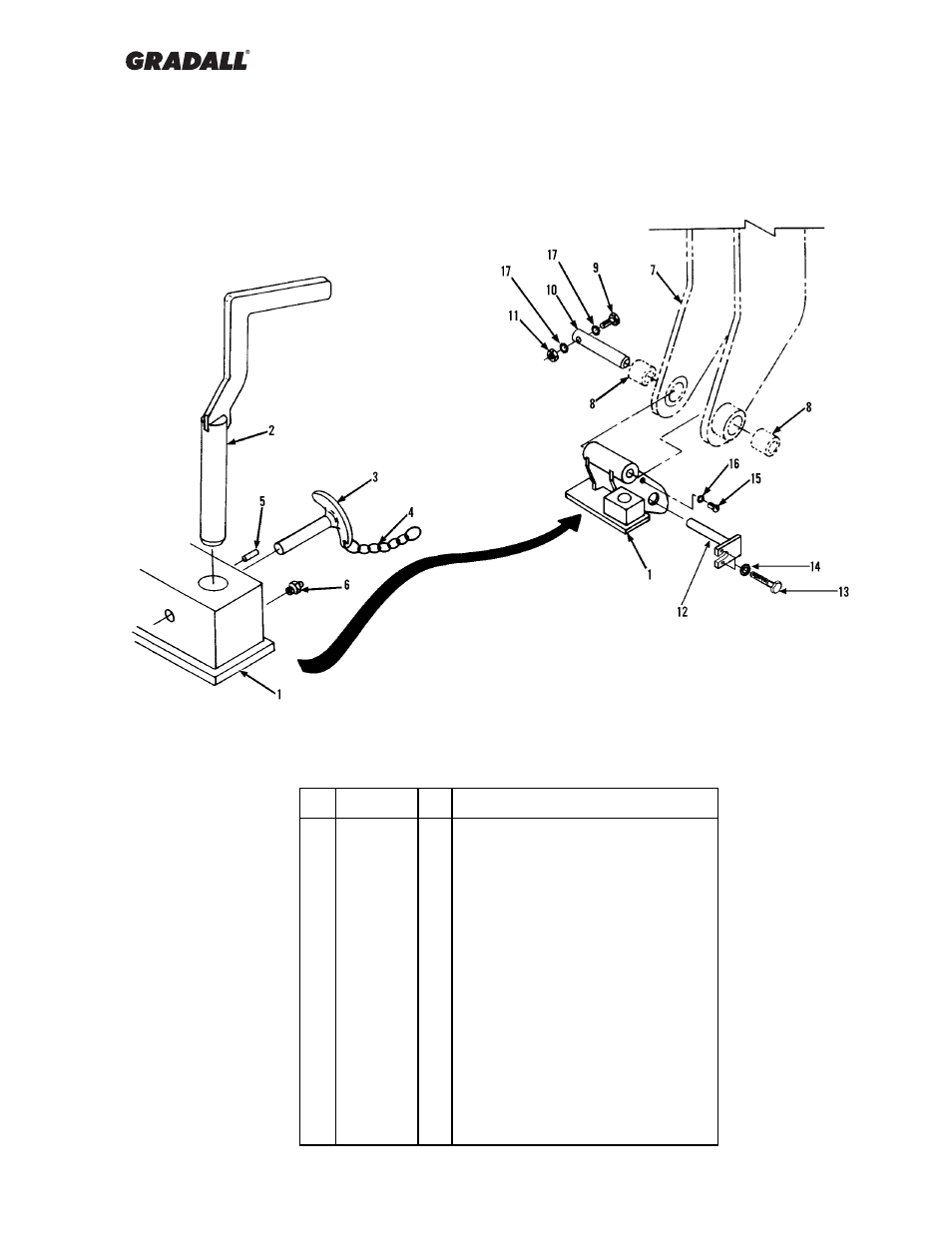

(9108-5049) Quick Switch Option
Starting Serial No. 0277001
Original Issue 1-98
Revised 5-5-98
3-3
*Referenced item 7 and part number on item 14
*
*
