Gradall 524D User Manual
Page 186
522D-524D
MATERIAL HANDLER
13-12
Item
Part No.
Qty.
Description Of Part
9138-5019
1
AUX HYDRAULICS FIELD KIT,
(3 section boom, include all items)
9134-5010
1
REMOTE VALVE CONTROL ASSY,
(includes items 15 thru 19)
1
9002-7187
10
TIE WRAP
2
8866-1065
2
UNION 1/2 TUBE
3
9020-7463
2
CUSHION CLAMP, 3/4
4
8471-8026
2
HOSE ASSY
5
9108-3343
2
LONG ELBOW, 90 DEGREES
6
8866-1348
2
TUBE END REDUCER
7
8866-1407
2
TUBE NUT
8
9108-4280
1
VALVE SECTION ASSY, (includes
items 21, 22, 29, 33, two of 9108-4281
relief - 1500 psi, and item 37 on page
10-7)
9
9108-4203
1
STUD KIT, (see page 10-7)
10
9108-4015
1
SEAL KIT, (see page 10-7)
11
9108-3310
2
ELBOW, 90 DEGREES
12
9136-3045
1
GUIDE PLATE
13
9020-4245
1
FEMALE HYDRAULIC COUPLER
14
9104-3125
1
DUST PLUG
15
9136-6007
1
LEVER BRACKET
16
8820-1012
3
HEX HD CAPSCREW, 1/4-20X2-3/4,
GR5
17
8852-1304
3
HEX LOCKNUT, 1/4-20
18
9130-3019
1
REMOTE VALVE CONTROL
19
9136-3043
1
CONTROL CABLE
20
9112-3062
1
CABLE ADAPTER BONNET
21
8471-8041
2
HOSE ASSY
22
9002-7179
4
BULKHEAD FITTING, 90°
23
9020-6194
AR
TRIM-LOK
Item
Part No.
Qty.
Description Of Part
24
1440-2248
AR
3M ADHESIVE
25
8471-8281
2
HOSE ASSY
26
9112-3016
1
AUX HOSE SHEAVE
27
9108-1326
1
HOSE REEL SUPPORT
28
9020-3040
1
THRUST WASHER
29
8858-1320
1
RETAINING RING EXT.
30
8320-1123
3
HEX HD CAPSCREW, 1/2-13X1
31
9002-7471
3
HARDENED FLATWASHER, 1/2
32
9112-6080
1
HOSE GUARD
33
8820-1034
2
HEX HD CAPSCREW, 3/8-16X7/8,
GR5
34
8855-1011
2
LOCKWASHER, 3/8
35
8856-1109
2
FLATWASHER, 3/8
36
8471-8280
2
HOSE ASSY
37
9020-7463
8
CUSHION CLAMP
38
9020-6199
AR
TRIM-LOK, (13”)
39
9112-1125
1
BULKHEAD BRACKET
40
8855-1010
2
LOCKWASHER, 5/16
41
8820-1019
2
HEX HD CAPSCREW, 5/16-18X7/8,
GR5
42
8850-1005
2
HEX NUT, 5/16-18
43
9112-6008
2
HOSE TAKE UP WELD
44
9112-3054
2
COMPRESSION SPRING
45
9112-1134
2
SPRING RETAINER
46
8850-1008
2
HEX NUT, 1/2-13
47
8850-1108
2
HEX JAM NUT, 1/2-13
48
9112-3061
2
BULKHEAD FITTING
49
8871-2305
2
PIPE BUSHING, 1/2X1/4
50
9020-4244
1
MALE HYDRAULIC COUPLER
51
9104-3126
1
DUST CAP
C
C
VIEW C-C
TO CLAMPS ON
RIGHT SIDE OF
CHIMNEY PLATE.
4”
MPC 3766-AK
OPTIONAL EQUIPMENT

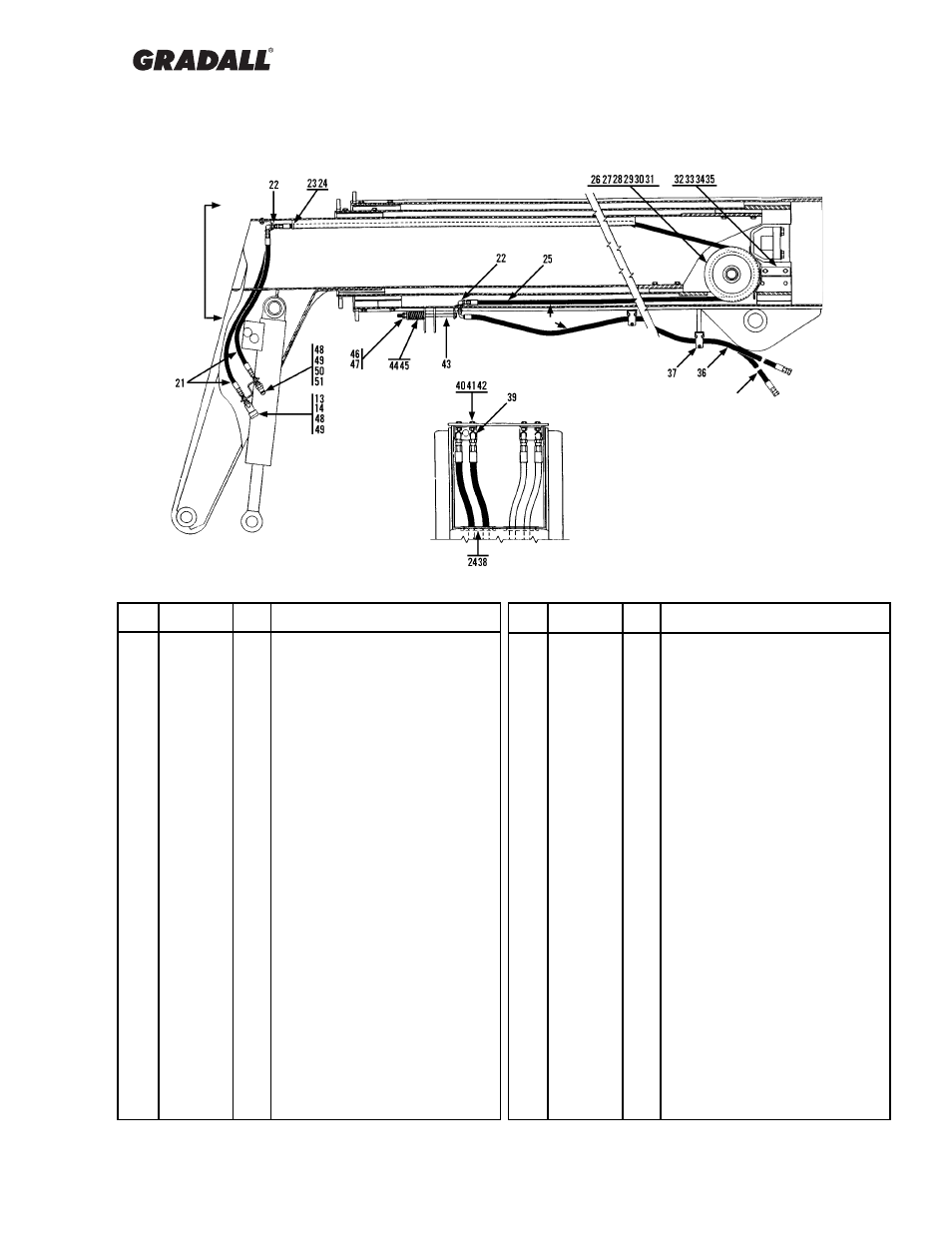

(9138-5019) Auxiliary Hydraulics Field Kit
3 SECTION BOOM
Original Issue 1-98
Revised 1-10-01
NOTE: IF YOUR MACHINE CAME WITH AUXILIARY HYDRAULICS ASSY(9108-5126)
USE AUXILIARY HYDRAULICS FIELD KIT (9138-5019) FOR SERVICE.
* Revised illustration and items 13 & 14; removed items 52 & 53 .
*
*
