Page 161
524D
MATERIAL HANDLER
12-1

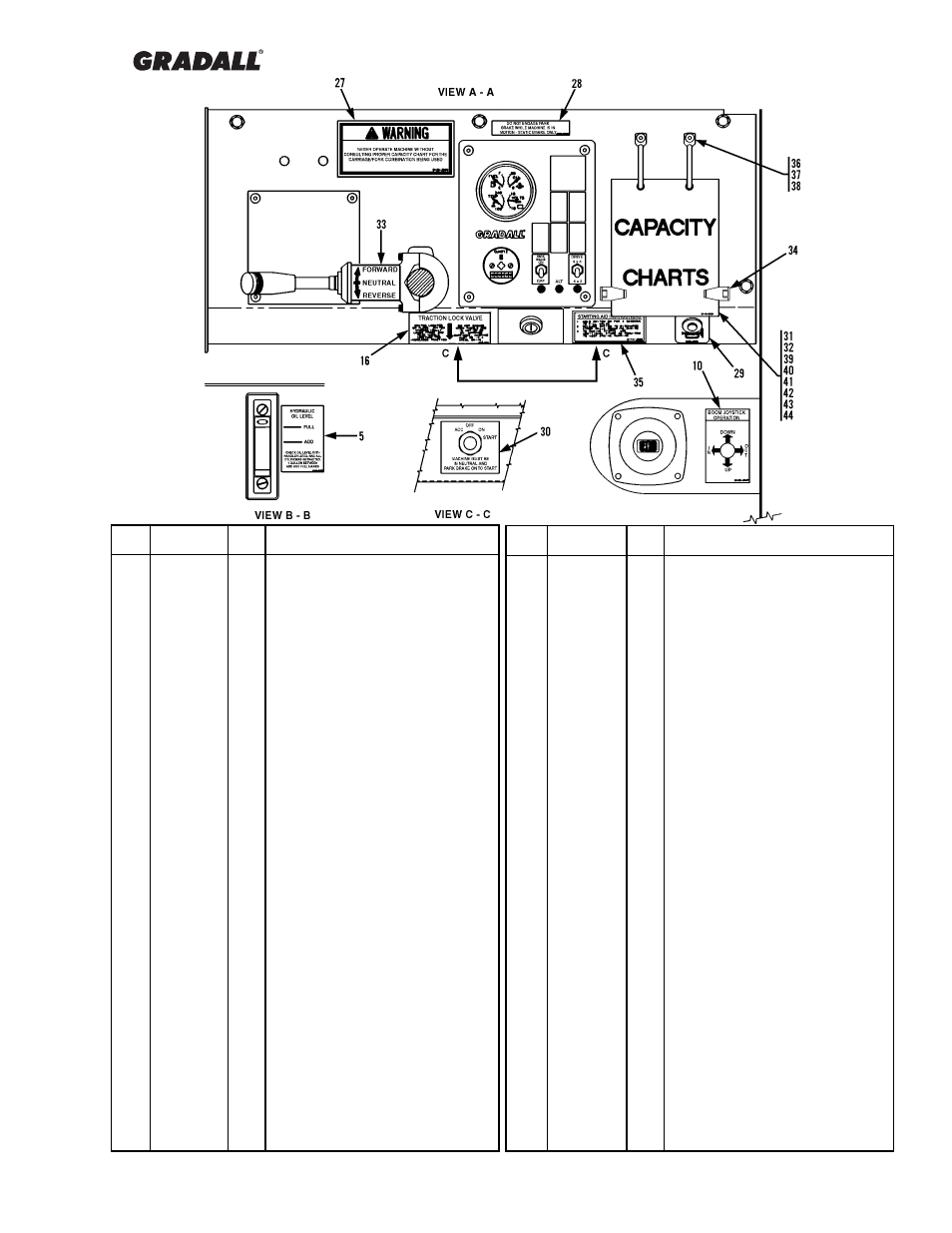

MISCELLANEOUS
Cab & Frame Decals
Starting Serial No. 0277001
Original Issue 1-98
Revised 6-22-01
Item
Part No.
Qty.
Description Of Part
22
9114-3282
3
WARNING DECAL
23
9114-3280
1
WARNING DECAL
24
9114-3281
1
WARNING DECAL
25
9114-3285
1
INSTRUCTION DECAL
26
9114-3284
1
WARNING DECAL
27
9132-3030
1
WARNING DECAL
28
9114-3182
1
PARK BRAKE DECAL
29
9103-3089
1
HORN DECAL
30
9114-3120
1
INSTRUMENT PANEL DECAL
31
9116-3184
1
CAPACITY CHART COVER
32
9138-3009
1
CAPACITY CHART (2 section boom,
std.)
9138-3007
1
CAPACITY CHART (3 section boom,
opt.)
9138-3008
1
CAPACITY CHART (3 section boom,
opt.)
33
9116-3028
1
SHIFTER DECAL
34
9136-3070
2
HINGED CLAMP
35
9114-3202
1
INSTRUCTION DECAL
36
9116-3087
2
LOAD CHART BRACKET
37
8830-2125
2
RD HD MACHINE SCREW, 1/4-20x5/8
38
8850-1616
2
HEX NUT, 1/4-20
39
9138-3027
1
LOAD CHART-SLOP PILER (std.)
9138-3016
1
LOAD CHART-SLOP PILER (opt.)
40
9138-3010
1
LOAD CHART-STD CARRIAGE W/
WINCH (2 section boom, std.)
41
9138-3036
1
LOAD CHART-6' MAST (std.)
9138-3028
1
LOAD CHART-6' MAST (opt.)
42
9138-3035
1
LOAD CHART-100 DEGREE SWING
CARRIAGE (std.)
9138-3020
1
LOAD CHART-100 DEGREE SWING
CARRIAGE (opt.)
43
9138-3029
1
LOAD CHART-10' TRUSS BOOM
(opt.)
44
9138-3077
1
LOAD CHART - PERSONNEL
PLATFORM, (std.)
9138-3078
1
LOAD CHART - PERSONNEL
PLATFORM, (opt.)
Item
Part No.
Qty.
Description Of Part
9108-5133
1
524D DECAL KIT, WHITE (std.)
(includes all items on page 12-1 except
18 thru 20, 31, 32, 34 thru 43 and all
items on page 12-2 except items
4 thru 7)
(starting s/n 0277001 thru
0277594)
9138-5035
1
524 DECAL KIT, WHITE(std.)
(includes all items on page 12-1 except
18 thru 20, 31, 32, 34 thru 43, and all
items on page 12-2 except items
4 thru 7)
(starting s/n 0277595)
1
8060-3026
1
CAUTION DECAL
2
9114-3286
1
WARNING PLATE
3
9108-3492
2
OIL WARNING DECAL
4
9114-3288
1
HYDRAULIC OIL PLATE
5
9116-3130
1
OIL LEVEL DECAL
6
9114-3162
1
TEST PORT DECAL
7
8060-3022
1
DANGER DECAL
8
9055-3027
1
WARNING DECAL
9
9133-3028
1
SERVICE INSTRUCTION DECAL
(starting s/n 0277001 thru 0277594)
9133-3044
1
SERVICE INSTRUCTION DECAL
(starting s/n 0277595)
10
9130-3047
1
BOOM OPR. DECAL
11
8364-1675
1
GRADALL DECAL (white)
12
9108-3317
1
TILT DECAL
13
9108-3318
1
SWAY DECAL
14
9114-3292
1
DIPSTICK DECAL
15
7733-3027
1
MADE IN USA DECAL
16
9108-3314
1
TRACTION DECAL
17
9055-3028
1
WARNING DECAL
18
9114-4430
1
SERIAL TAG
19
9116-4094
1
ROPS WARNING DECAL
20
9138-3003
1
SERIAL NO. AND ATTACHING
PLATE (on inside of cab std.)
9138-3002
1
SERIAL NO. AND ATTACHING
PLATE (on inside of cab opt.)
21
9114-3283
1
WARNING DECAL
*
PCN 010240-SVC
* Revised illustration & part number on items 8, 17 & 32; added item 44.
*
*
*
