Page 222
524D
MATERIAL HANDLER
13-36
OPTIONAL EQUIPMENT
(9138-5025) Stabilizer Option
3 SECTION BOOM ONLY
Original Issue 1-03

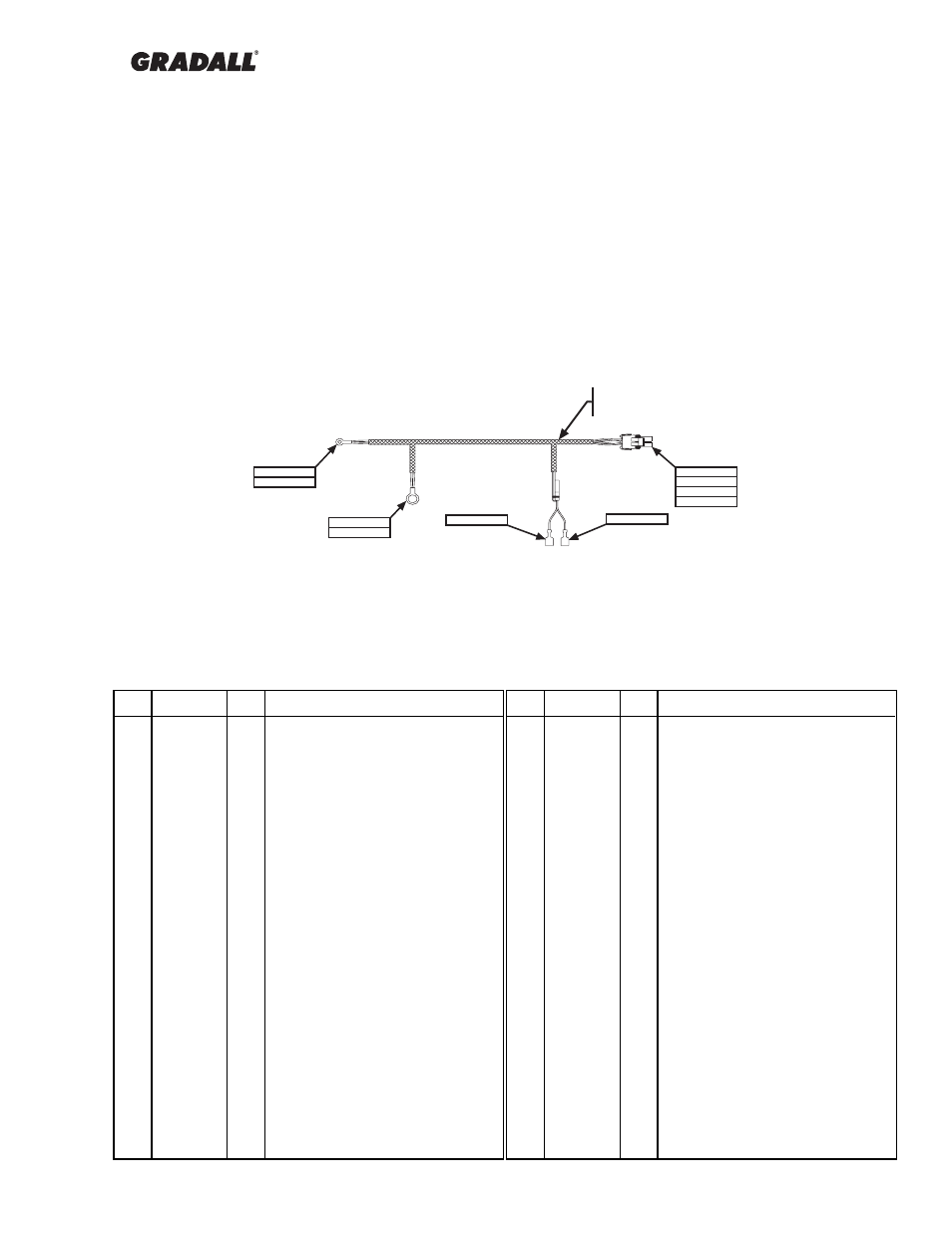

STABILIZER WIRING
Item
Part No.
Qty.
Description Of Part
21
8662-1230
2
SUPPORT CLAMP
22
7714-3006
2
WHIZ-LOCKNUT, 5/16
23
9136-5037
1
STABILIZER SENSOR ASSY, (includes
items 39 thru 43)
24
9114-1260
1
BRACKET
25
8830-1093
2
ROUND HD MACHINE SCREW,
#10-24X3/4
26
8855-1007
2
LOCKWASHER, #10
27
8856-1001
4
FLAT WASHER, 3/16
28
9104-3199
2
SQUARE NUT
29
9002-7187
8
TIEWRAP
30
9002-1705
1
SUPPORT CLAMP
31
9136-3081
1
STABILIZER HARNESS
32
9138-6008
1
FRAME WELDMENT, (includes items
34 thru 37)
33
8866-2065
1
ELBOW, 90 DEGREES, (includes
item 38)
34
9138-1027
1
BRACKET
35
8505-1384
2
WELD STUD, 5/16-18X1
36
9133-6012
1
STABILIZER VALVE BRACKET
37
9116-1083
1
STABILIZER LUG
38
8859-1205
5
O-RING
39
9114-3155
1
PROXIMITY SENSOR SWITCH
40
8096-3062
1
WEATHERPACK SHROUD, (4 WIRE)
41
8096-3069
4
MALE PIN TERMINAL
42
8096-3066
4
CABLE SEALS
43
9105-3419
1
TIEWRAP
44
9116-3019
2
BUSHING
Item
Part No.
Qty.
Description Of Part
9138-5025
1
STABILIZER OPTION, (includes all
items)
1
9116-6013
1
REAR AXLE WELDMENT, (includes
item 44)
2
Ref
STABILIZER CYLINDER, (see
page13-37 for details)
3
8866-2085
3
ELBOW, 45 DEGREES, (includes
item 38)
4
8866-2006
1
CONNECTOR, (includes item 38)
5
9116-1269
2
KEEPER
6
8856-1111
6
FLAT WASHER, 1/2
7
8820-1065
2
HEX HD CAPSCREW,1/2-13X1, GR5
8
9116-6062
2
PIN WELDMENT
9
8820-1066
4
HEX HD CAPSCREW, 1/2-13X1-1/4,
GR5
10
8855-1013
4
LOCKWASHER, 1/2
11
8867-1001
1
LUBE FITTING, STRAIGHT, 1/8
12
8471-8287
1
HOSE ASSY
13
8471-7556
1
HOSE ASSY
14
8471-8631
1
HOSE ASSY
15
8866-2244
1
SWIVEL NUT BRANCH TEE, 1 TUBE
16
9103-3230
1
TUBE END REDUCER
17
8320-1073
2
HEX HD CAPSCREW, 3/8-16X4-1/2,
GR5
18
8855-1011
2
LOCKWASHER, 3/8
19
8850-1006
2
HEX NUT, 3/8-16
20
Ref
STABILIZER VALVE, (see page 10-23
for details)
GND-8
STAB-SW2
GND-7
GND-8
STAB-PWR
STAB-SW1
STAB-SW2
GND-7
29
31
STAB-PWR
STAB-SW1
MBC
