524D
MATERIAL HANDLER
ELECTRICAL

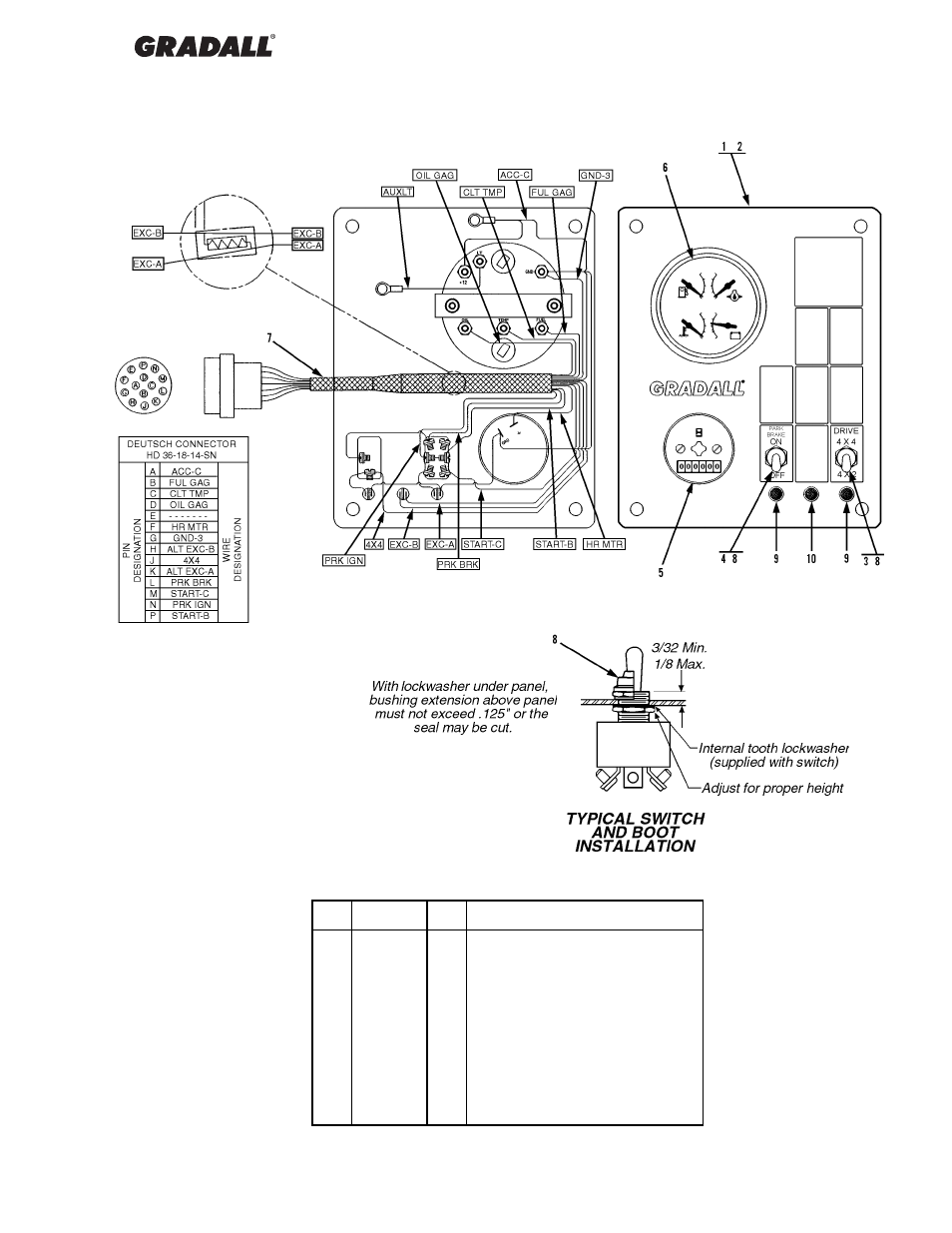

(9114-3331) Gauge Panel Assembly
Starting Serial No. 0277001 thru 0277119
Original Issue 1-98
Revised 8-1-99
11-4 JH
Item Part No. Qty. Description Of Part
9114-3331 1 GAUGE PANEL (includes all items)
1 9136-4004 1 PANEL ASSY (includes front & back
plates, acrylic lens & std. labels)
2 9136-4005 1 RUBBER BOOT
3 7738-3467 1 TOGGLE SWITCH
4 9114-3114 1 PARK BRAKE SWITCH
5 9136-4006 1 HOURMETER
6 9136-4007 1 4-IN-1 GAUGE (oil, fuel, temp, volts)
7 9136-4008 1 WIRE HARNESS
8 7738-3470 2 BOOT
9 9114-3128 2 AMBER INDICATOR LIGHT
10 9114-3127 1 RED INDICATOR LIGHT
*
* Changed Starting S/N in upper right-hand corner; changed Description on item 8 and revised illustration.
