Gradall 524D - Manual (Page 103)

522D-524D
MATERIAL HANDLER
Item Part No. Qty. Description Of Part
1 Ref ELBOW, 90 DEGREES (swivel nut)
(see page 6-1 for details)
2 Ref TEST FITTING (see page 6-1 for
details)
3 Ref SWIVEL NUT BRANCH TEE,
3/8 TUBE (see page 6-1 for details)
4 8471-9115 1 HOSE ASSY
5 8471-8759 1 HOSE ASSY
6 Ref ELBOW, 90 DEGREES (includes
item 7) (see page 7-4 for details)
7 Ref O-RING (see page 7-4 for details)
8 Ref SOLENOID VALVE ASSY (see page
10-12 for details)

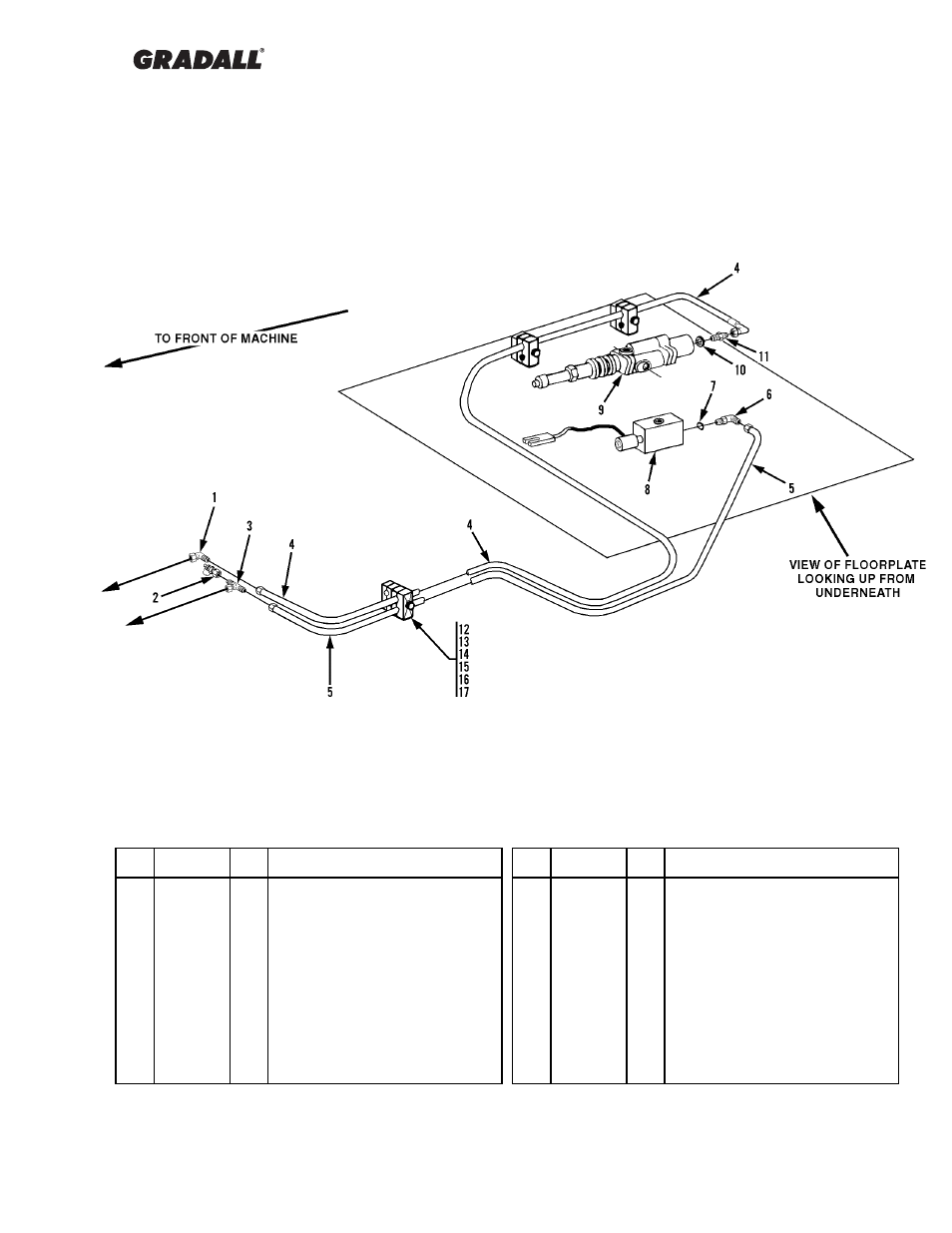

BRAKES
Service/Parking Brake Lines
Starting Serial No. 0277001
Original Issue 1-98
JH 8-1
TO PARK BRAKE
(see page 6-1)
TO SERVICE BRAKE
(see page 6-1)
Item Part No. Qty. Description Of Part
9 Ref BRAKE VALVE ASSY (see page 10-
11 for details)
10 Ref COPPER GASKET (see page 7-4 for
details)
11 Ref STRAIGHT THREAD CONNECTOR
(see page 7-4 for details)
12 7713-3137 1 COVER PLATE
13 9121-3002 1 CLAMP SET
14 7732-3029 1 CLAMP SET
15 8820-1023 1 HEX HD CAPSCREW, 5/16-18x1-3/4
GR5
16 7713-3306 1 STACK BOLT
17 7713-3390 1 SAFETY CLIP
