❑ Installer Installation and Calibration
16 AUTOFIll-E Installer / User Guide
p/n: 029-0020-81-0
AutoFill Selector Power Harness
❑ Power Harness, 18” (0.5m)
length, p/n: 513-0270-04-0
Before connecting this cable,
inspect the seals in the connec-
tors. If the seals are missing or
damaged water can enter the
connector causing pin and termi-
nal corrosion, resulting in possi-
ble system failure. (See Figure
3-3: “AutoFill Selector Harness
Connection.”)
This line must be fused, con-
nected to a 12VDC power, and
minimum 20 amp circuit to meet
NFPA specifications.
IMPORTANT !
DO NOT CONNECT POWER SUPPLY HARNESS TO A “LOAD SHEDDING
SYSTEM.”
Relay Assembly Power Harness
❑ Relay Assembly Power Harness, 18” (0.5m) length, p/n: 513-0270-04-0
Before connecting this harness, inspect the seals in the connectors. If the
seals are missing or damaged, water can enter the connector causing pin
and terminal corrosion, resulting in possible system failure. (See Figure 3-
4: “Relay Assembly Power Connection,” on page 17.)
This line must be fused, connected to a 12VDC power, and minimum 20
amp circuit to meet NFPA specifications.

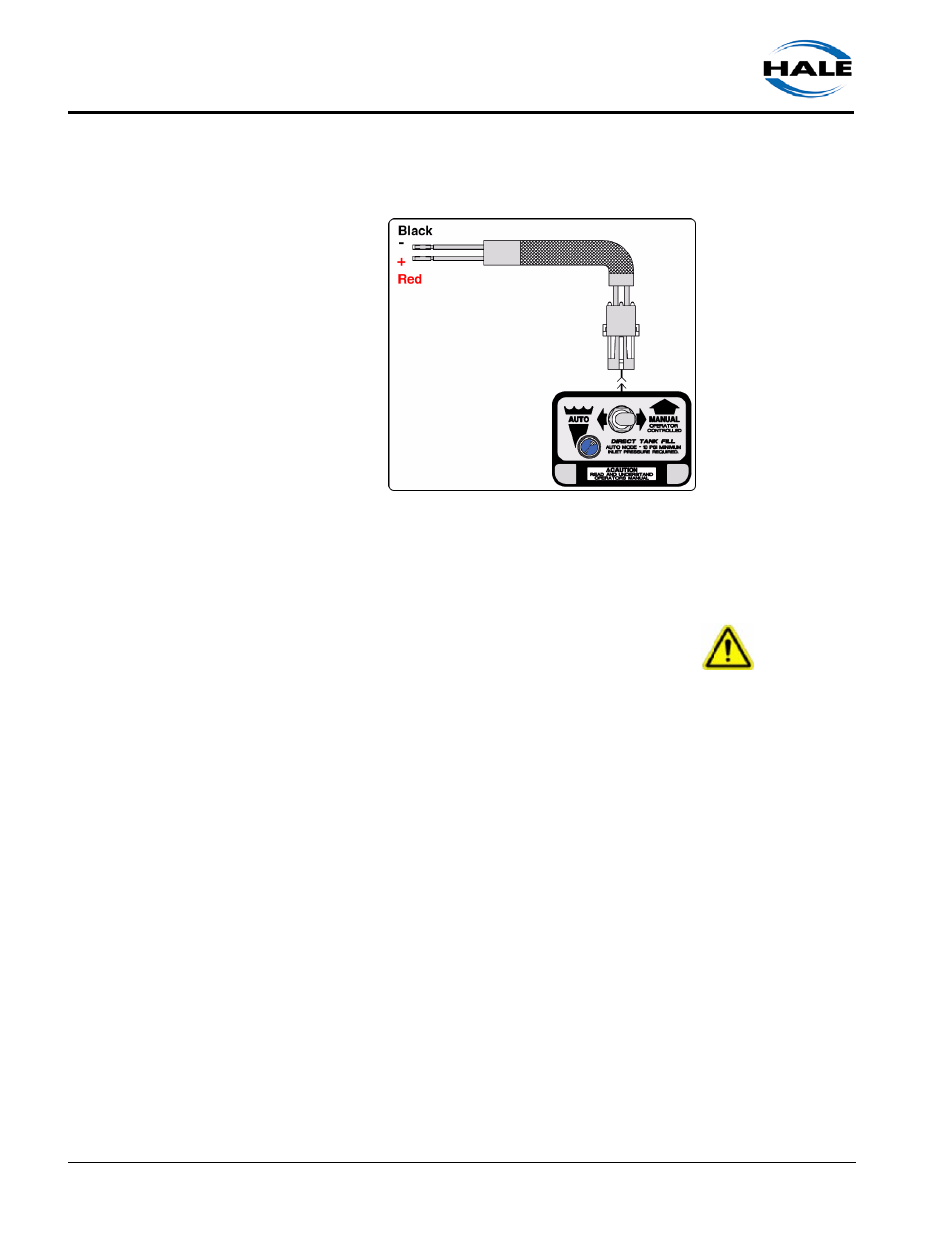

Figure 3-3: AutoFill Selector
Harness Connection
