17
• Innovative downdraft system is compatible
with virtually all self-contained cooktops.
• Sleek, trim styling complements any
cooktop style or color.
• Automatically raises into position with
the touch of a button. Disappears flush
with cooktop surface.
• Space-saving design lets you make
the most of precious, under-counter
cabinet space.
• Infinitely adjustable speed control is flush
with the side of the unit; inconspicuous, yet
easy to reach and simple to use.
• Model 27000 Blower discharges right, left
or down and slides side-to-side
to ease installation.
• These units are not for
installations behind ovens.
* External unit utilizes model 332H Exterior-mounted blower. In-Line blower sold separately.
** Cooktops, countertops and cabinets vary in dimension and support systems depending upon manufacturer.
These factors may impact the Eclipse’s ability to fit with every worktop/cabinet combination. Specifications
subject to change without notice.
† The model 28000 requires transitioning from 3 1 ⁄
4
" x 10" to 10" round for connection to the External blower.
• Stainless Steel cover standard. White, Bisque or Black optional.

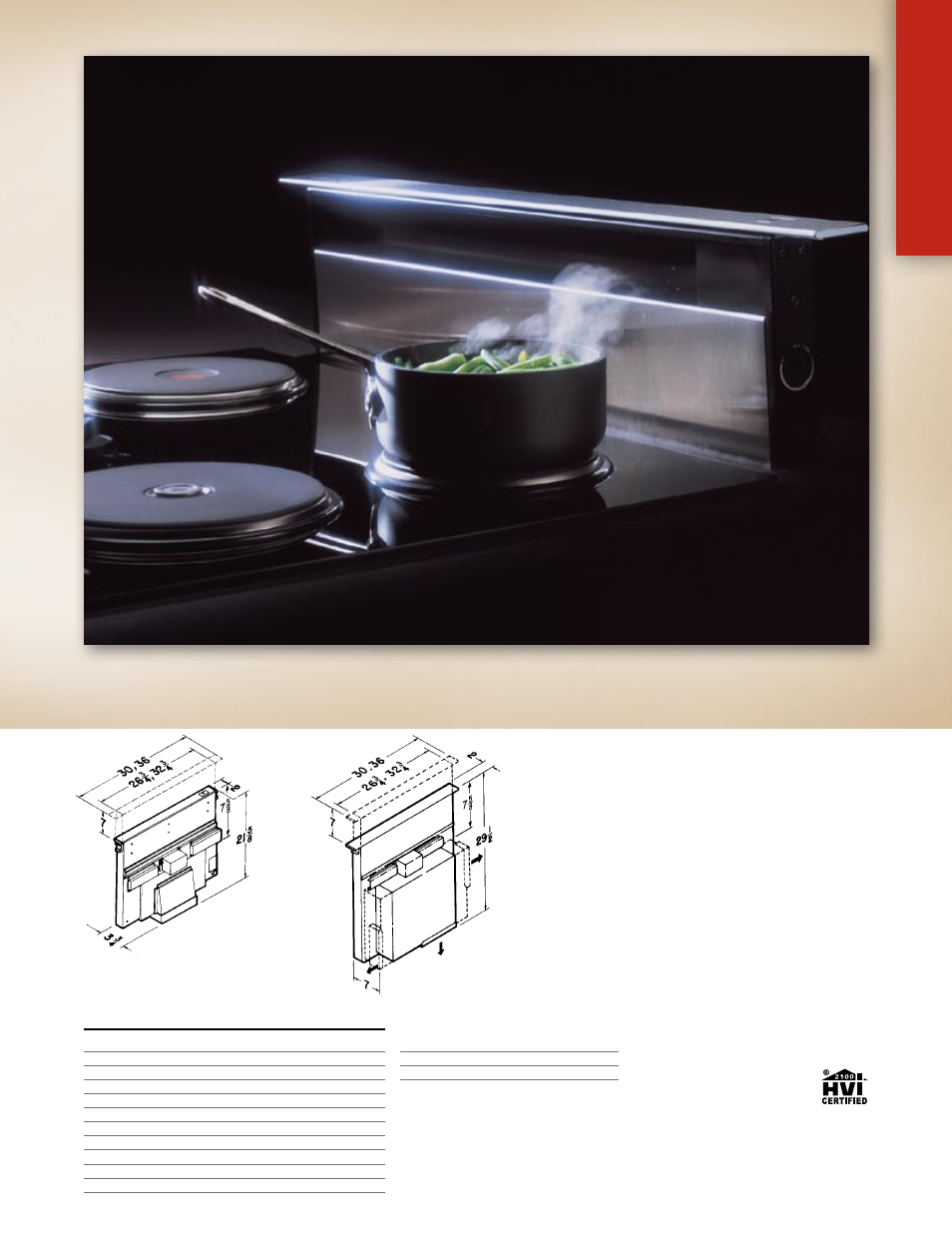

Model 28000
Use with 900 CFM Exterior
blower (Model 332H) or
In-Line blower. Model 27000
Includes 500 CFM
Internal blower.
Broan 27000/28000 Series
Convenient options help assure a custom fit.
For the unique demands of cooktops in islands and peninsulas.
Do
wndrafts
Eclipse
Range Hood Specifications **
TO FIT NOMINAL
COOKTOP SIZE MODEL DESCRIPTION COVER COLOR •
30" 273003 Internal Blower Unit Stainless Steel
36" 273603 Internal Blower Unit Stainless Steel
30" 283003 External Blower Unit* Stainless Steel
36" 283603 External Blower Unit* Stainless Steel
30" 273001C Optional Cover White
36" 273601C Optional Cover White
30" 273002C Optional Cover Bisque/Biscuit
36" 273602C Optional Cover Bisque/Biscuit
30" 273023C Optional Cover Black
36" 273623C Optional Cover Black
MODEL VOLTS AMPS CFM DUCT
27000 120 4 500 3¼" x 10"
28000 120 6.0 max * 3¼" x 10" †
